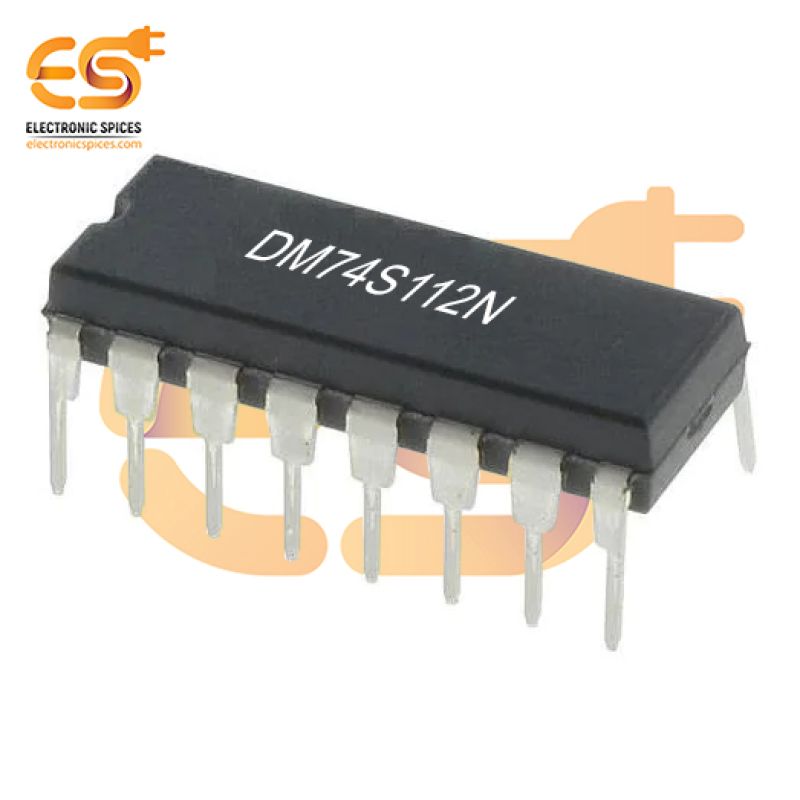

DM74S112N Flip Flop 2 Element JK-Type Logic IC 1 Bit Negative Edge 16-PDIP

Specification:-

  • Package: PDIP16 (0.300", 7.62mm)
  • Logic Type: J-K Type Flip-Flop
  • Input Type: Single-Ended
  • Polarity: Inverting/Non-Inverting
  • Propagation Delay Time: 12 ns
  • High Level Output Current: - 1 mA
  • Low Level Output Current: 20 mA
  • Supply Voltage - Min: 4.75 V
  • Supply Voltage - Max: 5.25 V
Available in Pack Of:

SKU: FW8518A

MRP Rs. 740.00
Rs. 500.00 (Incl. Tax)
Rs. 423.73 (+18% GST extra)
Rs. 423.73 / pack of 1 = Rs. 423.73 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied

DM74S112N Flip Flop 2 Element JK-Type Logic IC 1 Bit Negative Edge 16-PDIP

The DM74S112N is a dual-element JK-type flip-flop logic IC that operates on the negative edge of the clock signal. It contains two independent JK flip-flops within a single package, providing versatile functionality for sequential logic circuits. In a JK flip-flop, the J and K inputs determine the output state, with the flip-flop toggling when both inputs are high at the time of a negative edge clock transition. It offers a memory function, where the output stores the last state until the next clock pulse, making it ideal for use in state machines, counters, and other sequential applications. Each flip-flop in the DM74S112N can be individually controlled, allowing independent operation within the same circuit. The IC features 16 pins in a PDIP (Plastic Dual In-line Package), suitable for through-hole mounting in standard circuit boards. The flip-flops are triggered by the negative edge of the clock signal, ensuring synchronized operation across multiple flip-flops in the system. This logic IC is widely used in timing circuits, frequency dividers, shift registers, and memory storage applications. Its negative-edge triggering provides precise control over timing, making it ideal for high-speed and low-power digital systems. The DM74S112N is a reliable and efficient solution for designers requiring flexible, edge-triggered flip-flop elements in their logic circuits.

Feature:-

  • Positive-Edge Triggere
  • JK-Type Flip-Flop
  • Low Power Consumption
  • Robust Construction
  • Suitable for use in data registers
