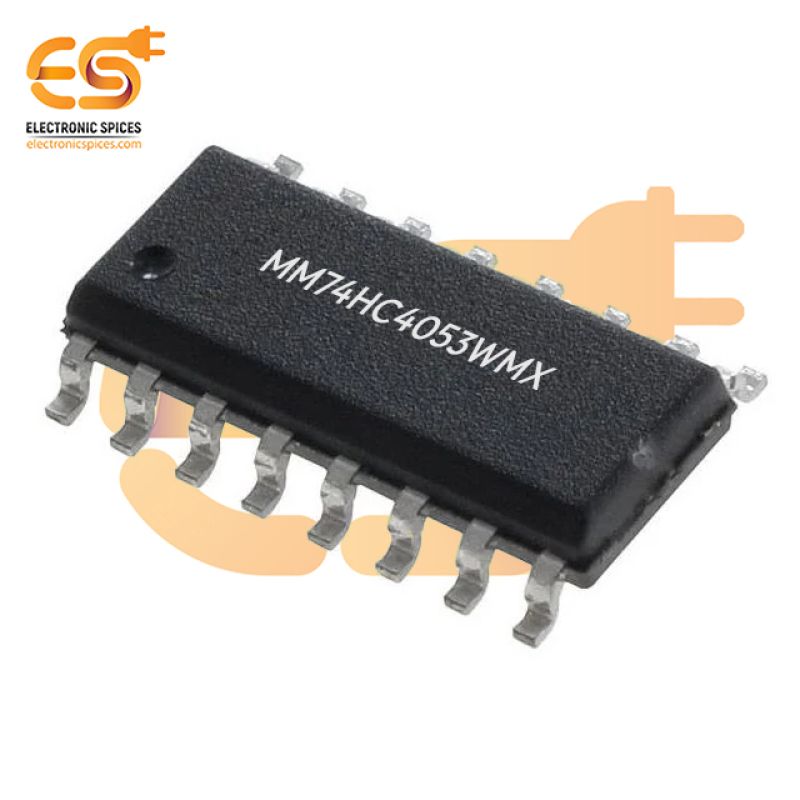

MM74HC4053WMX Interface 3-Circuit Switch IC 2:1 100 Ohm 16-SOIC

MM74HC4053WMX Interface 3-Circuit Switch IC 2:1 100 Ohm 16-SOIC

The MM74HC4053WMX is a 3-channel analog switch IC, designed for use in digital and analog signal routing applications. It is a 2:1 multiplexer/demultiplexer configuration, meaning it allows the selection of one of two possible input channels to pass through to the output. This functionality makes it ideal for switching signals in systems requiring precise control of data flow, such as in signal processing, communication systems, and audio/video applications. With an operating voltage range of 2V to 6V, the MM74HC4053WMX is compatible with both TTL and CMOS logic levels, offering flexibility in interfacing with various components. The IC features a low on-resistance (typically around 100Ω) and is designed to handle high-speed switching for precision and efficiency. The MM74HC4053WMX comes in a 16-SOIC package, a small surface-mount form factor that is easy to integrate into compact circuit boards. The 3-channel switch functionality allows for multiple signal routing options, and its low power consumption makes it suitable for battery-operated devices and energy-efficient systems. Additionally, it has built-in ESD protection for enhanced durability in environments prone to voltage spikes or static electricity.

Features:-

• Very fast response time
• Low incremental surge resistance
• They are very lightweight and tough
• Excellent clamping capability
