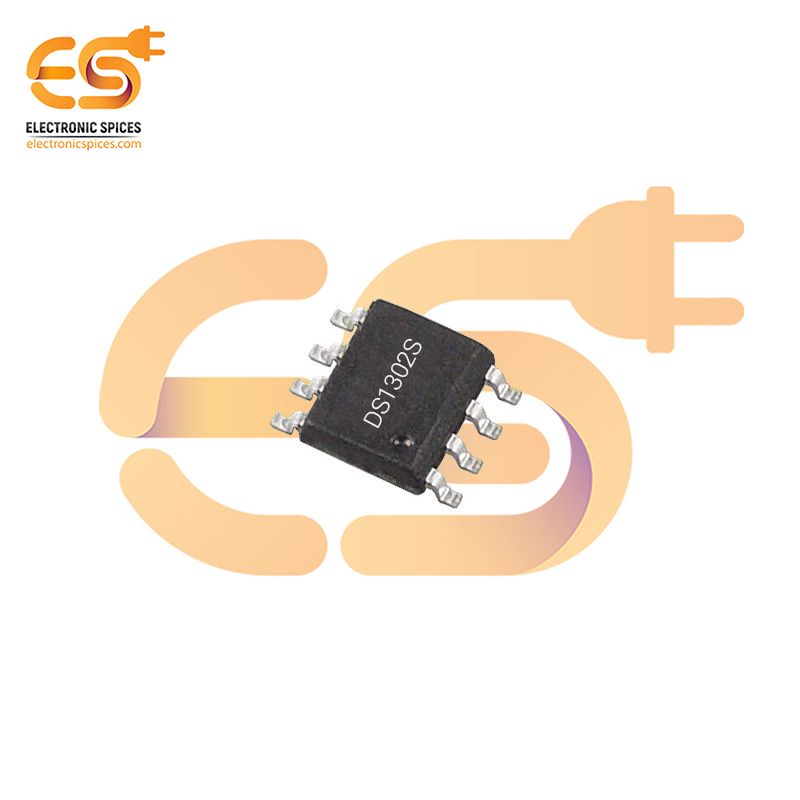

DS1302S Real Time Clock (RTC) IC Clock/Calendar 31B 3-Wire Serial 8-SOIC
Specification:-
- Package: SOIC8 (0.209", 5.30mm)
- Number of pins: 24 pin
- Mounting Style: SMD/SMT
- Supply Current-Max: 1.28 mA
- Supply Voltage-Max: 5.5 V
- Supply Voltage-Min: 2 V
- Supply Voltage-Nom: 3.3 V
- Clock Frequency-Max: 0.032 MHz
SKU: GJ8470A
DS1302S Real Time Clock (RTC) IC Clock/Calendar 31B 3-Wire Serial 8-SOIC
The DS1302S Real-Time Clock (RTC) IC is a low-power clock/calendar solution, designed for applications requiring precise timekeeping with minimal energy consumption. Housed in a compact 8-pin SOIC (Small Outline Integrated Circuit) package, it offers efficient time and date tracking along with essential features for robust performance. This RTC tracks seconds, minutes, hours, days, dates, months, and years, with automatic leap-year correction valid up to the year 2100. It uses a 3-wire serial interface, making it easy to integrate with microcontrollers and other digital systems while minimizing I/O pin usage. The DS1302S also includes a dual power supply capability, seamlessly switching between the primary supply and a backup battery, ensuring continuous operation during power outages. Key features include 31 bytes of battery-backed SRAM, allowing for nonvolatile storage of user data, and trickle-charge circuitry for rechargeable batteries or supercapacitors, extending backup power longevity. Its low standby current and wide voltage range make it suitable for energy-sensitive applications.
Features:-
- High-Speed Performance
- Low Power Consumption
- Wide Operating Voltage Range
