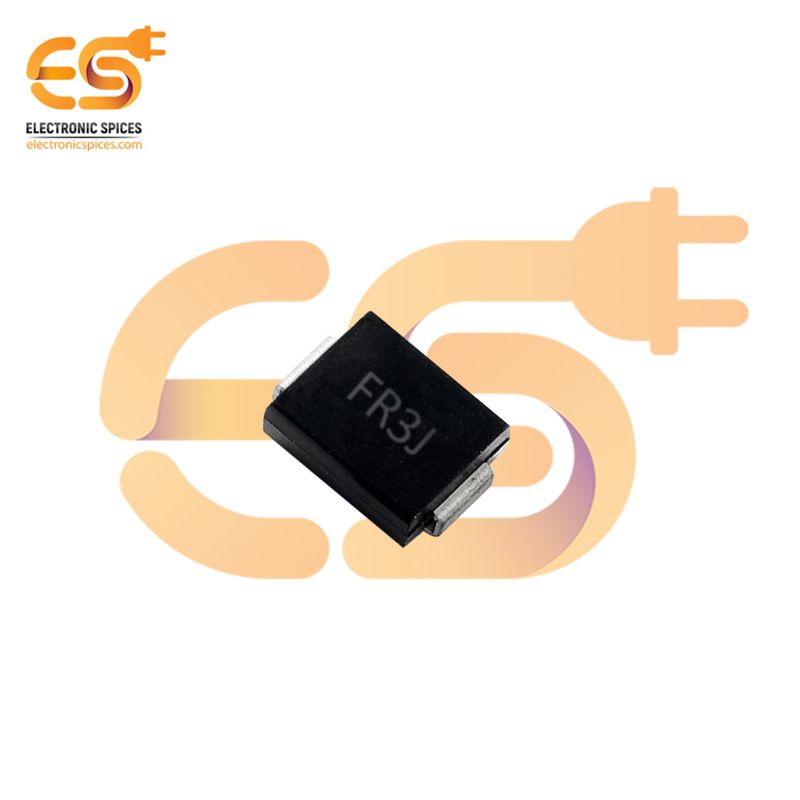

FR3J 600V ,Surface Mount Fast Recovery Rectifiers Pack of 5pcs
Specification:-
- Package : SMB(G)/SMC(G)
- Maximum respective peak reverse voltage : 600v
- Maximum average rectified current : 3.0A
- Forward peak surge [email protected] single half sine-wave : 100A
- Maximum reverse current : 10µa
- Maximum reverse recovery time : 250ns
SKU: AO8541E
FR3J 600V ,Surface Mount Fast Recovery Rectifiers Pack of 5pcs
An assortment of current-handling capabilities for a variety of applications are provided by the FR3J 600V Surface Mount Fast Recovery Rectifiers, which are surface mount rectifiers. For low voltage applications, these devices are an excellent choice due to their rapid recovery and minimal forward voltage loss. A thin layer of silicon is deposited on top of an aluminum substrate to create the rapid recovery rectifiers. Forward voltage loss is exceptionally low. For use with single or dual voltages, these Surface Mount Fast Recovery Rectifiers are engineered. Switching power supplies, DC-DC converters, and power supplies are among the many applications in which they are ideal. Inverters, converters, power supplies, freewheeling diodes, and telecommunications devices that require rapid switching rectification. Being a fantastic substitute for diodes, these rectifiers feature a rapid recovery time that functions as a diode.
Features
- Fast switching for high efficiency
- Low Forward Voltage Drop
- Glass-passivated chip junction
- Fast reverse recovery time
