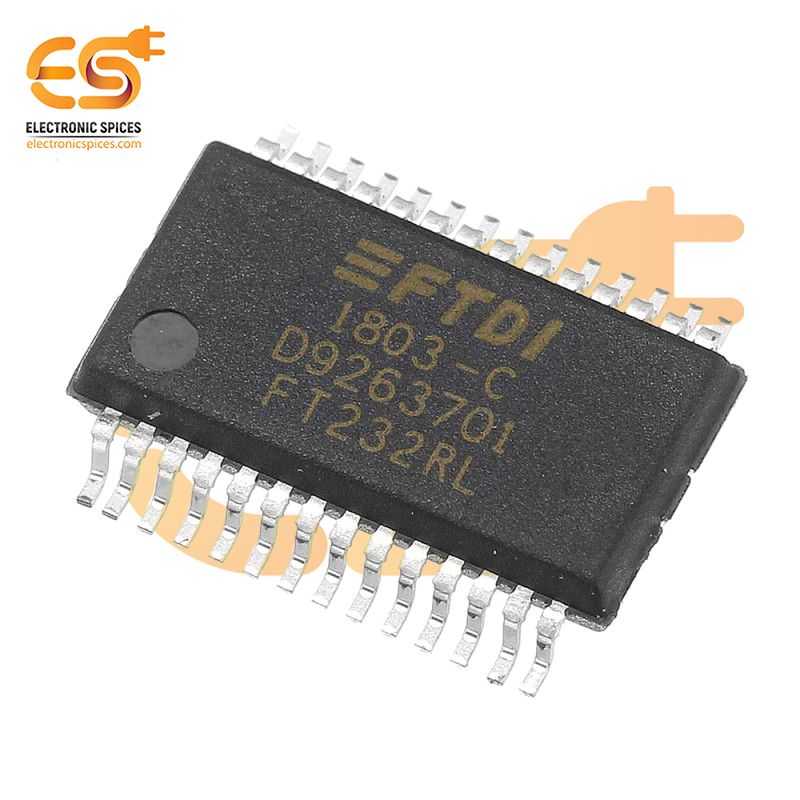

FT232RL USB to Serial UART Interface SMD IC SSOP-28 Package)
Specification:-
- VCC Supply Voltage: -0.5 to +6.00 V
- DC Input Voltage – USBDP and USBDM: -0.5 to +3.8 V
- DC Output Current – Outputs: 24 mA
- Storage Temperature: -65 to 150 °C
- Ambient Temperature (Power Applied): -40 to 85 °C
SKU: HK8524A
FT232RL USB to Serial UART Interface SMD IC (SSOP-28 Package)
The FT232RL is a USB to Serial UART interface IC, providing a reliable and simple solution for connecting devices with UART interfaces to USB ports. Packaged in a compact SSOP-28 form factor, the FT232RL eliminates the need for detailed USB protocol programming by offering a straightforward serial UART interface. This IC is USB 2.0 Full-Speed compliant and supports baud rates up to 3 Mbps for efficient data transfer. It features an onboard EEPROM for user-customizable settings such as Vendor ID (VID), Product ID (PID), serial number, and other parameters. Integrated support for signal conversion includes RXD, TXD, RTS, CTS, DTR, DSR, DCD, and RI pins. The FT232RL also incorporates advanced features such as integrated crystal oscillators and a voltage regulator, reducing the need for additional components.
Features:-
- Low power consumption
- Compact and Easy Integration
- Low operating and USB suspend current
- Low USB bandwidth consumption
- On-Chip Clock Generator
