Specification:-
- Package: PDIP16 (0.300", 7.62mm)
- Out Swing-Min: 10 V
- Supply Current-Max: 15 mA
- Supply Voltage-Max: 5.5 V
- Supply Voltage-Min: 4.5 V
- Supply Voltage-No : 5 V
- Receiver Hysteresis: 500 mV
SKU: NJ8539A

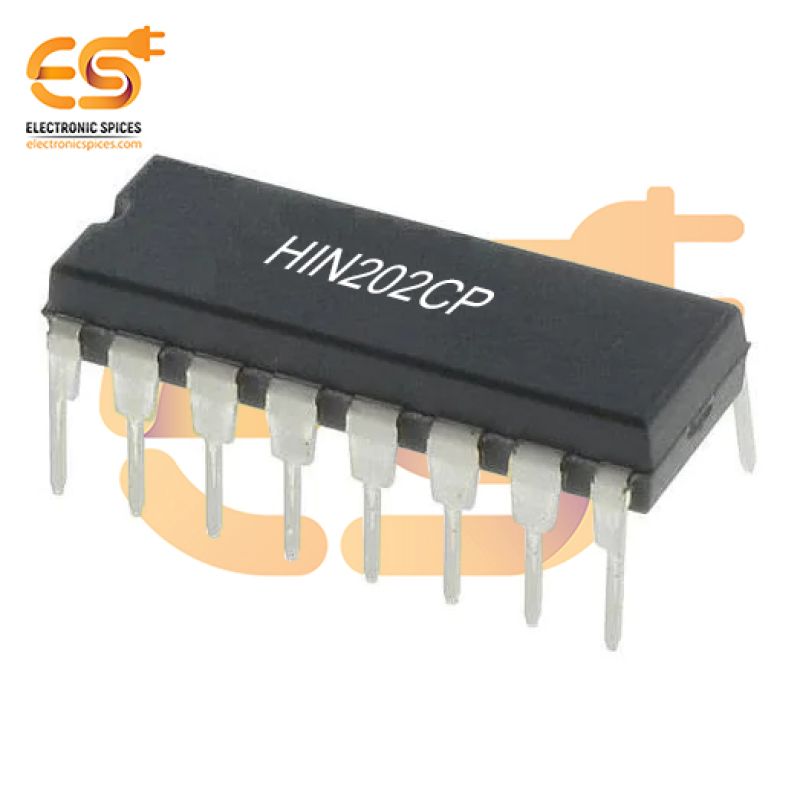

HIN202CP 2/2 Transceiver Full RS232 Interface IC 16-PDIP
The HIN202CP is a high-performance, full RS232 interface IC that provides reliable bidirectional data transmission for serial communication systems. This transceiver IC is designed to meet the voltage and current requirements of the RS232 standard, enabling communication between microcontrollers, computers, and peripheral devices. The HIN202CP supports both transmitting and receiving data at full voltage levels for RS232 communication, ensuring robust signal integrity and error-free communication. It features a 2/2 configuration, meaning it has two drivers and two receivers, capable of simultaneously handling bidirectional data flow. With its 16-pin PDIP (Plastic Dual In-line Package), the HIN202CP is well-suited for easy integration into existing designs. The IC operates within a wide supply voltage range (±5V to ±15V), providing flexibility for a variety of applications, from industrial controls to computer peripheral communication. Its low power consumption and high noise immunity make it ideal for systems that require reliable long-distance data transmission.
Features:-
- 2/2 Transceiver (Two drivers and two receivers)
- Full interface support for RS232 voltage levels
- Supports supply voltages from ±5V to ±15V
- 16-pin PDIP for easy integration into through-hole designs
