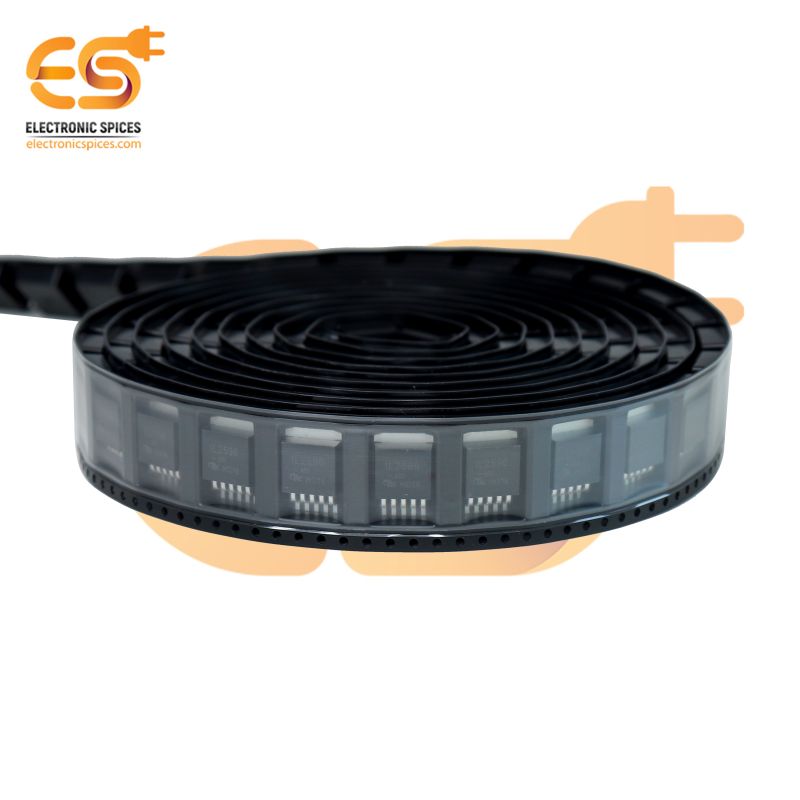

IL2596-ADJD2T-P Switch Voltage Regulator Adjustable Output 5-Pin TO-263 Pack of 5
Specification:-
- Case/Package:TO-263-5L
- Number of Pins: 5
| Max Input Voltage | 12V |
| Max Operating Temperature | 125°C |
| Max Output Current | 500 mA |
| Max Output Voltage | 40V |
| Max Supply Voltage | 12V |
| Min Input Voltage | 1.2V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.2V |
| Min Supply Voltage | 1.8V |
| Operating Supply Current | 400 uA |
| Output Current | 60 mA |
SKU: UV8410A
IL2596-ADJD2T-P Switch Voltage Regulator Adjustable Output 5-Pin TO-263 Pack of 5
The IL2596-ADJD2T-P is a highly versatile switching voltage regulator from Intersil, designed to provide efficient power conversion for a wide range of applications. This component is an adjustable 5-pin regulator housed in a TO-263 package, making it suitable for both compact and larger-scale designs. It is ideal for situations where you need to step down higher input voltages to a lower, stable output voltage with minimal heat generation and energy loss, thanks to its switching regulator design. The IL2596-ADJD2T-P operates by switching on and off at high frequency, transferring energy to an external inductor, which smooths out the voltage to the desired level. It is highly adjustable, allowing you to fine-tune the output voltage via external resistors to meet the needs of various components in your circuit. The typical input voltage range for this regulator is 4.5V to 40V, while the adjustable output voltage can be set from 1.23V to 37V, with a high efficiency of up to 90% depending on load conditions.
Feature:-
- Adjustable Output Voltage
- Wide Input Voltage Range
- High Efficiency
- Current Capacity
- Integrated Protection Features
