LA78040 TV and CRT display vertical output with bus control support 7 pins IC pack of 50pcs
Specification:-
- Improve image quality in TV and CRT display
- Recommended supply voltage : 24V
- Supply voltage range : 16V to 33V
- Power dissipation : 9W
- Thermal resistance : 3 °C /W
- Thermal and short circuit protection system
Available in Pack Of:
SKU: 10475FP
MRP Rs. 1148.85
Rs.
999.00
(Incl. Tax)
Rs.
846.61
(+18% GST extra)
Rs. 846.61 / pack of 50 = Rs. 16.93 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied

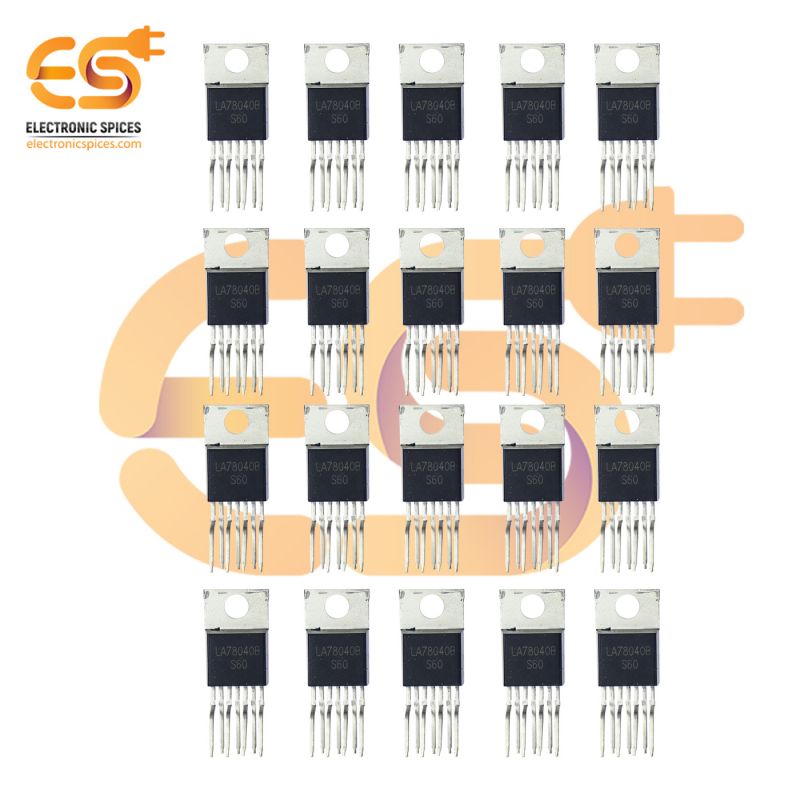

LA78040 TV and CRT display vertical output with bus control support 7 pins IC pack of 50pcs
This is a vertical deflection output IC. It is used for high image quality in TV and CRT displays that supports the use of a bus control system signal-processing IC. It can directly drive the deflection yoke (including the DC component). It provides a maximum deflection current of 1.8Ap-p, it is optimal for small and medium-size CRTs.
Package includes:-
This is the pack of 50 pieces of LA78040 TV and CRT display vertical output with bus control support 7 pin IC
Features:-
- Vertical output circuit.
- Built-in pump-up circuit for low power dissipation.
- Thermal protection circuit
