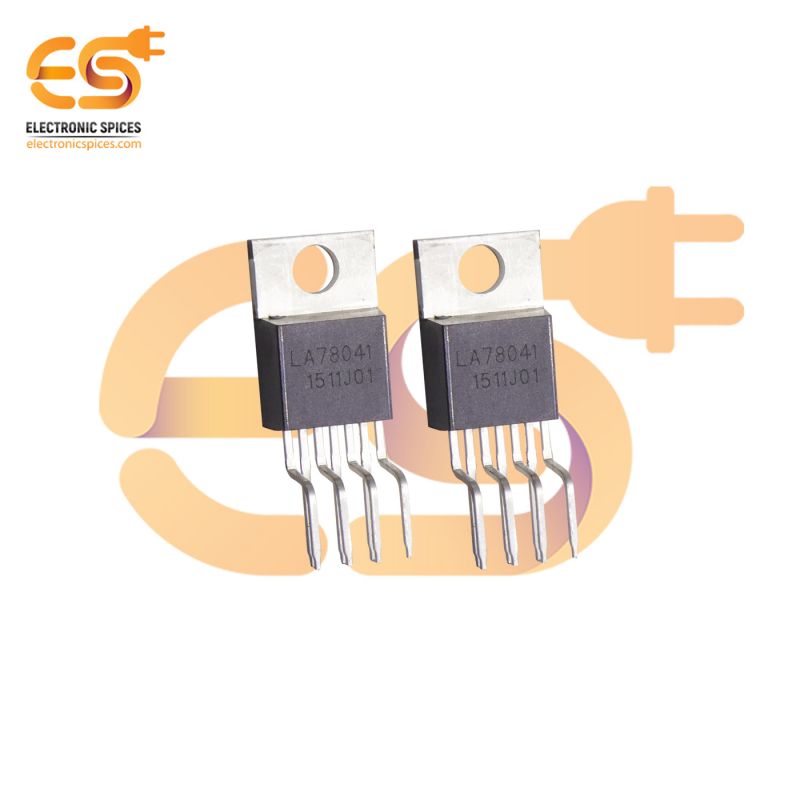

LA78041 TV and CRT display vertical output with bus control support 7 pin IC pack of 2pcs
Specification
- Improve image quality in TV and CRT display
- Recommended supply voltage : 34V
- Supply voltage range : 16V to 40V
- Power dissipation : 9W
- Thermal resistance : 3 °C /W
- Thermal and short circuit protection system
Available in Pack Of:
SKU: 18768FP
MRP Rs. 56.35
Rs.
49.00
(Incl. Tax)
Rs.
41.53
(+18% GST extra)
Rs. 41.53 / pack of 2 = Rs. 20.77 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied
LA78041 TV and CRT display vertical output with bus control support 7 pin IC pack of 2pcs
This is a vertical deflection output IC. It is used for high image quality in TV and CRT displays that supports the use of a bus control system signal-processing IC. It can directly drive the deflection yoke (including the DC component). It provides a maximum deflection current of 2.2Ap-p, it is optimal for large-size CRT monitors.
Package includes
This is the pack of 2 pieces of LA78041 TV and CRT display vertical output with bus control support 7 pin IC
Features
- Low power operation achieved by using an integrated charge pump circuit
- Vertical output circuit
- Thermal protection circuit
- Excellent crossover characteristics
- Supports DC coupling.
