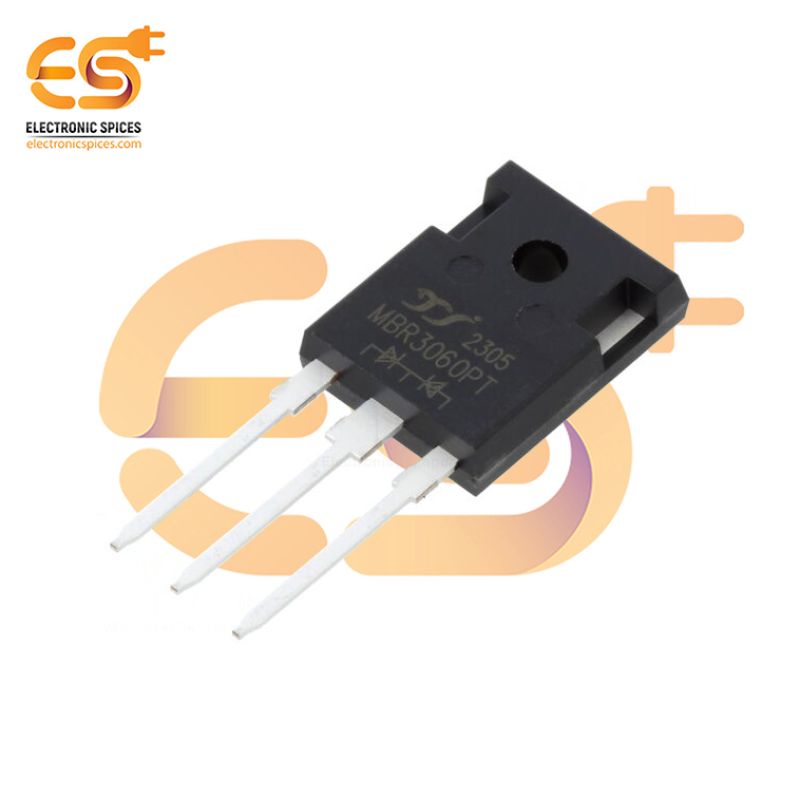

MBR3060PT 60V 30A Through Hole Diode Array 1 Pair Common Cathode TO-247-3
Specification:-
- Package: TO-247-3
- Forward Current: 15 A
- Repetitive Reverse Voltage: 60 V
- Forward Voltage: 750 mV
- Forward Surge Current: 200 A
- Reverse Current: 1 mA
SKU: WH8535A
MBR3060PT 60V 30A Through Hole Diode Array 1 Pair Common Cathode TO-247-3
The MBR3060PT is a 60V, 30A diode array with a common cathode configuration, designed for high-current and high-power applications. Packaged in a TO-247-3 through-hole package, it is commonly used in power conversion, rectification, and other high-power circuits where reliability and efficiency are paramount. With a reverse voltage rating of 60V and a forward current rating of 30A, the MBR3060PT is suitable for demanding environments such as DC-DC converters, power supplies, motor drives, and battery charging systems. The diode array design with two diodes in a common cathode configuration makes it ideal for applications like bridge rectifiers or reverse voltage protection in systems with high current flows. The TO-247-3 package provides enhanced thermal management, helping the diodes handle the power dissipation associated with high-current operation. Its robust design ensures long-term durability in industrial, automotive, and consumer electronics where heavy power handling is required.
Feature:-
- Low forward voltage drop
- High current capability
- High reliability
- High sugar current capability
