FAST RECOVERY RECTIFIERS

1N4934 100V ,DO-41 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 100V
• Peak forward surge current 8.3ms single half sine- wave : 30A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 200ns
• Package : DO-41

FR104 400V ,DO-41 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 400V
• Peak forward surge current 8.3ms single half sine- wave : 30A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 150ns
• Package : DO-41

DO-201AD, FR305 600V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 600v
2. Maximum average rectified current : 3.0A
3. Maxim reverse current : 5.0µA
4. Case :  DO-201AD
5. Non-Repetitive Peak Forward Surge Current : 200A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.3V
8. Maximum reverse recovery time  250ns

DO-15, FR203 200V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 200v
2. Maximum average rectified current : 2.0A
3. Maxim reverse current : 5.0µA
4. Case :  DO-15
5. Non-Repetitive Peak Forward Surge Current : 70A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.3V
8. Maximum reverse recovery time  150ns

1N4935 200V ,DO-41 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 200V
• Peak forward surge current 8.3ms single half sine- wave : 30A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 200ns
• Package : DO-41

DO-201AD, BY396 100V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 100v
2. Maximum average rectified current : 3.0A
3. Maxim reverse current : 10µA
4. Case :  DO-201AD
5. Non-Repetitive Peak Forward Surge Current : 200A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.3V
8. Maximum reverse recovery time  500ns

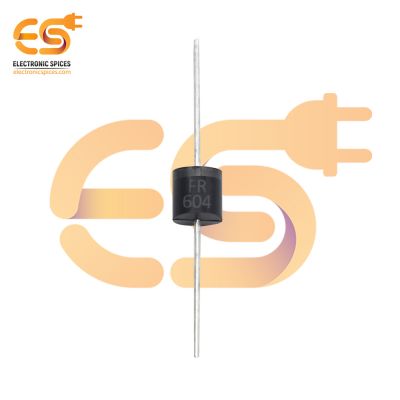

R-6, FR604 400V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 400v
2. Maximum average rectified current : 6.0A
3. Maxim reverse current : 10µA
4. Case :  R-6
5. Non-Repetitive Peak Forward Surge Current : 300A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.3V
8. Maximum reverse recovery time  150ns

1F4 400V ,R-1 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 400V
• Peak forward surge current 8.3ms single half sine- wave : 25A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 150ns
• Package : R-1

DO-15, BY297 200V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 200v
2. Maximum average rectified current : 2.0A
3. Maxim reverse current : 5.0µA
4. Case :  DO-15
5. Non-Repetitive Peak Forward Surge Current : 70A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.3V
8. Maximum reverse recovery time  500ns

1N4936 400V ,DO-41 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 400V
• Peak forward surge current 8.3ms single half sine- wave : 30A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 200ns
• Package : DO-41

1N4937 600V ,DO-41 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 600V
• Peak forward surge current 8.3ms single half sine- wave : 30A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 200ns
• Package : DO-41

DO-201AD, FR301 50V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 50v
2. Maximum average rectified current : 3.0A
3. Maxim reverse current : 5.0µA
4. Case :  DO-201AD
5. Non-Repetitive Peak Forward Surge Current : 200A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.3V
8. Maximum reverse recovery time  150ns
