DIODE & ZENER

1.5KE18 5.0µA, DO-201AD Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 16.2V
• Maximum Breakdown voltage: 19.8V
• Maximum Reverse Leakage Current: 5.0µa
• Maximum peak pulse current: 56.5A
• Maximum clamping voltage: 26.5V
• Maximum Temperature Coefficient of VBR: 0.088%
• Power Dissipation: 1500W
• Package: DO-201AD

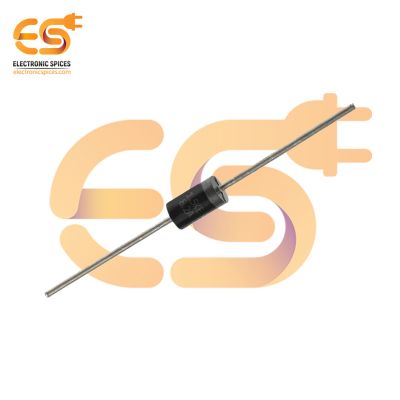

1.5KE8.2A 200µA, DO-201AD Transient Voltage Suppressor Pack of 100

Specification:

1. Minimum Breakdown voltage: 7.79V
2. Maximum Breakdown voltage: 8.61V
3. Maximum Reverse Leakage Current: 200µa
4. Maximum peak pulse current: 124A
5. Maximum clamping voltage: 12.1V
6. Maximum Temperature Coefficient of VBR: 0.065%
7. Power Dissipation: 1500W
8. Package: DO-201AD

UF1D 200V ,Surface Mount High Efficiency Rectifiers Pack of 5pcs

Specification:-

1. Package : SMA(G)
2. Maximum respective peak reverse voltage : 200v
3. Maximum average rectified current : 1.0A
4. Forward peak surge current@8.3ms single half sine-wave : 30A
5. Maximum reverse current : 5.0µA
6. Maximum reverse recovery time : 50ns

WOB, 2W005 2A 50V Bridge Rectifiers Diode pack of 5pcs

Specification

1. Case : WOB
2. Maximum respective peak reverse voltage : 50v
3. Maximum average rectified current : 2.0A
4. Maxim reverse current : 10.0µA
5. Non-Repetitive Peak Forward Surge Current : 50A
6. Maxim forward voltage : 1.1V

WOB, RB155 1.5A 600V Bridge Rectifiers Diode pack of 5pcs

Specification

1. Case : WOB
2. Maximum respective peak reverse voltage : 600v
3. Maximum average rectified current : 1.5A
4. Maxim reverse current : 5.0µA
5. Non-Repetitive Peak Forward Surge Current : 50A
6. Maxim forward voltage : 1.0V

5KP90A 10µA ,R-6 Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 100V
• Maximum Breakdown voltage: 111.0V
• Maximum Reverse Leakage Current: 10µa
• Maximum peak pulse current: 34A
• Maximum clamping voltage: 146.0V
• Power Dissipation: 5000W
• Package: R-6

5KP5.0A 5000µA ,R-6 Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 6.40V
• Maximum Breakdown voltage: 7.00V
• Maximum Reverse Leakage Current: 5000µa
• Maximum peak pulse current: 543A
• Maximum clamping voltage: 9.2V
• Power Dissipation: 5000W
• Package: R-6

5KP28 10µA ,R-6 Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 31.1V
• Maximum Breakdown voltage: 38.0V
• Maximum Reverse Leakage Current: 10µa
• Maximum peak pulse current: 99A
• Maximum clamping voltage: 50.1V
• Power Dissipation: 5000W
• Package: R-6

P4KE8.2A 200µA ,DO-41 Transient Voltage Suppressors Pack of 100

Specification:-

• Breakover voltage : Min(V) 7.79 , Max(V) 8.61
• Maximum peak current : 35A
• Maximum reverse leakage current @ VRRM : 200µA
• Package : DO-41

SA20A 1.0µA ,DO-15 Transient Voltage Suppressors Pack of 100

Specification:-

• Breakover voltage : Min(V) 22.2 , Max(V) 24.5
• Maximum peak current : 15.4A
• Maximum reverse leakage current @ VRWM : 1.0µA
• Power dissipation :500W
• Package : DO-15

BZT52C24S 200mW ,SOD-323 Packaging Diodes Pack of 5pcs

Specification:

• Power Dissipation : 200mW
• Nominal Zener Voltage : 24V
• Minimum Zener voltage : 22.8V
• Maximum Zener voltage : 25.6V
• Maximum Reverse Current : 0.1µa
• Package : SOD-323

1.5KE20A 5.0µA, DO-201AD Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 19.0V
• Maximum Breakdown voltage: 21.0V
• Maximum Reverse Leakage Current: 5.0µa
• Maximum peak pulse current: 54.0A
• Maximum clamping voltage: 27.7V
• Maximum Temperature Coefficient of VBR: 0.090%
• Power Dissipation: 1500W
• Package: DO-201AD
