DIODE & ZENER

DO-15,BY297G 200V Glass Passivated Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Case : DO-15
2. Maximum respective peak reverse voltage : 200v
3. Maximum average rectified current : 2.0A
4. Maxim reverse current : 5.0µA
5. Non-Repetitive Peak Forward Surge Current : 70A
6. Maxim forward voltage : 1.3V
7. Maximum reverse recovery time : 500ns

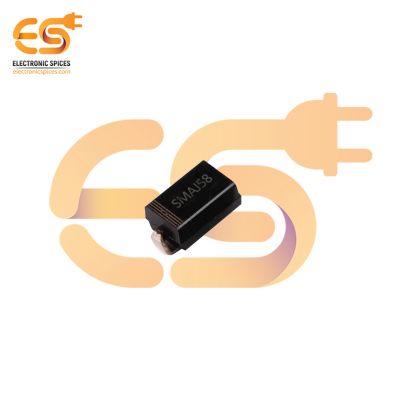

SMAJ58 400W Surface Mount Transient Voltage Suppressors Pack of 5pcs

Specification:-

1. Package : SMA/SMA(G)
2. Minimum Breakdown voltage : 64.40V
3. Maximum Breakdown voltage : 78.7V
4. Stand-off voltage : 58.0
5. Maximum reverse leakage current : 5.0
6. Maximum peak pulse current : 2.9A
7. Maximum clamping voltage : 103.0V
8. Power dissipation : 400W

WOB, RB155 1.5A 600V Bridge Rectifiers Diode pack of 5pcs

Specification

1. Case : WOB
2. Maximum respective peak reverse voltage : 600v
3. Maximum average rectified current : 1.5A
4. Maxim reverse current : 5.0µA
5. Non-Repetitive Peak Forward Surge Current : 50A
6. Maxim forward voltage : 1.0V

MM3Z5228B 300mW ,SOD-323 Packaging Diodes Pack of 5pcs

Specification:

• Power Dissipation : 300 mW
• Nominal Zener Voltage : 3.9V
• Minimum Zener voltage : 3.71V
• Maximum Zener voltage : 4.1V
• Maximum Reverse Current : 10µa
• Package : SOD-323

MM1ZB22 500mW ,SOD-123 Packaging Diodes Pack of 5pcs

Specification:

• Power Dissipation : 500mW
• Nominal Zener Voltage : 22V
• Minimum Zener voltage : 21.56V
• Maximum Zener voltage : 22.44V
• Maximum Reverse Current : 0.1µa
• Package : SOD-123

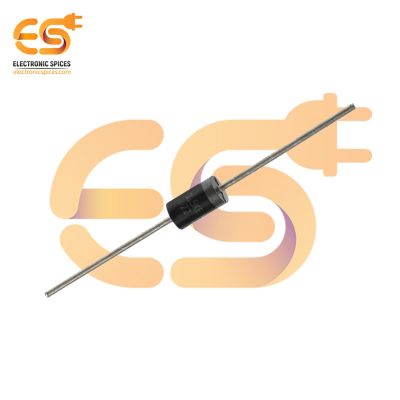

1.5KE22 5.0µA, DO-201AD Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 19.8V
• Maximum Breakdown voltage: 24.2V
• Maximum Reverse Leakage Current: 5.0µa
• Maximum peak pulse current: 47.0A
• Maximum clamping voltage: 31.9V
• Maximum Temperature Coefficient of VBR: 0.092%
• Power Dissipation: 1500W
• Package: DO-201AD

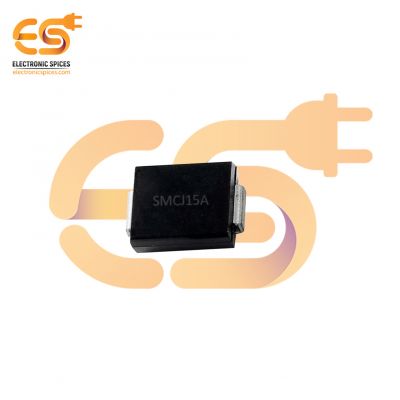

SMC(G) SMCJ15A 1500W Surface Mount Transient Voltage Suppressors Pack of 5pcs

Specification

1. Case : SMC(G)
2. Stand-off voltage : 15.0V
3. Maximum peak pulse current : 61.5A
4. Maxim reverse current : 5.0µA
5. Maximum clamping voltage : 24.4V
6. Power dissipation : 1500W

SMBJ110A 600W Surface Mount Transient Voltage Suppressors Pack of 5pcs

Specification:-

1. Package : SMB/SMB(G)
2. Minimum Breakdown voltage : 122.00V
3. Maximum Breakdown voltage : 135V
4. Stand-off voltage : 110.0
5. Maximum reverse leakage current : 5.0
6. Maximum peak pulse current : 3.4A
7. Maximum clamping voltage : 177.0V
8. Power dissipation : 600W

MM1ZB12 500mW ,SOD-123 Packaging Diodes Pack of 5pcs

Specification:

• Power Dissipation : 500mW
• Nominal Zener Voltage : 12V
• Minimum Zener voltage : 11.76V
• Maximum Zener voltage : 12.24V
• Maximum Reverse Current : 0.1µa
• Package : SOD-123

5KP90A 10µA ,R-6 Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 100V
• Maximum Breakdown voltage: 111.0V
• Maximum Reverse Leakage Current: 10µa
• Maximum peak pulse current: 34A
• Maximum clamping voltage: 146.0V
• Power Dissipation: 5000W
• Package: R-6

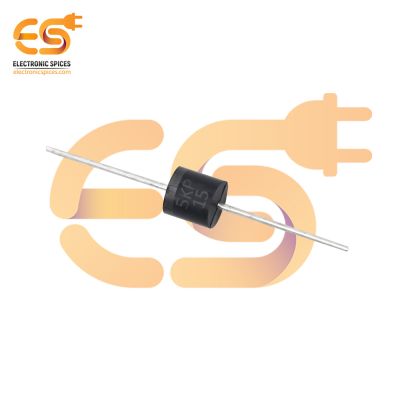

5KP15 10µA ,R-6 Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 16.7V
• Maximum Breakdown voltage: 20.4V
• Maximum Reverse Leakage Current: 10µa
• Maximum peak pulse current: 188A
• Maximum clamping voltage: 26.9V
• Power Dissipation: 5000W
• Package: R-6

HER101S 50V ,A-405 High Efficiency Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 50V
• Peak forward surge current 8.3ms single half sine- wave : 30A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 50ns
• Package : A-405
