DIODE & ZENER

DO-41, FR106G 800V Glass Passivated Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Case : DO-41
2. Maximum respective peak reverse voltage : 800v
3. Maximum average rectified current : 1.0A
4. Maxim reverse current : 5.0µA
5. Non-Repetitive Peak Forward Surge Current : 30A
6. Maxim forward voltage : 1.3V
7. Maximum reverse recovery time : 500ns

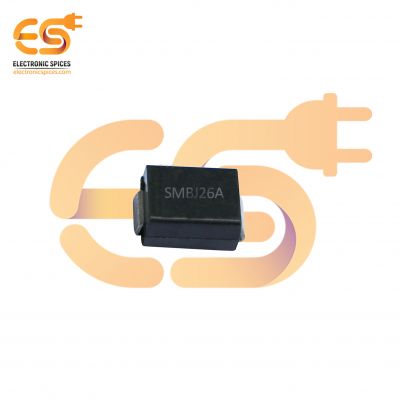

SMBJ26A 600W Surface Mount Transient Voltage Suppressors Pack of 5pcs

Specification:-

1. Package : SMB/SMB(G)
2. Minimum Breakdown voltage : 28.9V
3. Maximum Breakdown voltage : 31.9V
4. Stand-off voltage : 26.0
5. Maximum reverse leakage current : 5.0
6. Maximum peak pulse current : 14.3A
7. Maximum clamping voltage : 42.1V
8. Power dissipation : 600W

1.5KE12A 5.0µA, DO-201AD Transient Voltage Suppressor Pack of 100

Specification:

1. Minimum Breakdown voltage: 11.4V
2. Maximum Breakdown voltage: 12.6V
3. Maximum Reverse Leakage Current: 5.0µa
4. Maximum peak pulse current: 90.0A
5. Maximum clamping voltage: 16.7V
6. Maximum Temperature Coefficient of VBR: 0.078%
7. Power Dissipation: 1500W
8. Package: DO-201AD

5KP54 10µA ,R-6 Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 60.0V
• Maximum Breakdown voltage: 73.3V
• Maximum Reverse Leakage Current: 10µa
• Maximum peak pulse current: 52A
• Maximum clamping voltage: 96.3V
• Power Dissipation: 5000W
• Package: R-6

1.5KE56A 5.0µA, DO-201AD Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 53.2V
• Maximum Breakdown voltage: 58.8V
• Maximum Reverse Leakage Current: 5.0µa
• Maximum peak pulse current: 19.5A
• Maximum clamping voltage: 77.0V
• Maximum Temperature Coefficient of VBR: 0.103%
• Power Dissipation: 1500W
• Package: DO-201AD

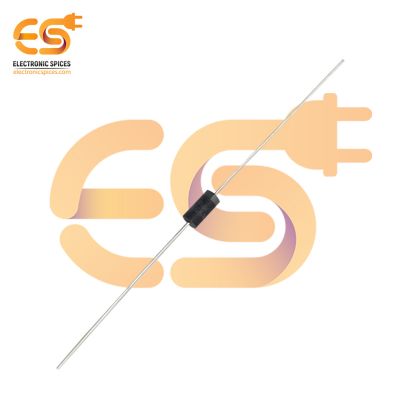

P4KE68A 5.0µA ,DO-41 Transient Voltage Suppressors Pack of 100

Specification:-

• Breakover voltage : Min(V) 64.6 , Max(V) 71.4
• Maximum peak current : 4.6A
• Maximum reverse leakage current @ VRRM : 5.0µA
• Power dissipation :400W
• Package : DO-41

FR2G 400V ,Surface Mount Fast Recovery Rectifiers Pack of 5pcs

Specification:-

1. Package : SMB(G)
2. Maximum respective peak reverse voltage : 400v
3. Maximum average rectified current : 2.0A
4. Forward peak surge current@8.3ms single half sine-wave : 50A
5. Maximum reverse current : 5.0µa
6. Maximum reverse recovery time : 150ns

SMBJ12A 600W Surface Mount Transient Voltage Suppressors Pack of 5pcs

Specification:-

1. Package : SMB/SMB(G)
2. Minimum Breakdown voltage : 13.3V
3. Maximum Breakdown voltage : 14.7V
4. Stand-off voltage : 12.0
5. Maximum reverse leakage current : 5.0
6. Maximum peak pulse current : 30.2A
7. Maximum clamping voltage : 19.9V
8. Power dissipation : 600W

MM1Z5252B 500mW SOD-123 Packaging Diodes Pack of 5pcs

Specification:

• Power Dissipation : 500mW
• Nominal Zener Voltage : 24V
• Minimum Zener voltage : 22.8V
• Maximum Zener voltage : 25.2V
• Maximum Reverse Current : 0.1µa
• Package : SOD-123

5KP51 10µA ,R-6 Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 56.7V
• Maximum Breakdown voltage: 69.3V
• Maximum Reverse Leakage Current: 10µa
• Maximum peak pulse current: 55A
• Maximum clamping voltage: 91.1V
• Power Dissipation: 5000W
• Package: R-6

5KP8.0A 150µA ,R-6 Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 8.89V
• Maximum Breakdown voltage: 9.83V
• Maximum Reverse Leakage Current: 150µa
• Maximum peak pulse current: 367A
• Maximum clamping voltage: 13.6V
• Power Dissipation: 5000W
• Package: R-6

DO-41, FR103G 200V Glass Passivated Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Case : DO-41
2. Maximum respective peak reverse voltage : 200v
3. Maximum average rectified current : 1.0A
4. Maxim reverse current : 5.0µA
5. Non-Repetitive Peak Forward Surge Current : 30A
6. Maxim forward voltage : 1.3V
7. Maximum reverse recovery time : 150ns
