MEMORY IC
Showing 1–12 of 39 results
.jpg)
.jpg)
.jpg)
-
![W78E052DDG – 8K Flash Microcontroller Memory IC Nuvoton DIP-40 Package]()
W78E052DDG – 8K Flash Microcontroller Memory IC Nuvoton DIP-40 Package
Rs. 99.00Specification:-
- Core Size: 8-Bit
- 6T/12T 8051 processor
- Max frequency of 40 MHz
- Operating voltage: 2.4V to 5.5V
- Temperature range: -40℃ ~ 85℃
-

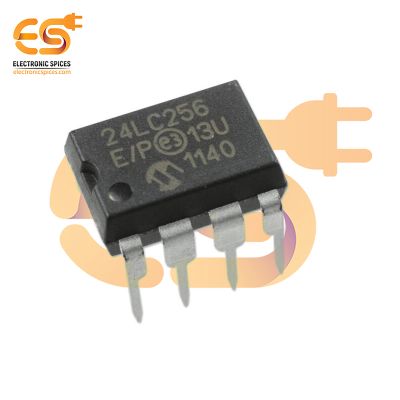

![24LC256 256K bit Serial I2C Bus EEPROM IC (DIP-8 Package)]()
24LC256 256K bit Serial I2C Bus EEPROM IC (DIP-8 Package)
Rs. 69.00Specification:-
- Single Supply with Operation Down to 2.5V
- All inputs and outputs w.r.t. VSS: -0.6V to VCC +1.0V
- Storage temperature: -65°C to +150°C
- Ambient temperature with power applied: -40°C to +125°C
- ESD protection on all pins: ≥ 4 kV°C
- 100 kHz, 400 kHz and 1 MHz Compatibility
-
![24C128 128K bit Serial I2C Bus EEPROM IC (DIP-8 Package)]()
24C128 128K bit Serial I2C Bus EEPROM IC (DIP-8 Package)
Rs. 99.00Specification:-
- Voltage on Any Pin concerning Ground: -1.0V to +7.0V
- Storage temperature: -65°C to +150°C
- Operating Temperature: -55°C to +125°C
- Maximum Operating Voltage: 6.25V
- DC Output Current: 5.0 mA
- 1 MHz (5V), 400 kHz (2.7V, 2.5V) and 100 kHz (1.8V) Compatibility
-
![512K bit Serial I2C Bus EEPROM IC DIP-8 Package (24LC512)]()
512K bit Serial I2C Bus EEPROM IC DIP-8 Package (24LC512)
Rs. 79.00Specification:-
- Single Supply with Operation down to: 2.5V
- All inputs and outputs w.r.t. VSS: -0.6V to VCC +1.0V
- Storage temperature: -65°C to +150°C
- Ambient temperature with power applied: -40°C to +125°C
- ESD protection on all pins: ≥ 4 kV
- 100 kHz and 400 kHz Clock Compatibility
-
![8K bit Serial I2C Bus EEPROM IC DIP-8 Package (24C08)]()
8K bit Serial I2C Bus EEPROM IC DIP-8 Package (24C08)
Rs. 29.00Specification:-
- Single supply with operation: 4.5-5.5V
- All inputs and outputs VSS: -0.6V to VCC +1.0V
- Storage temperature: -65°C to +150°C
- Ambient temperature with power applied: -65°C to +125°C
- ESD protection on all pins: ≥ 4 kV
- Soldering temperature of leads (10 seconds): 300°C
-

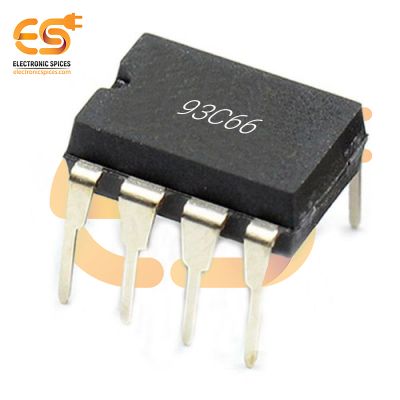

![93C66 4Kbit Serial EEPROM SMD SOP8]()
93C66 4Kbit Serial EEPROM SMD SOP8
Rs. 29.00Specification:-
- Product: EEPROM Memory IC
- Model No: 93C66
- Input Voltage: 2.7 To 5.5V DC
- Operating Temperature: -55°C TO 150°C
-

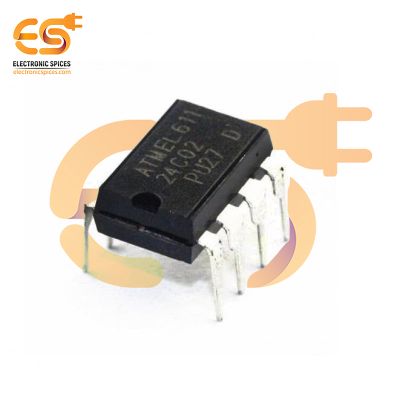

![24C02 2K bit Serial I2C Bus EEPROM IC DIP-8 Package]()
24C02 2K bit Serial I2C Bus EEPROM IC DIP-8 Package
Rs. 29.00Specification:-
- Read current 1 mA, max.
- Single-Supply with Operation from: 4.5V to 5.5V
- All inputs and outputs w.r.t. VSS: -0.6V to VCC +1.0V
- Storage temperature: -65°C to +150°C
- Ambient temperature with power applied: 40°C to +125°C
- ESD protection on all pins: ≥ 4 kV
-
![FM24C64EM8 EEPROM Memory IC 64Kbit I²C 100 kHz 3.5 µs 8-SOIC]()
FM24C64EM8 EEPROM Memory IC 64Kbit I²C 100 kHz 3.5 µs 8-SOIC
Rs. 500.00Specification:-
- Package: SOIC8 (0.154", 3.90mm)
- Memory Size: 64 kbit
- Interface Type: 2-Wire, I2C
- Maximum Clock Frequency: 100 kHz
- Organisation: 8 k x 8
- Access Time: 3.5 us
- Supply Voltage - Min: 4.5 V
- Supply Voltage - Max: 5.5 V
-
![62256 32Kx8 bit CMOS Static RAM IC (DIP-28 Package)]()
62256 32Kx8 bit CMOS Static RAM IC (DIP-28 Package)
Rs. 139.00Specification:-
- High speed: 55 ns
- Voltage range: 4.5 V to 5.5 V operation
- Supply voltage to ground potential: –0.5 V to +7.0 V
- Storage temperature: -65°C to +150°C
- Ambient temperature with power applied : -55°C to +125°C
- DC voltage applied to outputs in high Z State: –0.5 V to VCC + 0.5 V
- DC input voltage: –0.5 V to VCC + 0.5 V
-
![XC1736DPC Memory IC 36K I-TEMP Serial PROM 8-PDIP]()
XC1736DPC Memory IC 36K I-TEMP Serial PROM 8-PDIP
Rs. 500.00Specification:-
- Package/Case: PDIP8 (0.300", 7.62mm)
- Voltage Supply: 3.3V
- Memory Capacity: 36K-bits (4.5 KB)
- Model: Serial Configuration PROM
- High-speed data transfer rates for fast configuration
-
![DS1210S Nonvolatile Controller Chip IC NV 16-SOIC]()
DS1210S Nonvolatile Controller Chip IC NV 16-SOIC
Rs. 500.00Specification:-
- Package: SOIC16 (0.295", 7.50mm)
- Number of pins: 16 pin
- Supply Current-Max (Isup): 80 mA
- Supply Voltage-Max (Vsup): 5.5 V
- Supply Voltage-Min (Vsup): 4.5 V
- Supply Voltage-Nom (Vsup): 5 V
- Operating Temperature-Max: 70 °C
-
![XC1701LPC Memory IC 1-MB 3.3V Serial Configuration PROM Programmable 8-PDIP]()
XC1701LPC Memory IC 1-MB 3.3V Serial Configuration PROM Programmable 8-PDIP
Rs. 500.00Specification:-
- Package/Case: PDIP8 (0.300", 7.62mm)
- Model: Serial Configuration PROM
- Memory Capacity: 1-Mbit (128 KB)
- Voltage Supply: 3.3V
- High-speed data transfer rates for fast configuration
