MEMORY IC
Showing 1–12 of 39 results
.jpg)
.jpg)
-Devices.jpg)
.jpg)
.jpg)
-
![AT25160N-10SC-2.7 EEPROM Memory IC 8-SOIC]()
AT25160N-10SC-2.7 EEPROM Memory IC 8-SOIC
Rs. 500.00Specification:-
- Package: SOIC-8 (0.154", 3.90mm)
- Mounting Type: Surface Mount
- Clock Frequency: 3MHz
- Memory Size: 16Kb (2K x 8)
- Supply Voltage-Max (Vsup): 5.5 V
- Supply Voltage-Min (Vsup): 4.5 V
- Operating Temperature: -40°C to 85°C
-
![AT24C01A-10PC EEPROM Memory IC 8-PDIP]()
AT24C01A-10PC EEPROM Memory IC 8-PDIP
Rs. 500.00Specification:-
- Package: PDIP-8 (0.300", 7.62mm)
- No. of Pins: 8-Pins
- Mounting Type: Through Hole
- Memory Size: 1 Kbit
- Access Time: 900 ns
- Maximum Clock Frequency: 0.4 MHz
- Supply Voltage Min: 4.5 V
- Supply Voltage Max: 5.5 V
- Operating Temperature: 0°C to 70°C
-
![24C128 128K bit Serial I2C Bus EEPROM IC (DIP-8 Package)]()

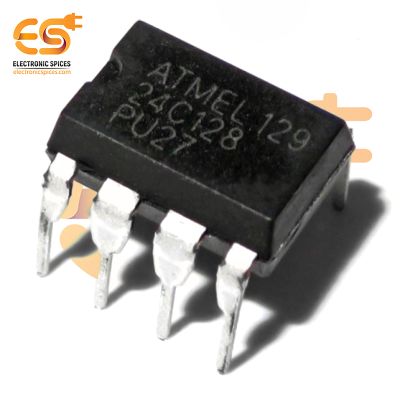

24C128 128K bit Serial I2C Bus EEPROM IC (DIP-8 Package)
Rs. 99.00Specification:-
- Voltage on Any Pin concerning Ground: -1.0V to +7.0V
- Storage temperature: -65°C to +150°C
- Operating Temperature: -55°C to +125°C
- Maximum Operating Voltage: 6.25V
- DC Output Current: 5.0 mA
- 1 MHz (5V), 400 kHz (2.7V, 2.5V) and 100 kHz (1.8V) Compatibility
-
![24C64 64K bit Serial I2C Bus EEPROM IC (DIP-8 Package)]()
24C64 64K bit Serial I2C Bus EEPROM IC (DIP-8 Package)
Rs. 39.00Specification:-
- Supply Voltage: -0.5 to +6.5 V
- Voltage on Any Pin: -0.5 to Vcc + 0.5 V
- Temperature Under Bias: -55 to +125°C
- Storage Temperature: -65 to +150°C
- Output Current: 5 mA
- Wide Voltage Operation: Vcc = 1.8V to 5.5V
- 400 KHz (2.5V) and 1MHz (5.0V) Compatible
-
![AT25128-10PC EEPROM Memory IC 8-PDIP]()
AT25128-10PC EEPROM Memory IC 8-PDIP
Rs. 500.00Specification:-
- Package: PDIP-8 (0.300", 7.62mm)
- No. of Pins: 8Pins
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 5.5V
- Clock Frequency: 3MHz
- Memory Size: 128Kb (16K x 8)
- Operating Temperature: 0°C to 70°C
-
![AT24C128N-10SI-1.8 EEPROM Memory IC 8-SOIC]()
AT24C128N-10SI-1.8 EEPROM Memory IC 8-SOIC
Rs. 500.00Specification:-
- Package: SOIC8 (0.154", 3.90mm)
- No. of Pins: 8Pins
- IC Mounting: Surface Mount
- Supply Voltage Min: 1.8V
- Supply Voltage Max: 2.5V
- Clock Frequency: 400 kHz
- Access Time: 900ns
- Program Memory Size: 128Kb (16K x 8)
- Operating Temperature: -40°C to 85°C
-
![EPCS1N Serial Configuration Devices Memory IC 8-SOIC]()
EPCS1N Serial Configuration Devices Memory IC 8-SOIC
Rs. 500.00Specification:-
- Memory Size: 1 Mbit (128 KB)
- Package: 8-pin SOIC
- Operating Frequency: 40 MHz
- Supply Voltage Max: 3.6 V
- Supply Voltage Min: 2.7 V
- Supply Current: 100 uA
- Operating Temperature Range: -40°C to 85°C
-
![AS7C256A-15JC SRAM - Asynchronous Memory IC 256Kbit Parallel 15ns 28-SOJ]()
AS7C256A-15JC SRAM - Asynchronous Memory IC 256Kbit Parallel 15ns 28-SOJ
Rs. 500.00Specification:-
- Memory Size: 256Kbit (32K x 8-bit)
- Access Time: 15ns
- Technology: CMOS
- Package: 28-pin SOJ
- Supply Current-Max 0.065 mA
- Supply Voltage-Max (Vsup): 5.5 V
- Supply Voltage-Min (Vsup): 4.5 V
- Supply Voltage-Nom (Vsup): 5 V
-
![24C32 32K bit Serial I2C Bus EEPROM IC (DIP-8 Package)]()

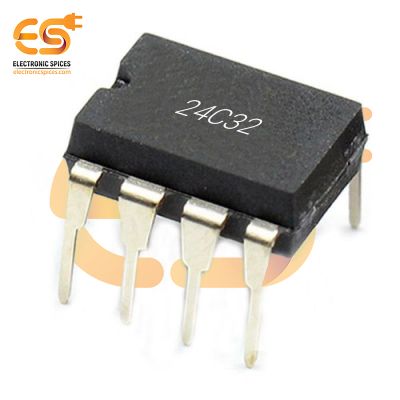

24C32 32K bit Serial I2C Bus EEPROM IC (DIP-8 Package)
Rs. 29.00Specification:-
- Voltage operating range: 4.5V to 5.5V
- All inputs and outputs w.r.t. VSS: -0.6V to VCC +1.0V
- Storage temperature: -65°C to +150°C
- Ambient temperature with power applied: -65°C to +125°C
- ESD protection on all pins: ≥ 4 kV
- Soldering temperature of leads (10 seconds): 300°C
-
![AT24C08B-PU EEPROM Memory IC 8-PDIP]()
AT24C08B-PU EEPROM Memory IC 8-PDIP
Rs. 500.00Specification:-
- Package: PDIP-8 (0.300", 7.62mm)
- No. of Pins: 8-Pins
- Memory Size: 8 Kbit
- Maximum Clock Frequency: 1 MHz
- Supply Voltage Min: 1.8 V
- Supply Voltage Max: 5.5 V
- Operating Temperature: -40°C ~ 85°C
-
![CAT93C66P EEPROM Memory IC CMOS 8-PDIP]()
CAT93C66P EEPROM Memory IC CMOS 8-PDIP
Rs. 500.00Specification:-
- Package:- PDIP-8 (0.300", 7.62mm)
- No. of Pins: 8Pins
- Access Time: 500 ns
- Organization: 256 x 16
- Maximum Clock Frequency: 1 MHz
- Supply Voltage Min: 2.5 V
- Supply Voltage Max: 6 V
- Operating Temperature: 0°C ~ 70°C
-
![AT93C66A-10TU-2.7 EEPROM Memory IC 8-TSSOP]()

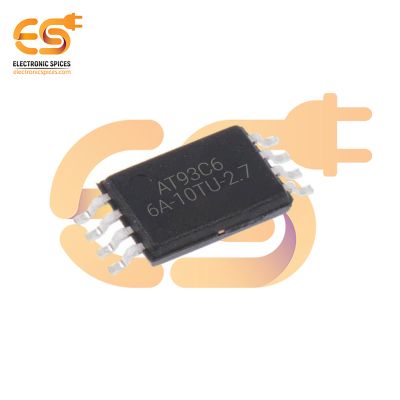

AT93C66A-10TU-2.7 EEPROM Memory IC 8-TSSOP
Rs. 500.00Specification:-
- Package: TSSOP-8 (0.173", 4.40mm)
- No. of Pins: 8-Pins
- Memory Size: 4Kb (512 x 8, 256 x 16)
- Maximum Clock Frequency: 2 MHz
- Supply Voltage Min: 2.7 V
- Supply Voltage Max: 5.5 V
- Operating Temperature: -40°C ~ 85°C
