IC

D2498 Silicon NPN triple diffused 3 pins IC for horizontal deflection output pack of 10pcs

Specification

1. Collector-Base voltage rating : 1500V
2. Collector-emitter voltage rating : 600V
3. Collector current : 6A
4. Collector power dissipation : 50Watt
5. Base current : 3A

LM324 DIP-14/SOP-14 Operational Amplifier IC Pack of 5

Specification:-

• DC voltage gain- >65dB
• Input bias current- >50nA
• Input Offset Voltage- >7
• Common Mode Range Extends to Negative Supply

UTC2030A 18 Watt HI - FI Amplifier and 35 watt driver 5 pins linear IC pack of 50pcs

Specification

1. Audio power amplifier
2. Power supply range:  6V to 36V
3. Output power: 18 Watts
4. Number of pins: 5
5. Maximum current flow: 900mA
6. Thermal & short circuit protection

MCP23S17 16 Bit I/O Expander with serial interface DIP 28 pin IC

Specification

1. Chip configuration : 16bit
2. Bus frequency : 10MHz
3. IC Interface type : serial
4. Supply voltage : 1.8V to 5.5V
5. Standby current : 1uA
6. High speed SPI interface

TC4427 Power MOSFET Driver IC

Specification:-

• Supply Voltage: +22V
• Input Voltage: 730 mW
• Short Delay Times: 40 ns (typical)
• Package Power Dissipation: 50 mA
• Storage Temperature Range: -65°C to +150°C
• Maximum Junction Temperature: +150°C
• Supply Voltage Operating Range: – 4.5V to 18V
• High Capacitive Load Drive Capability: 1000 pF in 25 ns (typical)

AN6884 Logarithmic 5 dot LED driver SIP 9 pins IC pack of 10pcs

Specification

1. 5-dot LED bar logarithmic IC
2. Operating voltage range:  5V to 16 V
3. Circuit voltage: 6V
4. Supply current: 12A
5. Power dissipation:  1100mW
6. Constant current output:  15 mA
7. Inbuilt high gain amplifier: 26 dB
8. Number of pins: 9
9. Low noise immunity

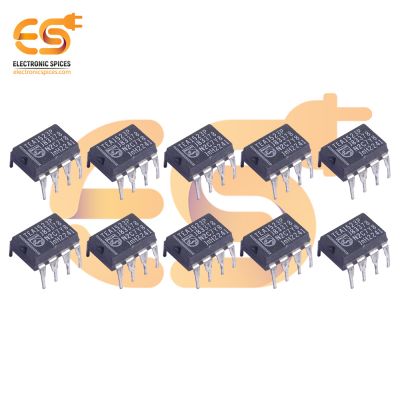

TEA1523 low power system DIP 8 pins SMPS IC pack of 10pcs

Specification

1. Supply voltage range : 10V to 40V
2. Oscillator frequency : 200KHz
3. Integrated power switch value : 6.5Ω at 650V
4. Adjustable overcurrent protection
5. Under-voltage protection
6. Temperature protection
7. Short circuit winding protection

HIP4082 80V 1.25A peak current H-bridge FET driver 16 pins IC pack of 50pcs

Specification

1. Supply voltage: 8.5V to 16V
2. Phase slew rate: 20V/ns
3. Operating current : 4A
4. Independently drives 4 N-Channel FET in half-bridge
5. Drives 1000pF load in free air at 50°C

24C16 16K Bit standard 2 wire bus interface serial DIP 8 pins IC pack of 10pcs

Specification

1. Low Voltage and Standard-Voltage Operation
2. 2-wire Serial Interface
3. Operating voltage : 2.7V to 5.5V
4. Clock frequency :  40KHz
5. Active current typical : 200µA
6. 100kHz and 400kHz Compatibility
7. 8-byte Page (1K, 2K), 16-byte Page (4K, 8K, 16K) Write Modes

LM324 Low Power Quad Op-Amp SMD IC

Specification:-

• IC Name: LM324
• Supply Voltage: 32V
• Differential Input Voltage: 32V
• Input Voltage: −0.3V to +32V
• Operating Temperature Range: −25˚C to +85˚C
• Storage Temperature Range: −65˚C to +150˚C
• Lead Temperature DIP: 260˚C

24C16 16K Bit standard 2 wire bus interface serial DIP 8 pin IC pack of 2pcs

Specification

1. Low Voltage and Standard-Voltage Operation
2. 2-wire Serial Interface
3. Operating voltage : 2.7V to 5.5V
4. Clock frequency :  40KHz
5. Active current typical : 200µA
6. 100kHz and 400kHz Compatibility
7. 8-byte Page (1K, 2K), 16-byte Page (4K, 8K, 16K) Write Modes

TOP250YN Extended power Flexible design, Eco-Smart, integrated off-line switcher 6 pin IC

Specification

1. Input supply voltage AC: 85V to 265V
2. Switching frequency: 66kHz - 132kHz
3. Output voltage : 12V
4. Operating supply current : 1.6mA
5. Drain voltage : 0.3V to 700V
6. Drain peak current : 10.08A
7. Type : Off line convertor
8. Extended power range
9. Wide duty cycle
