IC

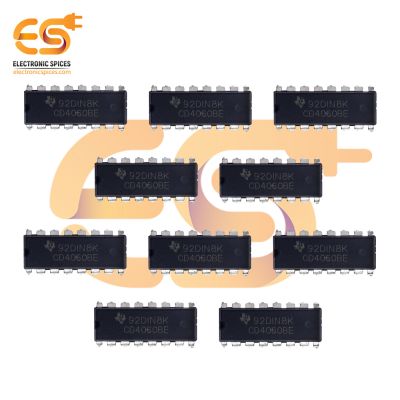

CD4060 14 stage binary ripple counter 16 pins IC pack of 50pcs

Specification

1. 14-bit Binary counter or Divider IC
2. Counting range :  0 to 16383 (In decimal)
3. Operating voltage  :  3V to 18V
4. Number of pins : 16
5. Maximum clock frequency : 30MHz at 15V
6. Medium speed operation :  8MHz at VDD = 10V

KA2224 Dual equalizer amplifier with ALC DIP 14 pins IC pack of 50pcs

Specification

1. Dual equalizer amplifier with in-built ALC circuit
2. Excellent channel separation
3. Supply voltage : 14V
4. Power dissipation : 600mW
5. ALC max. current : 3.5mA
6. Output voltage current : 1.2V

SG3524N Regulating pulse width modulator DIP 16 pins IC pack of 10pcs

Specification

1. Supply voltage range:  8V to 40V
2. Output voltage:  5V
3. Output current  : 50 mA
4. Dual output
5. Topology  :  Boost, Buck, Fly-back, Forward, Push-Pull
6. Switching frequency :  722 kHz
7. Fall Time :  100 ns

CD4053BE Triple 2 channel analog multiplexer DIP 16 pin IC pack of 2pcs

Specification

1. Wide range of digital and analog signal levels
   1. Digital : 3 V to 20V
   2. Analog : ≤ 20V_P-P
2. Gain bandwidth : 30MHz
3. Current leakage : 100nA
4. Channel to channel matching : 5Ω (ohm)
5. On state resistance : 240 Ω ( ohm )

2902N Single supply quad operational amplifier DIP 14 pins IC pack of 10pcs

Specification

1. Single supply
2. High output voltage
3. Supply voltage :  16V to 32V
4. Power dissipation : 300mW
5. Number of pins : 14
6. Slew rate : 0.5V/μs
7. low operating voltage : 1mA

D2498 Silicon NPN triple diffused 3 pins IC for horizontal deflection output pack of 50pcs

Specification

1. Collector-Base voltage rating : 1500V
2. Collector-emitter voltage rating : 600V
3. Collector current : 6A
4. Collector power dissipation : 50Watt
5. Base current : 3A

MCP73831 Li-ion Battery Charger SMD IC (SOT-23 Package)

Specification:-

• Voltage Supply: 7V
• Temperature Range: -40°C to +85°C
• All Inputs and Outputs w.r.t. VSS: -0.3 to (VDD+0.3)V
• Programmable Charge Current: 15 mA to 500 mA
• High Accuracy Preset Voltage Regulation: + 0.75%

U74HC245L 2.3W Dual audio power amplifier 10 pin IC (Pack of 50pcs)

Specification:

1. Supply voltage:                              15V
2. Power dissipation:                          4W
3. Operating supply voltage range:      9V to 11V
4. Quiescent circuit current:               40mA to 55mA
5. Closed-loop voltage gain:               43dB to 47dB
6. outer power:                                    2.3W

NJM2068L Low noise dual operation amplifier SIP 8 pins IC pack of 10pcs

Specifications

1. Supply voltage:  4V to 18V
2. Differential input voltage range:  30V
3. Power dissipation : 500mW
4. Voltage gain :  90 to 120 dB
5. Max. output voltage :  12V
6. Slew rate :  6V/µs

74LS132 Quad 2-Input Schmitt Trigger IC DIP-14 Package

Specification:-

• Number of pins: 14
• Supply Voltage (VCC): 7 V
• Input Voltage (VI): 7 V
• Operating free-air temperature range: 0°C to +70°C
• Storage temperature range: -65°C to +150°C

AN6884 Logarithmic 5 dot LED driver SIP 9 pins IC pack of 50pcs

Specification

1. 5 dot LED bar logarithmic IC
2. Operating voltage range :  5V to 16 V
3. Circuit voltage : 6V
4. Supply current  : 12A
5. Power dissipation :  1100mW
6. Constant current output :  15 mA
7. Inbuilt high gain amplifier: 26 dB
8. Number of pin : 9
9. Low noise immunity

UA741CP General purpose operational amplifier 8 pins IC pack of 50pcs

Specification

1. Supply voltage range 5V to 15V
2. Input offset voltage: 6V to 7.5V
3. Input offset current : 200nA to 300nA
4. Max. peak output voltage swing : 12V
5. Input resistance : 2MΩ
6. Power dissipation : 85W to 100W
