IC

TO-220 7809, 3-Terminal Positive Voltage Regulator IC pack of 5pcs

Specification

1. Output Current Up To 1.5 A
2. Input Voltage 8.64V To 9.36V
3. Thermal Overload Protection Short Circuit Protection
4. 2 % Output Voltage Tolerance
5. Output Transition SOA Protection

TDA7293 100watt 120V DMOS audio power amplifier with mute and standby feature 15 pins IC pack of 10pcs

Specification

1. Audio power amplifier
2. Supply voltage: 60V
3. Output peak current : 10A
4. Operating ambient temperature range : 0 to 70 °C
5. Open-loop Voltage Gain :  80 dB
6. Output power : up to 100 watts
7. Short circuit and thermal protection

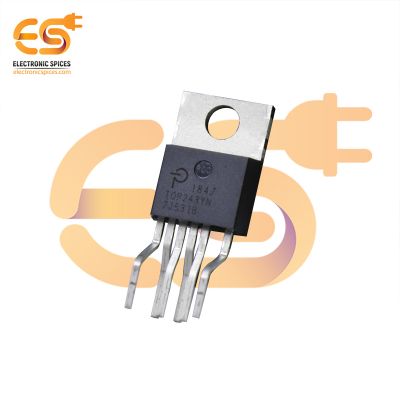

TOP244YN Extended power Flexible design, Eco-Smart, integrated off-line switcher 6 pin IC

Specification

1. Input supply voltage AC : 85V to 265V
2. Switching frequency : 66kHz - 132kHz
3. Output voltage : 12V
4. Operating supply current : 1.6mA
5. Drain voltage : 0.3V to 700V
6. Drain peak current : 2.16A
7. Type : Off line convertor
8. Extended power range
9. Wide duty cycle

ULN2003APG Generator/Voltage Controlled Oscillator IC – DIP-16

Specification

• Data interface: Serial
• Number of pin : 16
• Package - DIP16
• Max Out Current - 500mA
• Operational Temperature - 40 to 85 ℃
• Output voltage 50 V

L293D Quadruple half-H driver or motor driver 16 pins IC pack of 10pcs

Specification

1. Quadruple high current half-H driver IC
2. Or motor driver IC
3. Supply voltage : 5V to 7V
4. Output voltage : 5V to 36V
5. Max. current : 600mA
6. Number of pin : 16
7. Peak output current : 1.2A

CD4060 14 stage binary ripple counter 16 pins IC pack of 10pcs

Specification

1. 14-bit Binary counter or Divider IC
2. Counting range :  0 to 16383 (In decimal)
3. Operating voltage:  3V to 18V
4. Number of pins: 16
5. Maximum clock frequency: 30MHz at 15V
6. Medium speed operation :  8MHz at VDD = 10V

XTR105P 4 to 20mA Current transmitter with Sensor excitation and linearization DIP 14 pin IC

Specification

1. Supply voltage range : 7.5V to 36V
2. IC type : Current transmitter
3. Current supply : 20mA
4. Interface : 3 wire
5. Two precision current source
6. Low offset drift
7. Low output current noise

TDA4863AJ Vertical deflection booster 7 pins IC pack of 50pcs

Specification

1. Operating supply voltage : 9V to 30V
2. Flyback generator output voltage : 2.2V
3. Supply current : 6mA to 10mA
4. Power amplifier with differential inputs
5. High vertical deflection frequency up to 200 Hz

TOP245YN Extended power Flexible design, Eco-Smart, integrated off-line switcher 6 pin IC

Specification

1. Input supply voltage AC: 85V to 265V
2. Switching frequency: 66kHz - 132kHz
3. Output voltage : 12V
4. Operating supply current : 1.6mA
5. Drain voltage : 0.3V to 700V
6. Drain peak current : 2.88A
7. Type : Off line convertor
8. Extended power range
9. Wide duty cycle

TDA4864AJ Vertical deflection booster 7 pins IC pack of 10pcs

Specification

1. Operating supply voltage : 9V to 30V
2. Flyback generator output voltage : 2.2V
3. Supply current : 6mA to 10mA
4. Power amplifier with differential inputs
5. High vertical deflection frequency up to 200 Hz

CD4060 14 stage binary ripple counter 16 pins IC pack of 50pcs

Specification

1. 14-bit Binary counter or Divider IC
2. Counting range :  0 to 16383 (In decimal)
3. Operating voltage  :  3V to 18V
4. Number of pins : 16
5. Maximum clock frequency : 30MHz at 15V
6. Medium speed operation :  8MHz at VDD = 10V

UA741CP General purpose operational amplifier 8 pins IC pack of 50pcs

Specification

1. Supply voltage range 5V to 15V
2. Input offset voltage: 6V to 7.5V
3. Input offset current : 200nA to 300nA
4. Max. peak output voltage swing : 12V
5. Input resistance : 2MΩ
6. Power dissipation : 85W to 100W
