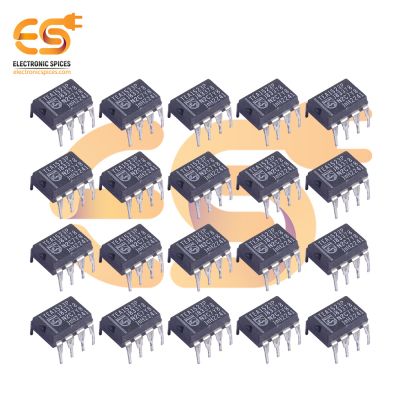

TEA1523 low power system DIP 8 pins SMPS IC pack of 50pcs

Specification

1. Supply voltage range : 10V to 40V
2. Oscillator frequency : 200KHz
3. Integrated power switch value : 6.5Ω at 650V
4. Adjustable overcurrent protection
5. Under-voltage protection
6. Temperature protection
7. Short circuit winding protection

TEA1523 low power system DIP 8 pins SMPS IC pack of 10pcs

Specification

1. Supply voltage range : 10V to 40V
2. Oscillator frequency : 200KHz
3. Integrated power switch value : 6.5Ω at 650V
4. Adjustable overcurrent protection
5. Under-voltage protection
6. Temperature protection
7. Short circuit winding protection

TO-92 LM317L, 3- Terminal adjustable output positive voltage regulator pack of 5pcs

Specification

1. Package: TO-92
2. Output Current Up To 1.5 A
3. Output Voltages 5 Volt Input Voltage 1.2V To 37V
4. Thermal Overload Protection Short Circuit Protection
5. 2 % Output Voltage Tolerance
6. Output Transition SOA Protection

AN6884 Logarithmic 5 dot LED driver SIP 9 pins IC pack of 50pcs

Specification

1. 5 dot LED bar logarithmic IC
2. Operating voltage range :  5V to 16 V
3. Circuit voltage : 6V
4. Supply current  : 12A
5. Power dissipation :  1100mW
6. Constant current output :  15 mA
7. Inbuilt high gain amplifier: 26 dB
8. Number of pin : 9
9. Low noise immunity

SG3524N Regulating pulse width modulator DIP 16 pin IC pack of 2pcs

Specification

1. Supply voltage range :  8V to 40V
2. Output voltage  :  5V
3. Output current  : 50 mA
4. Dual output
5. Topology  :  Boost, Buck, Fly-back, Forward, Push-Pull
6. Switching frequency :  722 kHz
7. Fall Time :  100 ns

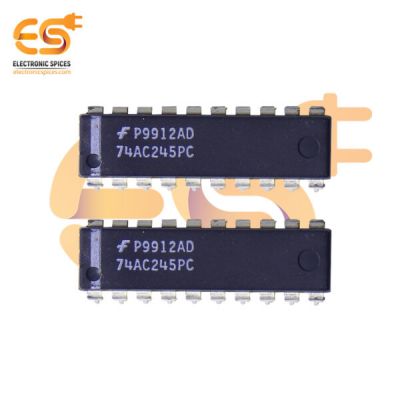

74AC245PC Octal bidirectional transceiver with 3 state input and output DIP 20 pin IC pack of 2pcs

Specification

1. Octal bidirectional transceiver
2. Supply voltage : 2V to 6V
3. Power dissipation : 45pF
4. Input capacitance : 4.5pF
5. Leakage current : 3 µA

KA2224 Dual equalizer amplifier with ALC DIP 14 pins IC pack of 50pcs

Specification

1. Dual equalizer amplifier with in-built ALC circuit
2. Excellent channel separation
3. Supply voltage : 14V
4. Power dissipation : 600mW
5. ALC max. current : 3.5mA
6. Output voltage current : 1.2V

TL072CP Dual operational amplifier 8 pins IC pack of 10pcs

Specifications

1. Dual operational amplifier
2. Number of pins : 8
3. Supply voltage range : 6V to 36V
4. Output current : 10mA
5. High slew rate : 13 V/μs
6. Low noise distortion
7. Short circuit and thermal shutdown protection

CD4053BE Triple 2 channel analog multiplexer DIP 16 pin IC pack of 2pcs

Specification

1. Wide range of digital and analog signal levels
   1. Digital : 3 V to 20V
   2. Analog : ≤ 20V_P-P
2. Gain bandwidth : 30MHz
3. Current leakage : 100nA
4. Channel to channel matching : 5Ω (ohm)
5. On state resistance : 240 Ω ( ohm )

STV9302A Vertical deflection booster for monitor or TV 2App 60V with flyback generator 7 pins IC pack of 10pcs

Specifications

1. Operating supply voltage range : 10V to 30V
2. Flyback peak voltage : 60V
3. Output peak current : 5A
4. Power amplifier
5. Flyback generator
6. Output current up to 2 App
7. Thermal protection

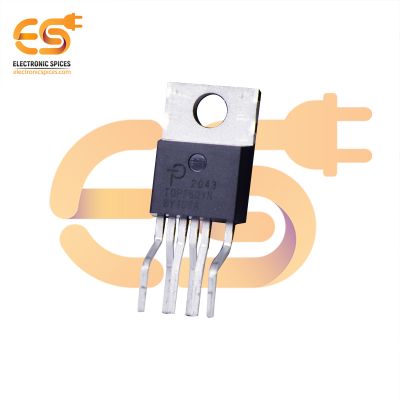

TOP250YN Extended power Flexible design, Eco-Smart, integrated off-line switcher 6 pin IC

Specification

1. Input supply voltage AC: 85V to 265V
2. Switching frequency: 66kHz - 132kHz
3. Output voltage : 12V
4. Operating supply current : 1.6mA
5. Drain voltage : 0.3V to 700V
6. Drain peak current : 10.08A
7. Type : Off line convertor
8. Extended power range
9. Wide duty cycle

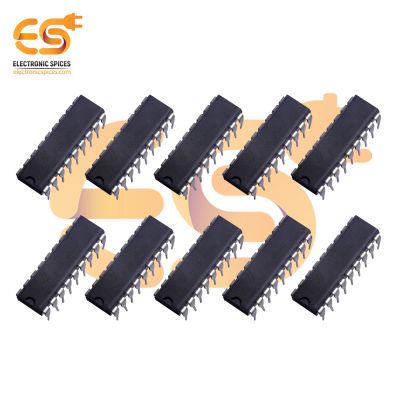

HT12D Decoder DIP 18 pins IC for remote control system pack of 50pcs

Specification

1. Function: Decoding
2. Number of pin: 18
3. Operating voltage : 5V
4. Low standby current : 4µA at 5V
5. Built-in oscillator
6. Low power and high noise immunity
