JRC2068D Low noise dual operation amplifier DIP 8 pins IC pack of 50pcs

Specifications

1. Supply voltage:  4V to 18V
2. Differential input voltage range:  30V
3. Power dissipation : 500mW
4. Voltage gain :  90 to 120 dB
5. Max. output voltage :  12V
6. Slew rate :  6V/µs

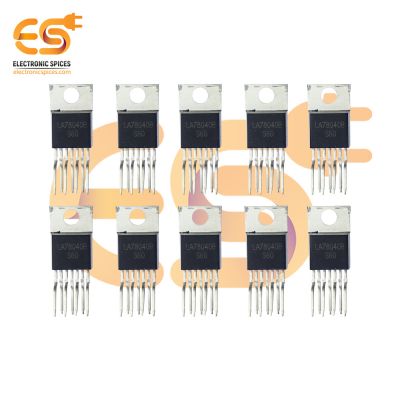

LA78040 TV and CRT display vertical output with bus control support 7 pins IC pack of 10pcs

Specification

1. Improve image quality in TV and CRT display
2. Recommended supply voltage : 24V
3. Supply voltage range : 16V to 33V
4. Power dissipation : 9W
5. Thermal resistance : 3 °C /W
6. Thermal and short circuit protection system

TL074CN Low noise JFET Quad operation amplifier DIP 14 pins IC pack of 50pcs

Specification

1. Wide power supply Range
   1. Singe supply :  10V to 30V
   2. Dual supply : ±5V to ±15V
2. Number of amplifiers : 4
3. Gain bandwidth : 3MHz
4. Current input bias : 65pA
5. Voltage input offset : 3mV

UA741CP General purpose operational amplifier 8 pins IC pack of 10pcs

Specification

1. Supply voltage range 5V to 15V
2. Input offset voltage: 6V to 7.5V
3. Input offset current : 200nA to 300nA
4. Max. peak output voltage swing : 12V
5. Input resistance : 2MΩ
6. Power dissipation : 85W to 100W

TL074CN Low noise JFET Quad operation amplifier DIP 14 pins IC pack of 10pcs

Specification

1. Wide power supply Range
   1. Singe supply:  10V to 30V
   2. Dual supply : ±5V to ±15V
2. Number of amplifiers : 4
3. Gain bandwidth : 3MHz
4. Current input bias : 65pA
5. Voltage input offset : 3mV

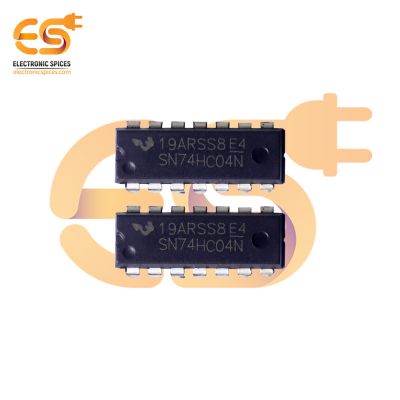

SN74HC04N Hex inverters low power DIP 14 pin IC pack of 2pcs

Specification

1. Consist of six independent inverters
2. Supply voltage range: 2V to 6V
3. Input clamp current : 20mA
4. Power dissipation capacitance per inverter (no loads) : 20pF
5. Continuous output current : 50mA
6. Low Power Consumption : 20-µA

KA2206B 2.3W Dual audio power amplifier 14 pins IC pack of 10pcs

Specification

1. Supply voltage: 15V
2. Power dissipation: 4W
3. Operating supply voltage range: 9V to 11V
4. Quiescent circuit current : 40mA to 55mA
5. Closed loop voltage gain: 43dB to 47dB
6. Output power: 2.3W

U74HC245L 2.3W Dual audio power amplifier 10 pin IC (Pack of 50pcs)

Specification:

1. Supply voltage:                              15V
2. Power dissipation:                          4W
3. Operating supply voltage range:      9V to 11V
4. Quiescent circuit current:               40mA to 55mA
5. Closed-loop voltage gain:               43dB to 47dB
6. outer power:                                    2.3W

HIP4082 80V 1.25A peak current H-bridge FET driver 16 pins IC pack of 10pcs

Specification

1. Supply voltage : 8.5V to 16V
2. Phase slew rate : 20V/ns
3. Operating current : 4A
4. Independently drives 4 N-Channel FET in half-bridge
5. Drives 1000pF load in free air at 50°C

TO-220 7809, 3-Terminal Positive Voltage Regulator IC pack of 5pcs

Specification

1. Output Current Up To 1.5 A
2. Input Voltage 8.64V To 9.36V
3. Thermal Overload Protection Short Circuit Protection
4. 2 % Output Voltage Tolerance
5. Output Transition SOA Protection

CD4049 Hex inverter buffer and convertor DIP 16 pins IC pack of 50pcs

Specification

1. Input supply voltage range: 3V to 18V
2. Supply current: 50mA
3. Temperature range:  -40 to +85°C
4. Input capacitance: 22.5pf
5. Mostly used in the voltage multiplier circuit
6. Accept high input supply voltage

TDA4865AJ Vertical deflection booster 7 pins IC pack of 10pcs

Specification

1. Operating supply voltage : 9V to 35V
2. Flyback generator output voltage : 2.2V
3. Supply current : 6mA to 10mA
4. Power amplifier with differential inputs
5. High vertical deflection frequency up to 200 Hz
