IC

SN74HC04N Hex inverters low power DIP 14 pins IC pack of 50pcs

Specification

1. Consist of six independent inverters
2. Supply voltage range: 2V to 6V
3. Input clamp current : 20mA
4. Power dissipation capacitance per inverter (no loads) : 20pF
5. Continuous output current : 50mA
6. Low Power Consumption : 20-µA

TDA4864AJ Vertical deflection booster 7 pins IC pack of 10pcs

Specification

1. Operating supply voltage : 9V to 30V
2. Flyback generator output voltage : 2.2V
3. Supply current : 6mA to 10mA
4. Power amplifier with differential inputs
5. High vertical deflection frequency up to 200 Hz

TL494 Pulse Width Modulation Controller SMD IC

Specification:-

• Mounting: SMD
• Number of: 16 Pins
• Collector output voltage: 41V
• Collector output current: 250 mA
• Storage Temperature Range: 65°C to + 150°C
• Complete PWM Power-Control Circuitry

TDA7297 Dual channel 15W + 15W stereo audio power amplifier 15 pins IC pack of 50pcs

Specifications

1. Dual-channel amplifier IC
2. Stereo output : 15W + 15W
3. Operating voltage : 6V to 18V
4. Peak output current :  2A
5. Maximum quiescent current : 65mA
6. Closed-loop voltage gain :  33dB

LM3915 Logarithmic LED dot or bar display driver 18 pins IC pack of 50pcs

Specification

1. Analog controlled LED driver IC with logarithmic output
2. Operating Voltage :  3V to 25V
3. Reference Voltage :  1.2V to 12V
4. Power dissipation : 1365 mW
5. Number of pin : 18
6. Number of controllable LED's : 10
7. Drives LEDs, LCDs, or Vacuum Fluorescents

74LS20 Dual 4-input NAND Gate SMD IC

Specification:-

• Mounting: SMD
• Input levels: CMOS level
• Supply Voltage range: 4.5 to 5.5V
• Output Current (High): -0.4mA
• Output Current (Low): 8mA
• Operating Temperature: -55°C to 125°C

PJ494CD Switch mode PWM control circuit DIP 16 pins IC pack of 10pcs

Specification

1. Complete PWM Power Control Circuitry
2. Supply voltage : 20V to 40V
3. Collector output current : 250mA
4. Oscillator frequency :  300 kHz
5. Output voltage :  5V
6. Load regulation : 15mV

TO-92 78L12, 3-Terminal Positive Voltage Regulator IC pack of 5pcs

Specification

1. Output Current Up To 1.5 A
2. Input Voltage 11.5V To 12.5V
3. Thermal Overload Protection Short Circuit Protection
4. 2 % Output Voltage Tolerance
5. Output Transition SOA Protection

CD4053BE Triple 2 channel analog multiplexer DIP 16 pins IC pack of 10pcs

Specification

1. Wide range of digital and analog signal levels
   1. Digital : 3 V to 20V
   2. Analog : ≤ 20V_P-P
2. Gain bandwidth : 30MHz
3. Current leakage : 100nA
4. Channel to channel matching : 5Ω (ohm)
5. On state resistance : 240 Ω ( ohm )

SN74HC04N Hex inverters low power DIP 14 pins IC pack of 10pcs

Specification

1. Consist of six independent inverters
2. Supply voltage range : 2V to 6V
3. Input clamp current : 20mA
4. Power dissipation capacitance per inverter (no loads) : 20pF
5. Continuous output current : 50mA
6. Low Power Consumption : 20-µA

TC4427 Power MOSFET Driver IC

Specification:-

• Supply Voltage: +22V
• Input Voltage: 730 mW
• Short Delay Times: 40 ns (typical)
• Package Power Dissipation: 50 mA
• Storage Temperature Range: -65°C to +150°C
• Maximum Junction Temperature: +150°C
• Supply Voltage Operating Range: – 4.5V to 18V
• High Capacitive Load Drive Capability: 1000 pF in 25 ns (typical)

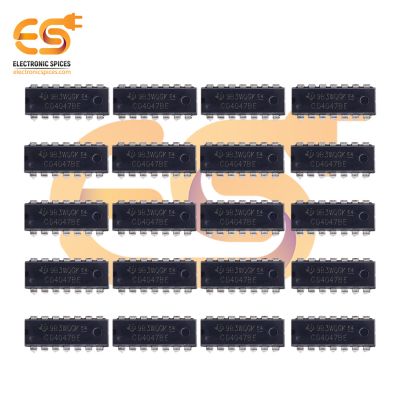

CD4047 Low power monostable astable multi vibrator 14 pins IC pack of 50pcs

Specifications

1. Low power multi vibrator circuit IC
2. Operate in both Monostable and Astable operation
3. Supply voltage range : 3V to 15V
4. DC input current  :  10mA
5. Number of pins : 14
6. Low power consumption
7. High noise immunity
