IC

74LS00 Quad 2 Input NAND Gate IC DIP-14 Package

Specification:-

• Number of pins: 14
• Logic Function: NAND
• Product Type: Logic Gates
• Supply Voltage – Max: 5.25 V
• Supply Voltage – Min: 4.75 V
• Number of Gates: 4 Gate
• Number of Input Lines: 2 Input

APR33A3 Voice Recorder & Playback IC

Specification:-

• Operating Voltage Range: 3V ~ 6.5V
• Standby Current: 1 µA
• VOUT Current: 185 mA
• Input Voltage: 0.6 V
• Operating Current (Idle): 20 mA
• Operating Current (Record): 35 mA
• Operating Current (Playback): 25 mA
• Powerful 16-Bits Digital Audio Processor

TEA1523 low power system DIP 8 pins SMPS IC pack of 50pcs

Specification

1. Supply voltage range : 10V to 40V
2. Oscillator frequency : 200KHz
3. Integrated power switch value : 6.5Ω at 650V
4. Adjustable overcurrent protection
5. Under-voltage protection
6. Temperature protection
7. Short circuit winding protection

CD4060 14 stage binary ripple counter 16 pins IC pack of 50pcs

Specification

1. 14-bit Binary counter or Divider IC
2. Counting range :  0 to 16383 (In decimal)
3. Operating voltage  :  3V to 18V
4. Number of pins : 16
5. Maximum clock frequency : 30MHz at 15V
6. Medium speed operation :  8MHz at VDD = 10V

CD4049 Hex inverter buffer and convertor DIP 16 pins IC pack of 10pcs

Specification

1. Input supply voltage range: 3V to 18V
2. Supply current: 50mA
3. Temperature range :  -40 to +85°C
4. Input capacitance : 22.5pf
5. Mostly used in voltage multiplier circuit
6. Accept high input supply voltage

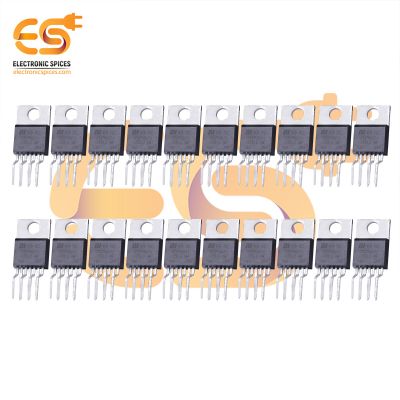

STV9302A Vertical deflection booster for monitor or TV 2App 60V with flyback generator 7 pins IC pack of 10pcs

Specifications

1. Operating supply voltage range : 10V to 30V
2. Flyback peak voltage : 60V
3. Output peak current : 5A
4. Power amplifier
5. Flyback generator
6. Output current up to 2 App
7. Thermal protection

CD4532 8 Bit Priority Encoder IC (DIP-16 Package)

Specification:-

• Noise margin (full package-temperature range):
• 0.5 V at VDD = 5 V
• 1.5 V at VDD = 10 V
• 1.5 V at VDD = 15 V
• 5-V, 10-V, and 15-V parametric ratings
• Digital input leakage: 5uA)
• Operating Temperature Range (TS): −55°C to +125°C

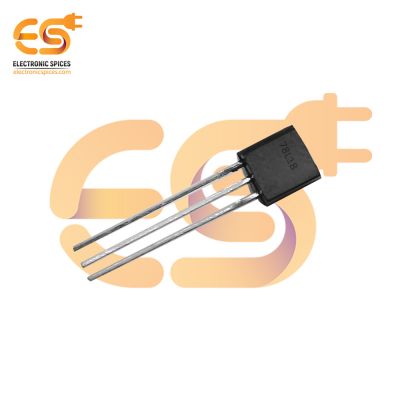

TO-92 78L18, 3-Terminal Positive Voltage Regulator IC pack of 5pcs

Specification

1. Output Current Up To 1.5 A
2. Input Voltage17.3V To 18.7V
3. Thermal Overload Protection Short Circuit Protection
4. 2 % Output Voltage Tolerance
5. Output Transition SOA Protection

MCP3208 12-Bit 8-Channel A/D Converter (ADC) with SPI Interface IC DIP-16 Package

Specification:-

• Single supply operation: 2.7V – 5.5V
• 100ksps max. sampling rate at VDD = 5V
• 50ksps max. sampling rate at VDD = 2.7V
• Industrial temp range: -40°C to +85°C
• All Inputs and Outputs w.r.t. VSS: -0.6V to VDD +0.6V
• Storage Temperature: -65°C to +150°C
• Ambient temperature with power applied: -65°C to +125°C
• Soldering temperature of leads (10 seconds): +300°C
• ESD Protection On All Pins (HBM): ≥ 4 Kv

PJ494CD Switch mode PWM control circuit DIP 16 pins IC pack of 50pcs

Specification

1. Complete PWM Power Control Circuitry
2. Supply voltage: 20V to 40V
3. Collector output current : 250mA
4. Oscillator frequency :  300 KHz
5. Output voltage :  5V
6. Load regulation : 15mV

TDA2003 10W Car radio audio amplifier DIP 7 pins IC pack of 50pcs

Specifications

1. Operating voltage :  8V to 18V
2. Power dissipation : 20W
3. Voltage gain : 80dB
4. Supply voltage rejection :  36dB
5. Short circuit protection
6. Thermal protection

MB10s 4 PIN SMD 0.5A Bridge Rectifier IC

Specification:-

• Input Voltage: 50-1000V
• Maximum RMS Bridge Input Voltage: 700V
• Maximum DC Blocking Voltage: 1000V
• Maximum Average Forward Output Current: 0.5A
• Maximum Forward Voltage Drop per Bridge: 1V
• Operating Temperature Range: -55°C to + 150°C
