IC

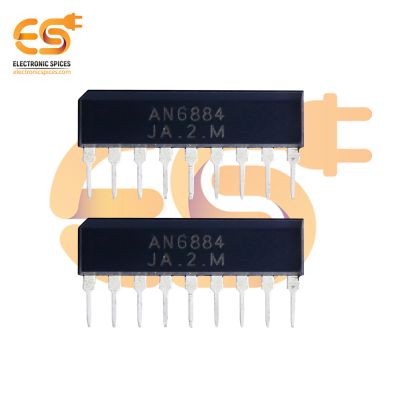

AN6884 Logarithmic 5 dot LED driver SIP 9 pin IC pack of 2pcs

Specification

1. 5 dot LED bar logarithmic IC
2. Operating voltage range:  5V to 16 V
3. Circuit voltage: 6V
4. Supply current: 12A
5. Power dissipation:  1100mW
6. Constant current output:  15 mA
7. Inbuilt high gain amplifier: 26 dB
8. Number of pins: 9
9. Low noise immunity

LM741 Operational amplifier 8 pin IC pack of 2pcs

Specification

1. Operational amplifier
2. Number of pins: 8
3. Supply voltage: 18V
4. Differential input voltage: 15V
5. Differential voltage amplification:  200V/mv
6. Supply current:  1.5mA
7. Short circuit and overload protection
8. Low power consumption

VIPER12A Low power off-line SMPS primary switcher 8 pin IC pack of 2pcs

Specification

1. Output voltage:  5V to 16V
2. Input voltage : 85V to 265V AC
3. Input voltage frequency: 50/60Hz
4. Output current: 200mA
5. Efficiency:  80%
6. Rise time:  50ns
7. Fall time: 100ns

LM324 Quad or four operational amplifier 14 pins IC pack of 10pcs

Specification

1. Integrated with four Op-Amp
2. Wide power supply Range
3. Singe supply: 3V to 32V
4. Dual supply: 1.5V to 16V
5. Low Supply Current: 700uA
6. Unity-Gain Bandwidth: 1MHz
7. DC Voltage Gain: 100dB

TDA2003 10W Car radio audio amplifier DIP 7 pin IC pack of 2pcs

Specifications

1. Operating voltage:  8V to 18V
2. Power dissipation: 20W
3. Voltage gain: 80dB
4. Supply voltage rejection:  36dB
5. Short circuit protection
6. Thermal protection

TO-220 7812, 3-Terminal Positive Voltage Regulator IC pack of 5pcs

Specification

1. Output Current Up To 1.5 A
2. Input Voltage 11.5V To12.5V
3. Thermal Overload Protection Short Circuit Protection
4. 2 % Output Voltage Tolerance
5. Output Transition SOA Protection

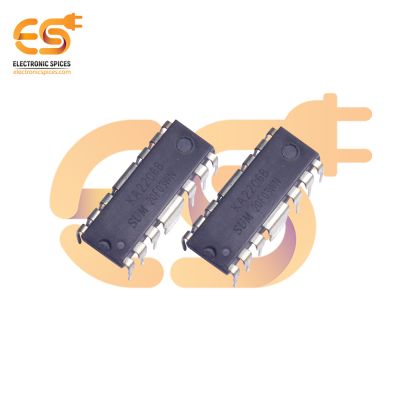

KA2206B 2.3W Dual audio power amplifier 14 pin IC pack of 2pcs

Specification

1. Supply voltage: 15V
2. Power dissipation: 4W
3. Operating supply voltage range: 9V to 11V
4. Quiescent circuit current : 40mA to 55mA
5. Closed-loop voltage gain: 43dB to 47dB
6. Output power: 2.3W

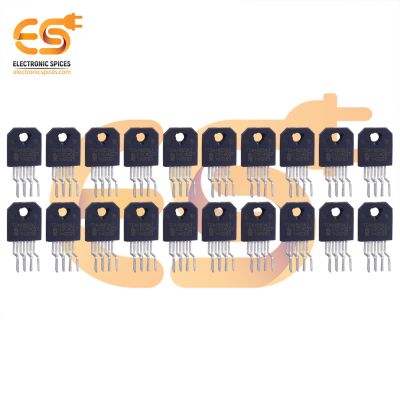

TDA4865AJ Vertical deflection booster 7 pins IC pack of 50pcs

Specification

1. Operating supply voltage : 9V to 35V
2. Flyback generator output voltage : 2.2V
3. Supply current : 6mA to 10mA
4. Power amplifier with differential inputs
5. High vertical deflection frequency up to 200 Hz

LM3914 Logarithmic LED dot or bar display driver 18 pin IC pack of 2pcs

Specification

1. Analog controlled LED Driver IC
2. Number of controllable LEDs : 10
3. Operating voltage :  3V to 18V
4. Input analog voltage range : 1.2V to 12V
5. LED sink current :  2mA to 30mA (programmable)
6. Both Dot and Bar display mode available

UTC2030A 18 Watt HI - FI Amplifier and 35 watt driver 5 pin linear IC pack of 2pcs

Specification

1. Audio power amplifier
2. Power supply range:  6V to 36V
3. Output power : 18 Watts
4. Number of pins : 5
5. Maximum current flow : 900mA
6. Thermal & short circuit protection

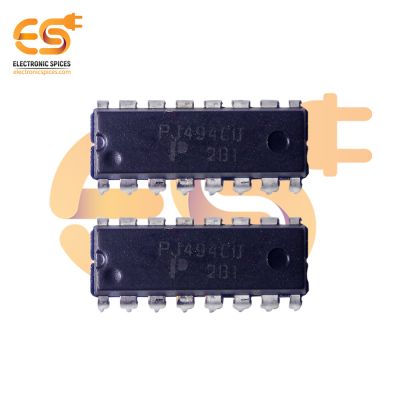

PJ494CD Switch mode PWM control circuit DIP 16 pin IC pack of 2pcs

Specification

1. Complete PWM Power Control Circuitry
2. Supply voltage: 20V to 40V
3. Collector output current: 250mA
4. Oscillator frequency:  300 KHz
5. Output voltage:  5V
6. Load regulation: 15mV

CD4440 40 watt Dual channel audio amplifier SIP 14 pins IC pack of 10pcs

Specification

1. Dual channel amplifier IC
2. Operating voltage : 12V to 18V
3. Number of pin : 14
4. Surge supply voltage :  50V
5. Power dissipation :  25W
6. Output power
   • Dual-mode :   40W
   • Bridge mode :  50W
7. Ripple rejection ratio :  46dB
8. Quiescent current :  100 to 200mA
