IC

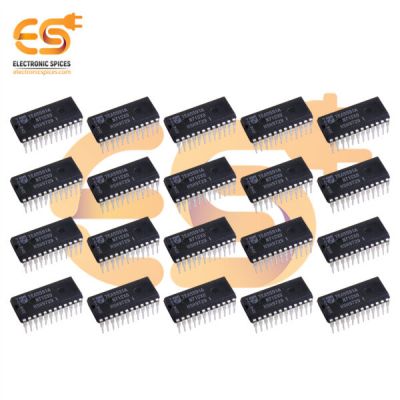

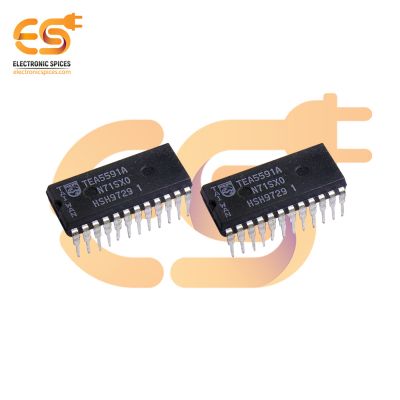

TEA5591A AM/FM radio receiver circuit DIP 24 pins IC pack of 50pcs

Specification

1. Supply voltage: 1.8V to 15V
2. Current consumption : 14mA for AM/ 17mA for FM
3. Separate IF input pins for AM and FM
4. LED AM/FM indicator
5. A DC AM/FM switch facility

TO-220 7805, 3-Terminal Positive Voltage Regulator IC pack of 5pcs

Specification

1. Output Current Up To 1.5 A
2. Input Voltage 4.8V To 5.2V
3. Thermal Overload Protection Short Circuit Protection
4. 2 % Output Voltage Tolerance
5. Output Transition SOA Protection

TA8263BH 43W 4 Channel audio power amplifier bipolar linear 25 pin IC pack of 2pcs

Specification

1. Supply voltage range : 9V to 18V
2. Operating voltage : 15V
3. Power dissipation : 43W
4. High power output
5. Built-in diagnosis circuit
6. Low distortion ratio
7. Low noise

PJ494CD Switch mode PWM control circuit DIP 16 pin IC pack of 2pcs

Specification

1. Complete PWM Power Control Circuitry
2. Supply voltage: 20V to 40V
3. Collector output current: 250mA
4. Oscillator frequency:  300 KHz
5. Output voltage:  5V
6. Load regulation: 15mV

JRC2068D Low noise dual operation amplifier DIP 8 pin IC pack of 2pcs

Specifications

1. Supply voltage:  4V to 18V
2. Differential input voltage range:  30V
3. Power dissipation: 500mW
4. Voltage gain:  90 to 120 dB
5. Max. output voltage:  12V
6. Slew rate:  6V/µs

TDA7294 100 watts Audio power amplifier 15 pins IC pack of 10pcs

Specification

1. Audio power amplifier
2. Supply voltage: 50 V
3. Output peak current : 10 A
4. Operating ambient temperature range : 0 to 70 °C
5. Open-loop voltage gain :  80 dB
6. Output power : up to 100 watts
7. Short circuit and thermal protection

CD4440 40 watt Dual channel audio amplifier SIP 14 pins IC pack of 10pcs

Specification

1. Dual channel amplifier IC
2. Operating voltage : 12V to 18V
3. Number of pin : 14
4. Surge supply voltage :  50V
5. Power dissipation :  25W
6. Output power
   • Dual-mode :   40W
   • Bridge mode :  50W
7. Ripple rejection ratio :  46dB
8. Quiescent current :  100 to 200mA

M57962L 12 pin hybrid IC for driving IGBT modules

Specification

1. Supply voltage: 12V DC
2. Driver configuration: low slide
3. Peak output current : 5A
4. Input delay : 1µs
5. Output delay : 1µs
6. Output current : 0.5A

2281 Dual channel LED lever meter driver monolithic DIP 16 pin IC pack of 2pcs

Specification

1. 100% Original and new product
2. Wide operating range:  5V to 14V
3. Power dissipation: 600mW
4. Voltage gain: 13.4 dB
5. Capable of driving red, green, and yellow LEDs
6. High input impedance
7. Applicable to 10-dot mono output

UC3843AN PWM current mode controller DIP 8 pin IC pack of 2pcs

Specification

1. PWM controller
2. Operating Voltage:  7V to 8V
3. Output pin current :  1A
4. Analog input range  :  -0.3V to 6.3V
5. Oscillation Frequency :  52 approx.
6. Gain value  :  3V
7. Maximum source current :  22mA

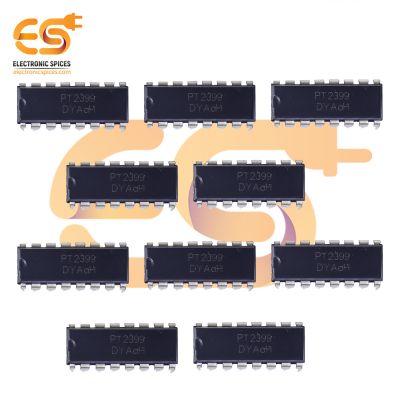

PT2399 Digital delay echo audio processor DIP 16 pins IC pack of 10pcs

Specification

1. Audio echo processor IC for the digital delay
2. Supply voltage : 12V
3. Clock frequency  :  4MHz
4. Maximum Voltage gain :  2.5dB
5. Power Supply Rejection Ratio : -40dB

CD4047 Low power monostable astable multi vibrator 14 pin IC pack of 2pcs

Specifications

1. Low power multi vibrator circuit IC
2. Operate in both Monostable and Astable operation
3. Supply voltage range : 3V to 15V
4. DC input current  :  10mA
5. Number of pins : 14
6. Low power consumption
7. High noise immunity
