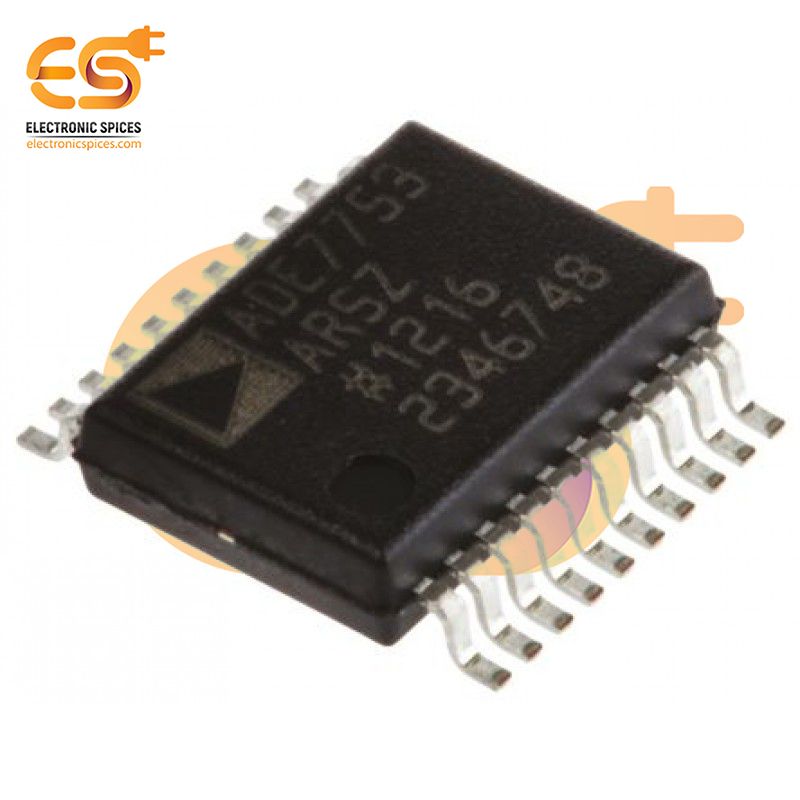

ADE7753 Single-Phase Multi-Function Metering SMD IC
Specification:-
- Mounting: SMD
- Number of: 20 Pins
- Reference 2.4 V with external overdrive capability
- Single 5 V supply, low power (25 mW typical)
- On-chip temperature sensor (±3°C typical)
- Interrupt request pin (IRQ) and status register
SKU: YH8501A
ADE7753 Single-Phase Multi-Function Metering SMD IC
The ADE7753 is a Single-Phase Multi-Function Metering IC from Analog Devices, designed to measure electrical parameters for accurate energy metering applications in both residential and industrial environments. This SMD IC integrates a high level of functionality into a compact form factor, making it ideal for use in energy meters, smart meters, and power monitoring systems. It supports the measurement of active power, apparent power, reactive power, and other related parameters, providing a complete solution for power measurement in a single device. The ADE7753 is capable of measuring power consumption with high accuracy by employing a delta-sigma analog-to-digital (ADC) architecture, along with sophisticated signal conditioning circuits. It uses two voltage and current channels, which allow for precise calculation of energy consumption in a single-phase system. The IC is designed to operate with an internal reference voltage, ensuring stable operation even across wide operating conditions.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Low Power Consumption
- Compact SMD package
- Accurate and low-power operation
- Single-phase energy metering for active, reactive, and apparent power.
