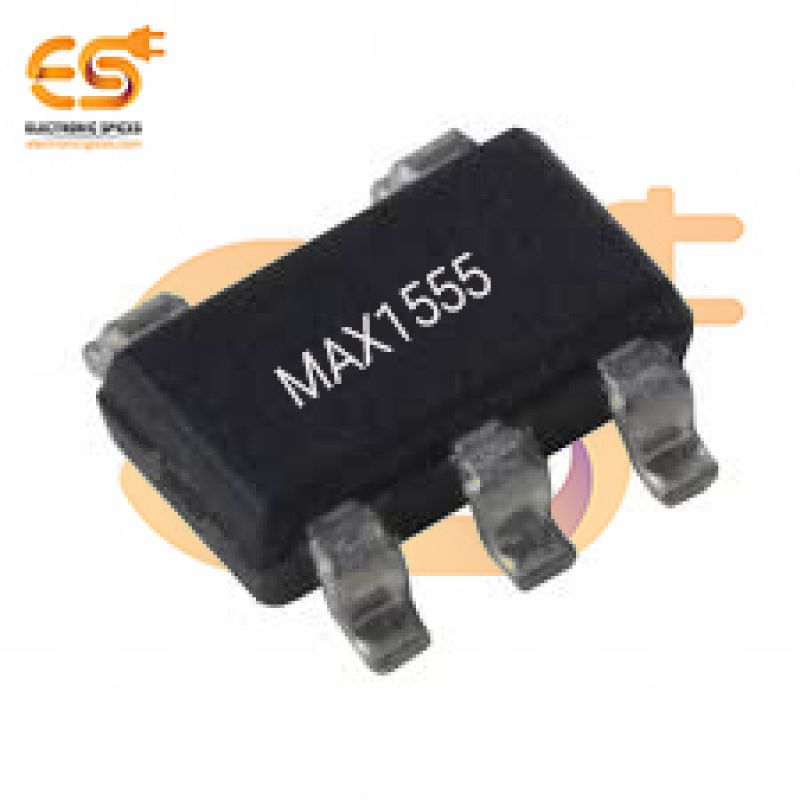

MAX1555 Lithium Ion/Polymer USB Battery Charger SMD IC (SOT-23 Package)
Specification:-
- 5-Pin Thin SOT23 Package
- Power Dissipation: 727mW
- Lead Temperature: +300°C
- Operating Temperature Range: -40°C to +85°C
- Junction Temperature Range: -40°C to +150°C
- Storage Temperature Range: -65°C to +150°C
SKU: LF8501A
MAX1555 Lithium Ion/Polymer USB Battery Charger SMD IC (SOT-23 Package)
The MAX1555 is a Lithium-Ion/Polymer USB battery charger SMD IC housed in a compact SOT-23 package, specifically designed for applications requiring USB or DC input charging. This IC simplifies the process of integrating charging functionality into portable devices, allowing for efficient charging from both USB ports and external DC power sources. Key features of the MAX1555 include its single-cell Li-Ion or Li-Polymer battery charging capability and its ability to seamlessly switch between USB and DC inputs, offering flexibility in charging options. The IC integrates automatic power source selection, directing the charge current based on the input availability without the need for additional switching components. The MAX1555 supports a charging current up to 280 mA from USB power and up to 500 mA from a DC source, making it suitable for small, battery-powered gadgets such as MP3 players, mobile accessories, and other portable electronics. The built-in thermal regulation ensures safe operation by controlling the charging current to prevent overheating.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Compact SMD package
- Charge Status Indicator
- Charge from USB or AC Adapter
