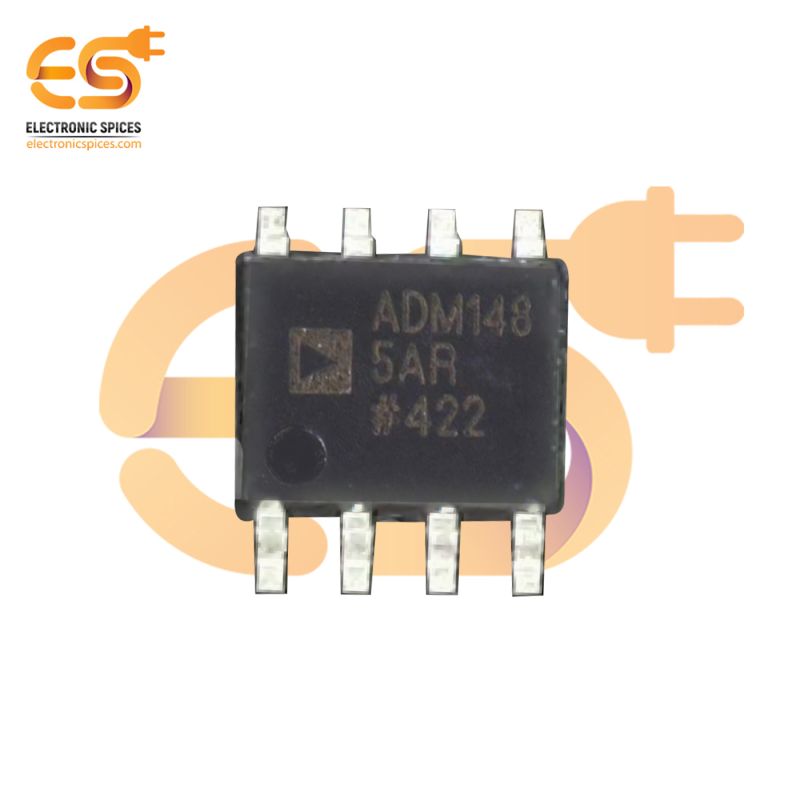

ADM1485AR 1/1 Transceiver Half Interface IC RS422, RS485 8-SOIC
Brand: Analog Devices Inc.Specification:-
- Communication Standard: RS-422, RS-485
- Data Rate: Up to 5 Mbps
- Package: 8-pin SOIC
- Supply Current-Max: 2.2 mA
- Supply Voltage-Max: 5.25 V
- Supply Voltage-Min: 4.75 V
- Supply Voltage-Nom: 5 V
- Operating Temperature Range: -40°C to 85°C
SKU: DD8542A
ADM1485AR 1/1 Transceiver Half Interface IC RS422, RS485 8-SOIC
The ADM1485AR 1/1 transceiver is engineered to facilitate half-duplex communication on multipoint bus transmission lines. It features differential signaling for RS-422 and RS-485 communication protocols, providing reliable data transfer over long distances and in electrically noisy environments. The device can handle data rates up to 5 Mbps, ensuring fast and efficient communication. This transceiver includes built-in protections such as thermal shutdown and short-circuit protection, enhancing its reliability and durability. Its wide operating voltage range and low power consumption make it suitable for a variety of applications, including those with stringent power requirements. The 8-SOIC package ensures a small footprint, allowing for easy integration into space-constrained designs.
Applications :-
- Digital Devices
- Automotive Electronics
- Industrial Control Systems
- Embedded Systems
Features :-
- High-Speed Access
- Low Power Consumption
- Proper PCB layout and design
- Simplified power design requirements
- Suitable for various environmental conditions
