Specification:-
- Package: SOIC 24-pin (0.295, 7.50mm)
- Terminal Position: DUAL
- Data Rate: 120kbps
- Number of Drivers/Receivers: 5/3
- Supply Current-Max: 9 mA
- Supply Voltage-Max: 5.25 V
- Supply Voltage-Min: 4.75 V
- Supply Voltage-Nom: 5 V
- Operating Temperature Range: -40°C to 85°C
SKU: SV8542A

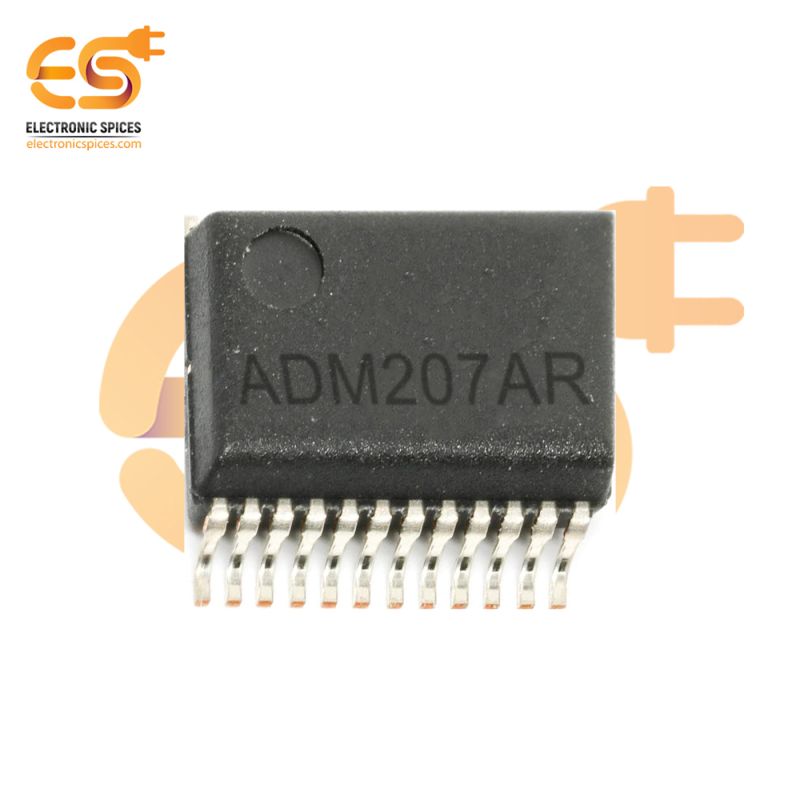

ADM207AR-REEL Interface Transceiver IC 5/3 RS232 24-SOIC
The ADM207AR-REEL is a high-performance interface transceiver IC designed for RS-232 communication, featuring a configuration of five transmitters and three receivers, enabling comprehensive full-duplex communication between data terminal equipment (DTE) and data communication equipment (DCE). The device is engineered to meet the rigorous demands of the RS-232 standard, ensuring reliable data transmission and reception over extended distances. Operating from a single 5V power supply, the ADM207AR-REEL incorporates integrated charge-pump voltage converters, eliminating the need for external bipolar power supplies. This makes it particularly suitable for designs where space and power efficiency are critical. The 24-SOIC package offers a compact solution, facilitating easy integration into a wide variety of electronic devices.
Applications:-
- Digital Devices
- Automotive Electronics
- Industrial Control Systems
- Embedded Systems
Features:-
- 5/3 Transceiver Configuration
- High-Speed Access
- Low Power Consumption
- Proper PCB layout and design
- Simplified power design requirements
- Suitable for various environmental conditions
