Specification:-
- Package: SOIC18 (0.295, 7.50mm)
- Terminal Position: DUAL
- Data Rate: 200kbps
- Number of Drivers/Receivers: 2/2
- Supply Voltage-Max: 5.25 V
- Supply Voltage-Min: 4.75 V
- Supply Voltage-Nom: 5 V
- Operating Temperature Range: -40°C to 85°C
SKU: OL8542A

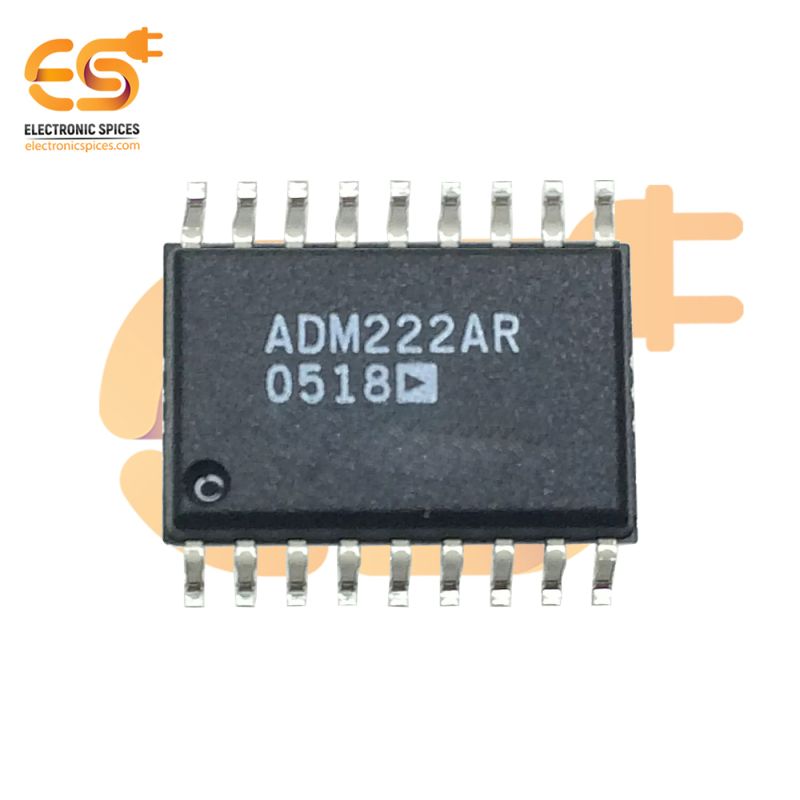

ADM222AR Interface Transceiver IC 2/2 RS232 18-SOIC
The ADM222AR is a high-performance transceiver IC that supports full-duplex RS-232 communication. With two transmitters and two receivers, it facilitates bidirectional data transfer between data terminal equipment (DTE) and data communication equipment (DCE). The device is designed to meet the stringent requirements of the RS-232 standard, ensuring reliable data transmission and reception over extended distances. The transceiver operates from a single 5V power supply and features integrated charge-pump voltage converters that eliminate the need for external bipolar power supplies. This makes the ADM222AR particularly suitable for space-constrained designs and applications where power efficiency is critical. The 18-SOIC package ensures a compact footprint, making it easy to integrate into a variety of electronic devices.
Applications:-
- Digital Devices
- Automotive Electronics
- Industrial Control Systems
- Embedded Systems
Features:-
- 2/2 Transceiver Configuration
- High-Speed Access
- Low Power Consumption
- Proper PCB layout and design
- Simplified power design requirements
- Suitable for various environmental conditions
