Specification:-
- Package: TSSOP-8 (0.173", 4.40mm)
- No. of Pins: 8-Pins
- Memory Size: 4Kb (512 x 8, 256 x 16)
- Maximum Clock Frequency: 2 MHz
- Supply Voltage Min: 2.7 V
- Supply Voltage Max: 5.5 V
- Operating Temperature: -40°C ~ 85°C
SKU: JN8526B1

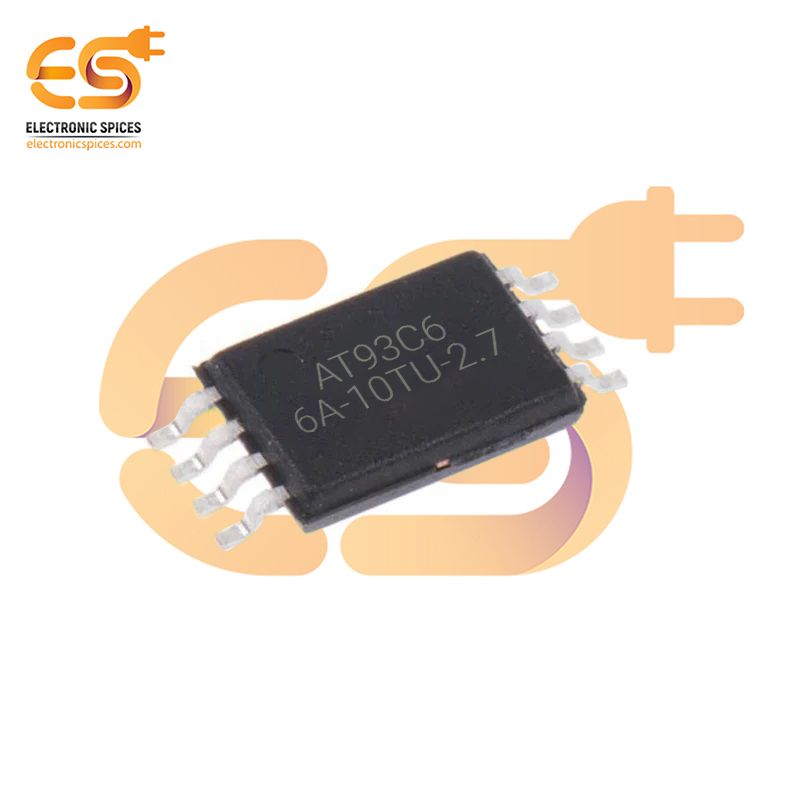

AT93C66A-10TU-2.7 EEPROM Memory IC 8-TSSOP
The AT93C66A-10TU-2.7 is a high-performance EEPROM Memory IC from Microchip Technology, offering a substantial 4Kbit (512 x 8 or 256 x 16) non-volatile memory storage capacity. This EEPROM is encapsulated in a compact 8-TSSOP (Thin Shrink Small Outline Package) that measures significantly smaller than traditional packages, making it ideal for applications where space is at a premium. The device operates using a three-wire serial interface, which includes chip select (CS), clock (SK), and data input/output (DI/DO) lines, simplifying integration with microcontrollers and other digital systems. Designed to operate at clock frequencies up to 2 MHz, the AT93C66A-10TU-2.7 enables fast read and write operations, ensuring efficient data management in time-sensitive applications. Its wide operating voltage range from 2.7V to 5.5V provides compatibility with various power supply configurations, making it versatile for different application needs. The device supports both byte and word addressing, providing flexibility in data handling.
Features:-
- Simple three-wire interface.
- Low Power Consumption
- Supports both 8-bit and 16-bit data words.
- Suitable for industrial control systems
- Low-voltage and Standard-voltage Operation
