SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

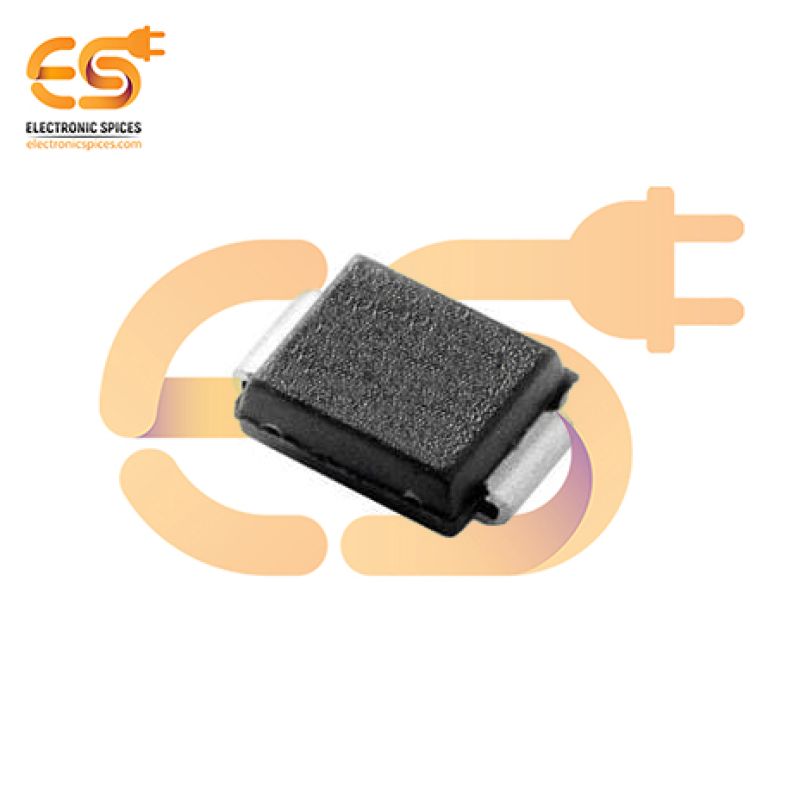

B1100B-13-F Diode Rectifier 100V 1A Surface Mount SMB / DO-214AA

Brand: Diodes Incorporated

Specification:-

  • Package: SMD4 Gull Wing / DF-S
  • No. of Pins: 2 Pins
  • Forward Current: 1 A
  • Reverse Current: 500 uA
  • Forward Surge Current: 30 A
  • Repetitive Reverse Voltage: 100 V
  • Operating Temperature: -65°C to 150°C
Available in Pack Of:

SKU: JB8470A

MRP Rs. 705.00
Rs. 500.00 (Incl. Tax)
Rs. 423.73 (+18% GST extra)
Rs. 423.73 / pack of 1 = Rs. 423.73 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied

B1100B-13-F Diode Rectifier 100V 1A Surface Mount SMB / DO-214AA

The B1100B-13-F is a high-efficiency Schottky rectifier diode designed for low forward voltage drop and fast switching applications. Encased in a SMB (DO-214AA) surface-mount package, this diode is compact and ideal for high-density circuit designs. It features a maximum reverse voltage of 100V and supports a continuous forward current of 1A, making it suitable for a wide range of power rectification and voltage clamping applications. One of the key advantages of the B1100B-13-F is its low forward voltage drop, which minimizes power loss and improves efficiency, especially in applications where energy conservation is critical. The device also exhibits excellent temperature stability, with an operational temperature range that makes it suitable for demanding environments, including consumer electronics, power supplies, and automotive systems. This Schottky diode's high-speed switching characteristics make it a preferred choice for use in switch-mode power supplies (SMPS), DC-DC converters, freewheeling diodes, and reverse polarity protection circuits. The SMB package ensures robustness and ease of integration into automated assembly lines, supporting both leaded and lead-free soldering processes.

Features:-

  • High-Speed Performance
  • Low Power Consumption
  • Wide Operating Voltage Range
