Specification:-
- Package: SOIC-8 (0.154", 3.90mm)
- No. of pins: 8 pin
- Organization: 256X8
- Clock Frequency: 400 kHz
- Supply Voltage-Max (Vsup): 6 V
- Supply Voltage-Min (Vsup): 2.5 V
- Supply Voltage-Nom (Vsup): 3 V
- Operating Temperature: 70°C
SKU: KU8542E1

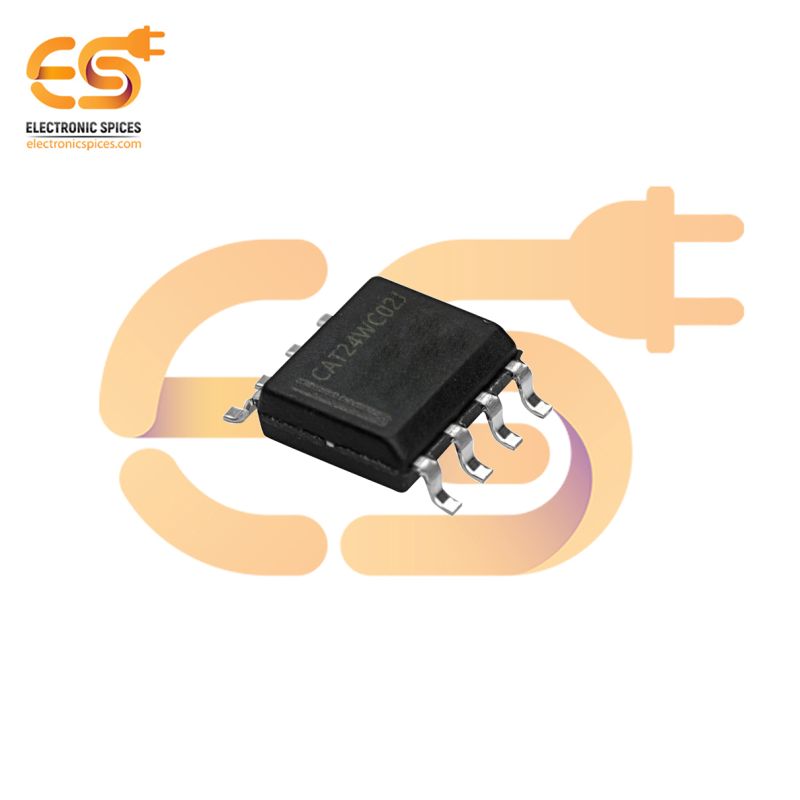

CAT24WC02J EEPROM Memory IC 8-SOIC
The CAT24WC02J is a 2Kbit EEPROM Memory IC designed for efficient data storage and retrieval. It operates using the I²C (Inter-Integrated Circuit) protocol, which allows for easy communication with other devices over a two-wire interface. With a data transfer rate of up to 400 kHz, this EEPROM ensures quick access to stored information. The device features an 8-pin SOIC (Small Outline Integrated Circuit) package, making it compact and suitable for various applications, including microcontroller memory expansion, data logging, and configuration storage. This EEPROM is known for its low power consumption, ensuring minimal energy usage during operation. It also offers a fast write cycle time of 1 µs, enabling rapid data writing. The CAT24WC02J is reliable, with a high endurance rating, capable of withstanding numerous write and erase cycles.
Features:-
- 2Kbit Storage Capacity
- 400 kHz Data Transfer Rate
- Low Power Consumption
- Long-term reliability
- Space-saving design suitable for tight spaces
