Specification:-
- Package: PDIP16 (0.300", 7.62mm)
- Number of Circuits: 1 Circuit
- Propagation Delay Time: 295 ns
- Supply Voltage - Min: 2 V
- Supply Voltage - Max: 6 V
- Low Level Output Current: 7.8 mA
- High Level Output Current: - 7.8 mA
SKU: FV8542A

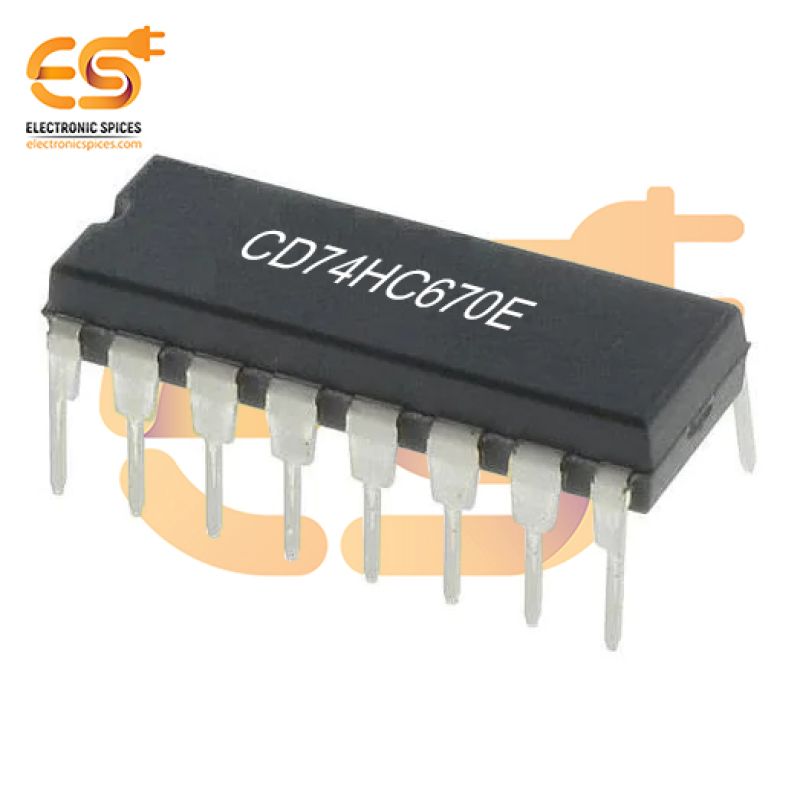

CD74HC670E Shift Register File 1-Element 4 Bit Logic IC 16-PDIP
The CD74HC670E is a high-speed CMOS logic IC that functions as a 4-bit shift register file. This versatile device features 1 element with 4 bits of storage, designed to offer efficient data transfer and temporary data storage in digital circuits. Encased in a 16-pin PDIP (Plastic Dual-Inline Package), it is suited for through-hole mounting and is compatible with standard TTL logic levels, making it a reliable choice for integration into a variety of digital systems. The CD74HC670E supports 4 data inputs and 4 outputs, with the ability to select and shift data between them efficiently. It operates with a wide supply voltage range of 2V to 6V, making it compatible with various power systems. Additionally, its low power consumption ensures energy-efficient operation in complex circuits. The CD74HC670E is ideal for use in data-intensive applications requiring efficient shifting and storage of binary information, such as control systems, memory interfaces, and digital signal processing circuits. Its robust design and high-speed operation make it a versatile component in both educational and industrial electronic projects.
Features:-
- CMOS/TTL compatible inputs and outputs.
- Suitable for power-sensitive applications.
- Designed for reliable operation across standard commercial temperature ranges.
Applications: Data storage, serial-to-parallel and parallel-to-serial conversion, and general-purpose logic operations.
