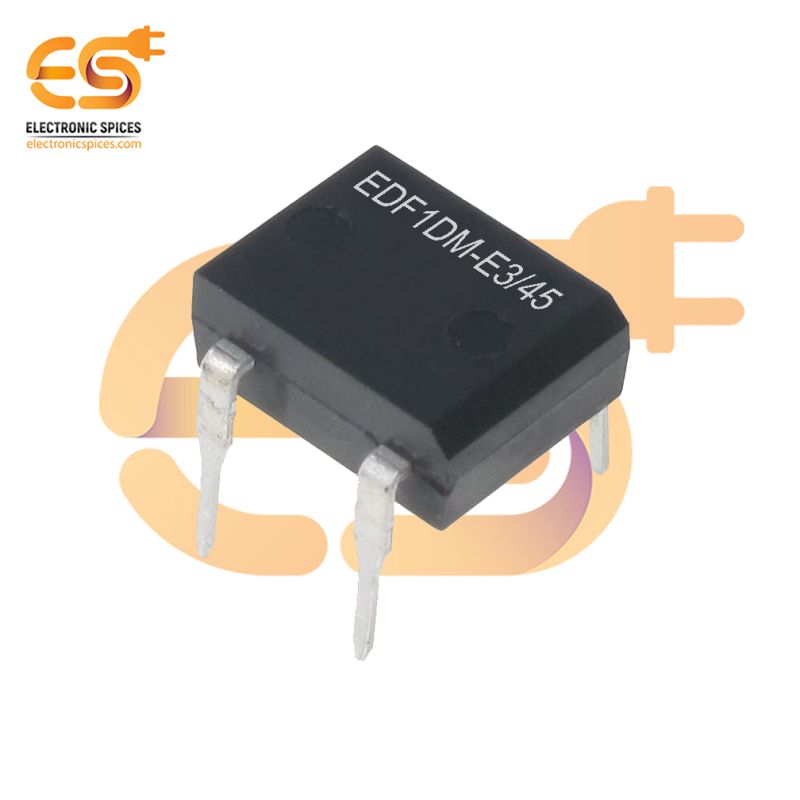

EDF1DM-E3/45 200V Through Hole Single Phase Standard Bridge Rectifier DFM / 4-EDIP
Specification:-
- Package: EDIP4 (0.300", 7.62mm)
- Type: Single Phase Bridge
- Mounting Style: Through Hole
- Termination Style: Solder Pin
- Peak Reverse Voltage: 200 V
- Vf - Forward Voltage: 1.05 V
- Max Surge Current: 50 A
SKU: WU8535A
EDF1DM-E3/45 200V Through Hole Single Phase Standard Bridge Rectifier DFM/4-EDIP
The EDF1DM-E3/45 is a 200V single-phase bridge rectifier designed for high-power applications, particularly in AC to DC conversion systems. It is packaged in a DFM / 4-EDIP through-hole configuration, which is suitable for applications requiring robust power handling and thermal performance. This rectifier is commonly used in power supplies, motor control circuits, and other power conversion applications that require high reliability and efficiency. With a reverse voltage rating of 200V, the EDF1DM-E3/45 can safely handle moderate to high voltage loads. It is capable of rectifying AC power into DC power while maintaining high efficiency, which is essential in applications such as DC power supplies, battery chargers, and industrial electronics. Its through-hole package ensures solid mechanical support and enhanced heat dissipation, which allows it to perform efficiently even under high current conditions.
Feature:-
- Reverse Voltage Rating
- High current capability
- Designed for single-phase AC to DC rectification
