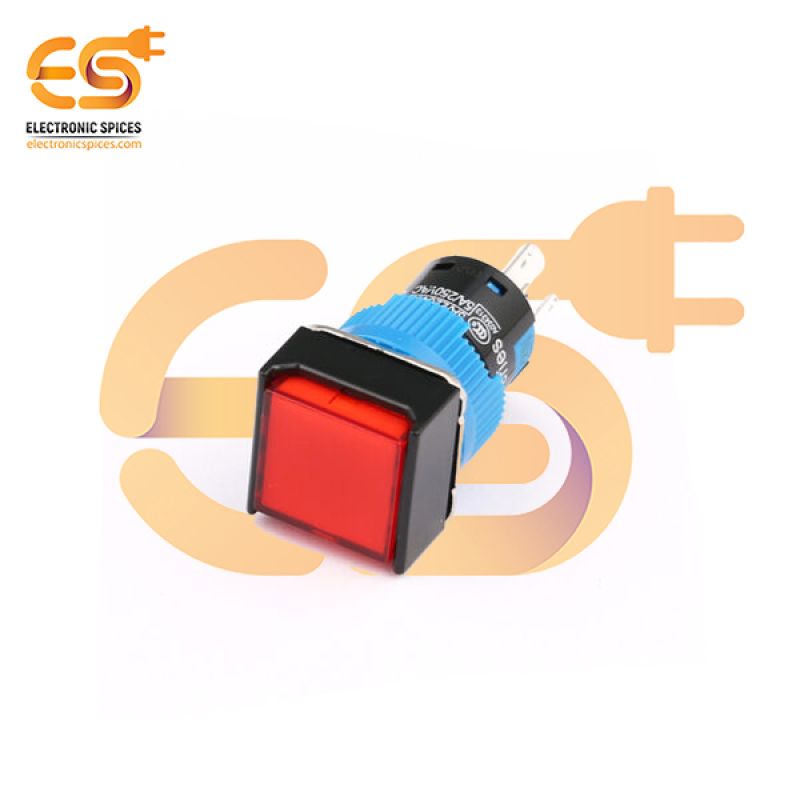

HBDS1-AF-11D/220V/R Plastic Body Push Button Switch with Red Indicator
Specification:-
- Product model: HBDS1-AF-11D/220V/R
- Head Shape: Square
- Mounting Hole Size: 16mm
- Rated voltage: 220V
- Rated current: 5A
- Switch Value: Ith: 5A, UI: 250V
- Waterproof: IP40/IP65
- Terminal type: Pin terminal
- Contact resistance: ≤50 mΩ
- Insulation resistance: ≥100MΩ
- Working environment temperature: -25℃～+65℃
SKU: DT9606A
HBDS1-AF-11D/220V/R Plastic Body Push Button Switch with Red Indicator
The HBDS1-AF-11D/220V/R Plastic Body Push Button Switch with Red Indicator is a high-quality, momentary-action switch designed for control and signaling applications in industrial, commercial, and DIY electrical systems. With its durable plastic housing, it offers a lightweight yet robust solution that is resistant to corrosion, dust, and moisture, making it ideal for use in a variety of operating environments. Operating at 220V AC, this push button is equipped with a red LED indicator light that provides immediate visual feedback when the switch is activated, enhancing safety and efficiency during operation. The switch features a 1NO+1NC contact configuration (one normally open and one normally closed), allowing flexible integration into both simple and complex circuit systems. Its momentary design means the button returns to its original position after being pressed, commonly used in applications like machine start/stop controls, alarm resets, or signal triggering. Its compact form factor ensures a secure and easy panel mount installation, conforming to standard cut-out sizes. The red indicator light serves as a warning or active status signal, commonly representing "stop" or "emergency" functions in control systems. Overall, this switch combines reliability, clarity, and ease of use, making it a smart addition to any control panel or automation project.
Feature:-
- Momentary Operation
- Durable Plastic Body
- Panel Mount Design
- Dust and Moisture Resistant
- Space-saving design fits well in confined panel layouts.
- Contact Configuration: 1NO + 1NC (One Normally Open and One Normally Closed contact) for versatile control options.
Get Product Suggestions!
AI-Powered Suggestions
Frequently Asked Questions
We offer a wide range of switches including push button switches, toggle switches, momentary switches, self-lock switches, and smart WiFi switch modules. Options come in different sizes (12mm, 16mm, 19mm), colors (blue, green, yellow, white), and indicator lights for versatile applications.
Yes! Our collection includes Mini WiFi Smart Switch Modules that support app and voice control, making them perfect for smart home automation. Additionally, push button and toggle switches are widely used in DIY electronics, robotics, and educational projects.
Yes. Many of our switches come with built‑in LED indicators (blue, green, yellow, white) for Easy status monitoring. These are Especially useful in control panels, machinery, and DIY electronics projects where visibility matters.
We stock nickel‑plated brass push button switches (IP65 rated) and high‑current toggle switches that are suitable for industrial control panels, machinery, and automotive applications. For heavy loads, always check the voltage and current rating before installation.
Consider these factors :
- Type of operation (momentary vs self‑lock)
- Size & mounting hole (12mm, 16mm, 19mm)
- Current & voltage rating (AC 125V 3A, AC 250V 1.5A, etc.)
- Indicator requirement (LED or non‑LED)
- Application (DIY, home automation, industrial use)
Our filters and product Descriptions make it Easy to select the right switch.
. SPST (Single Pole Single Throw): Simple ON/OFF switch.
. SPDT (Single Pole Double Throw): One input, two outputs – used for selecting between two circuits.
DPDT (Double Pole Double Throw) : Controls two separate circuits simultaneously, often used in motor direction control
