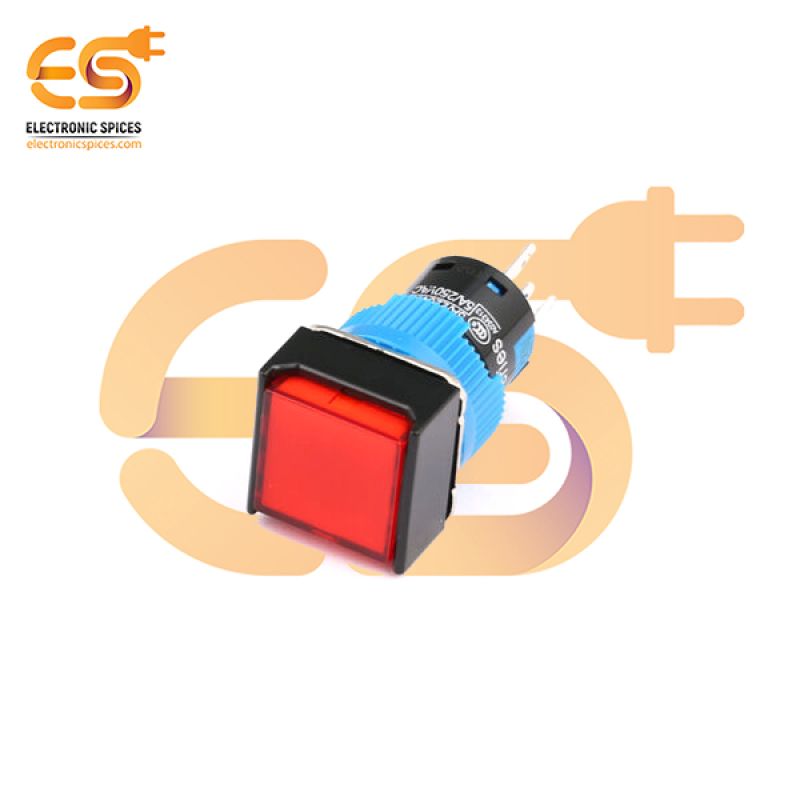

HBDS1-AF-11DZ/24V/R Plastic Body Push Button Switch with Red Indicator
Specification:-
- Product model: HBDS1-AF-11DZ/24V/R
- Head Shape: Square
- Mounting Hole Size: 16mm
- Rated voltage: 24V
- Waterproof: IP40/IP65
- Terminal type: Pin terminal
- Contact resistance: ≤50 mΩ
- Insulation resistance: ≥100MΩ
- Working environment temperature: -25℃～+65℃
SKU: PS9606A
HBDS1-AF-11DZ/24V/R Plastic Body Push Button Switch with Red Indicator
The HBDS1-AF-11DZ/24V/R Plastic Body Push Button Switch with Red Indicator is a compact, efficient, and highly visible control switch designed for industrial, commercial, and automation applications. Operating at 24V, this switch features a bright red LED indicator, commonly used to signal alerts, stop commands, or emergency status. The illuminated red button enhances safety and clarity, ensuring that operators can quickly identify the switch’s function and state, especially in low-light or high-noise environments. Built with a sturdy plastic housing, the switch is lightweight yet durable, resistant to impact and corrosion, and well-suited for environments that demand consistent performance. Its momentary action mechanism means the button returns to its default position after being pressed, making it perfect for start/stop operations or temporary command inputs. The 1NO + 1NC contact configuration offers flexible wiring options for a range of control system requirements. The 16mm standard mounting hole ensures easy installation in control panels and electrical enclosures. With its tactile feedback, dependable switching performance, and vivid red illumination, the HBDS1-AF-11DZ/24V/R push button switch provides both functionality and intuitive user interaction. It is an ideal component for ensuring precise control in manufacturing lines, automation systems, and electrical equipment setups.
Feature:-
- Momentary Operation
- Durable Plastic Body
- Panel Mount Design
- Dust and Moisture Resistant
- Space-saving design fits well in confined panel layouts.
- Contact Configuration: 1NO + 1NC (One Normally Open and One Normally Closed contact) for versatile control options.
