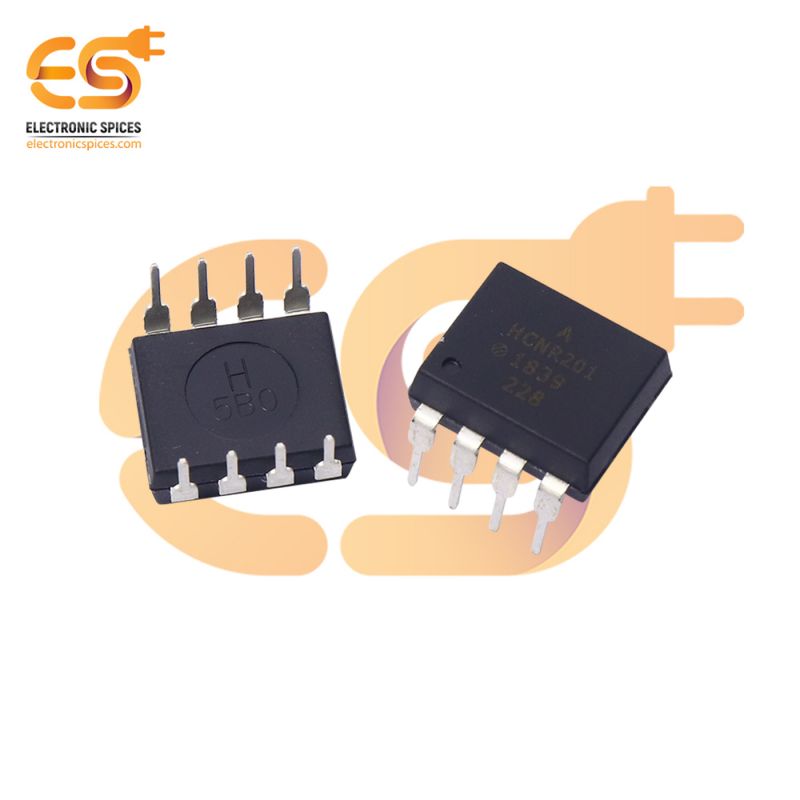

HCNR201 High linearity analog optocouplers DIP 8 pin IC

Specification

  1. Output type: Photodiode
  2. Number of channels: 1
  3. Isolation voltage: 5000 Vrms
  4. If - Forward Current: 20 mA
  5. Vf - Forward Voltage:  1.6 V
  6. Power Dissipation: 60 mW

Available in Pack Of:

SKU: 12982FD

MRP Rs. 250.74
Rs. 199.00 (Incl. Tax)
Rs. 168.64 (+18% GST extra)
Rs. 168.64 / pack of 1 = Rs. 168.64 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied
Quantity
Add to Cart

HCNR201 High linearity analog optocouplers DIP 8 pin IC

This is a high-linearity analog optocoupler IC. It consists of a high-performance LED that illuminates two closely matched photodiodes. The input photodiode can be use to monitor, and therefore stabilize, the light output of the LED.  As a result, the nonlinearity and drift characteristics of the LED can be virtually eliminated. The close matching of the photodiode and advanced design of the package ensure the high linearity and stable gain characteristics of the optocoupler.

Features

  1. Low Nonlinearity: 0.01%
  2. K3 (IPD2/IPD1) Transfer Gain: /-5%
  3. Low gain temperature coefficient
  4. Also, Wide Bandwidth - DC to > 1 MHz
