TRANSIENT VOLTAGE SUPPRESSORS

P6KE56A 77V Ipp 7.9A Ipp Through Hole Transient Voltage Suppressors DO-15

Specification:-

  • Package: DO-15 / DO-204AC / AXIAL
  • Number of Channels: 1 Channel
  • Working Voltage: 47.8V
  • Clamping Voltage: 77 V
  • Breakdown Voltage: 53.2 V
  • Ipp - Peak Pulse Current: 7.9 A
  • Pppm - Peak Pulse Power Dissipation: 600 W
Available in Pack Of:

SKU: FU8535A

MRP Rs. 750.00
Rs. 500.00 (Incl. Tax)
Rs. 423.73 (+18% GST extra)
Rs. 423.73 / pack of 1 = Rs. 423.73 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied

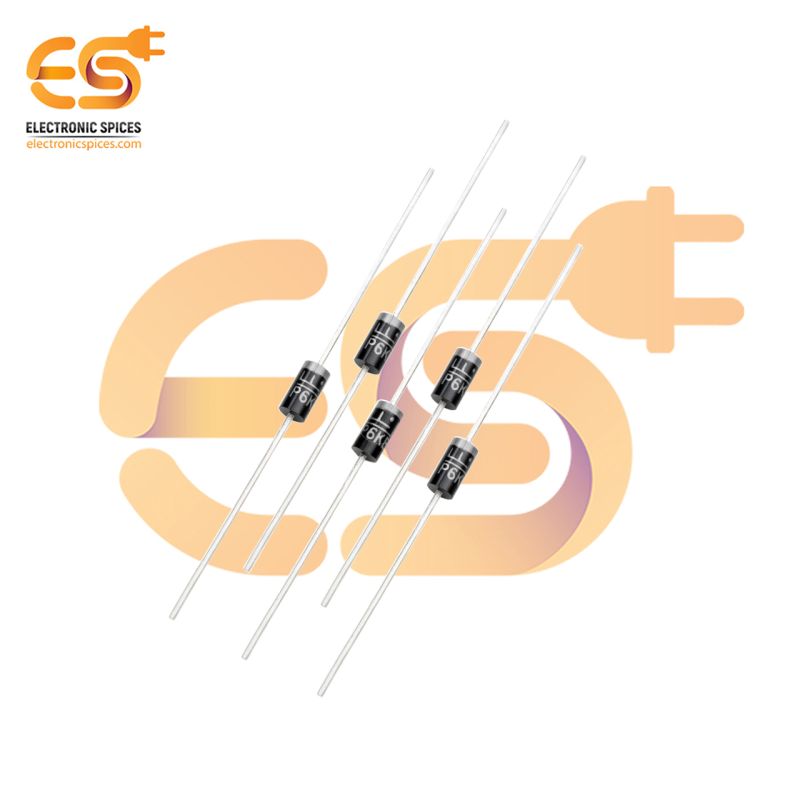

P6KE56A 77V Ipp 7.9A Ipp Through Hole Transient Voltage Suppressors DO-15

The P6KE56A is a Transient Voltage Suppressor (TVS) diode that safeguards sensitive electronic components from high-voltage spikes, typically caused by lightning strikes, electrostatic discharge (ESD), or power surges. This diode is packaged in a DO-15 form factor, suitable for through-hole mounting, making it ideal for a variety of consumer electronics, automotive, telecommunications, and industrial applications. With a reverse standoff voltage of 56V, the P6KE56A is effective at protecting circuits that operate at or below this voltage level. It has a clamping voltage of 77V, ensuring that any transient voltages above the normal operating range are suppressed to prevent damage to the connected components. The device can handle a peak pulse current (Ipp) of up to 7.9A, which allows it to withstand substantial surge events without failure, offering robust protection. This TVS diode features a fast response time, clamping transients quickly to avoid degradation or destruction of sensitive electronics. It is especially effective in environments where high-energy transients are likely, ensuring the long-term reliability and safety of electronic devices.

Feature:-

  • Reverse Stand-off Voltage
  • Glass-passivated chip junction
  • Excellent clamping capability
  • Very fast response time
  • Low incremental surge resistance
