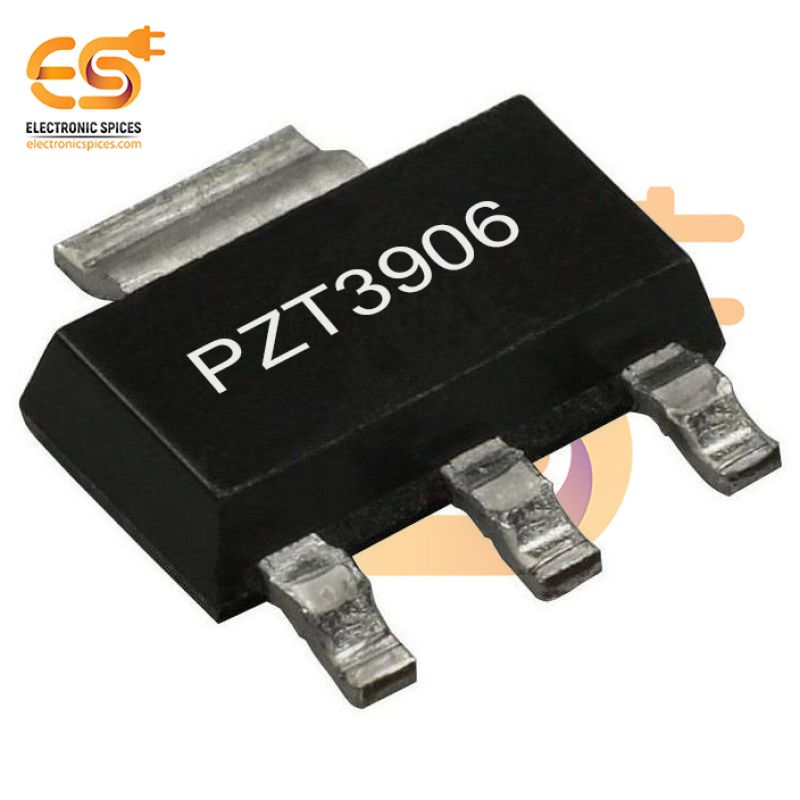

PZT3906 40V 200 mA 250MHz 1W Surface Mount PNP Bipolar Transistor SOT-223-4 (3 Leads + Tab)
Specification:-
- Package/Case: SOT-223-4 (3 Leads + Tab) / TO-261-4 / TO-261AA
- Type of transistor: PNP
- Polarisation: Bipolar
- Maximum DC Collector Current: 200 mA
- Collector- Emitter Voltage Max: 40 V
- Collector- Base Voltage: 60 V
- Emitter- Base Voltage: 5 V
- Collector-Emitter Saturation Voltage: 400 mV
- Pd - Power Dissipation: 1W
- Gain Bandwidth Product fT: 250 MHz
SKU: GA8541A
PZT3906 40V 200 mA 250MHz 1W Surface Mount PNP Bipolar Transistor SOT-223-4 (3 Leads + Tab)
The PZT3906 is a high-performance PNP bipolar junction transistor (BJT) designed for a wide range of general-purpose amplification and switching applications. It features a maximum collector-emitter voltage (Vce) of 40V and can handle a collector current (Ic) of up to 200mA, making it suitable for low to medium power requirements. The transistor is housed in a SOT-223-4 (3 leads + tab) surface-mount package, which provides excellent thermal performance and easy integration into compact PCB designs. With a transition frequency (ft) of 250MHz, the PZT3906 is well-suited for high-frequency applications, such as RF circuits, oscillators, and signal amplification. It also boasts a power dissipation rating of 1W, ensuring reliable performance under moderate thermal stress. The inclusion of a heat-dissipating tab in its package design helps manage heat effectively during operation.
Features:-
- Reliable Performance
- High-Speed Operation
- Low Power Consumption
- High-Speed Operation
