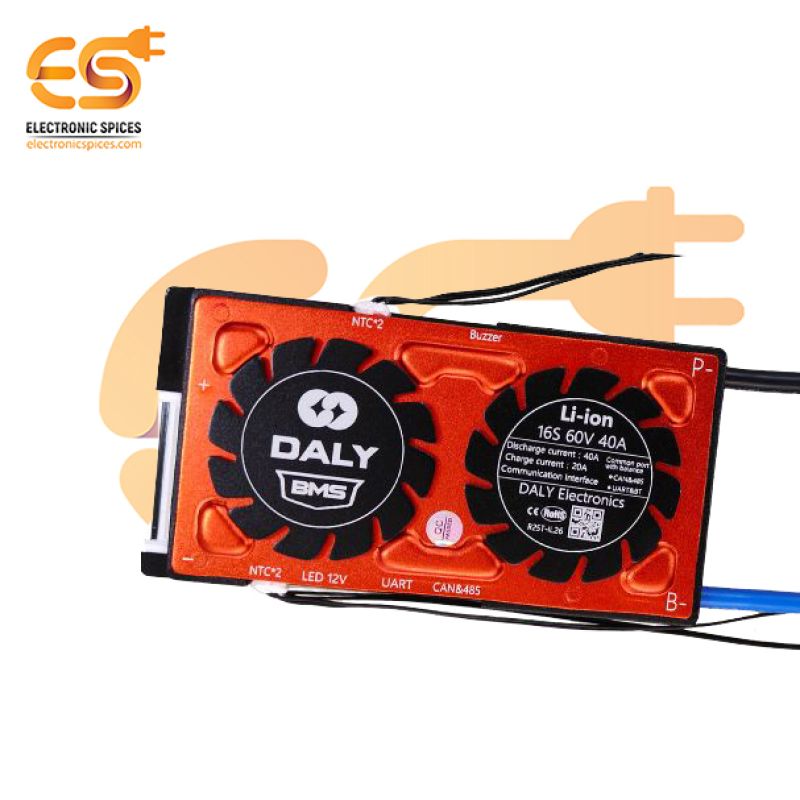

Smart BMS Li-ion 16S 60V 40A Common Port with Balance

Smart BMS Li-ion 16S 60V 40A Common Port with Balance

The Smart BMS Li-ion 16S 60V 40A Common Port with Balance is an advanced battery management system designed for 16-series lithium-ion (NMC/LiPo) battery packs operating at 60V nominal voltage. It ensures safe, efficient, and balanced charging and discharging, making it ideal for electric vehicles (EVs), energy storage systems (ESS), e-bikes, and solar applications. This smart BMS features active balancing, which equalizes cell voltages to improve battery longevity and performance. The common port design simplifies wiring by using the same terminal for charging and discharging, reducing complexity in battery pack integration. With a 40A continuous discharge current, it can support medium-power applications while protecting against overcharge, over-discharge, overcurrent, short circuits, and temperature fluctuations. The Bluetooth or UART communication interface (depending on the model) allows real-time monitoring via a mobile app or PC software, providing users with battery status, voltage levels, and temperature readings. The BMS supports configurable settings, enabling users to customize parameters based on specific application requirements.

Features:-

• Overcharge protection
• Over-discharge protection
• Overcurrent protection
• Short-circuit protection
• Waterproof Design
