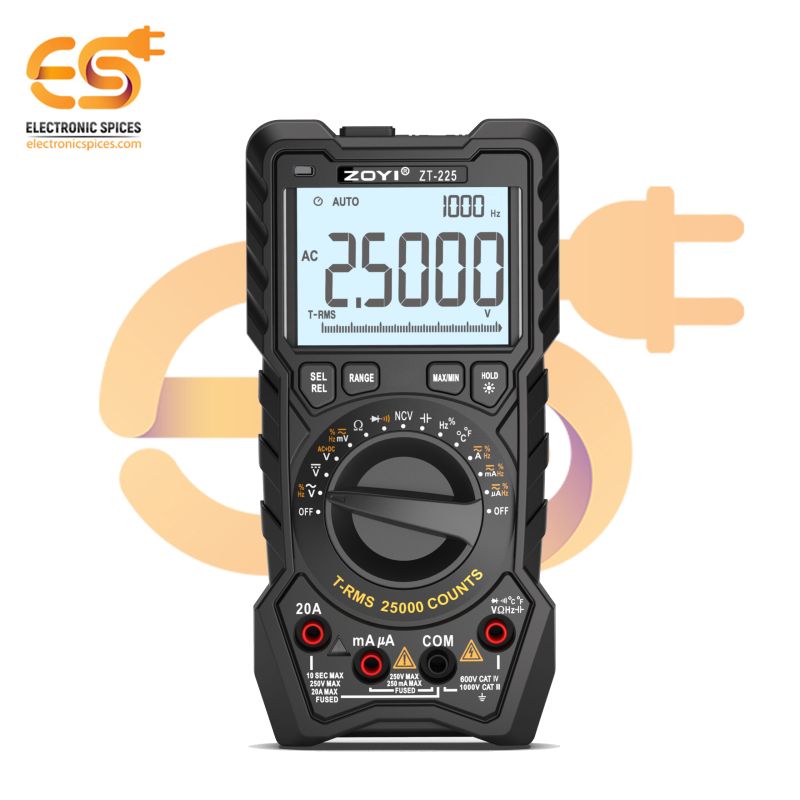

ZOYI ZT-225 25000 Counts Large Size Digital Multimeter with Automatic Range + Square Wave Output + 3 Kinds of Display
Specification:-
- Voltage Range: AC 750V / DC 1000V
- Resistance Range: 25MΩ
- AC current: 20A
- Display Count: 25000 Counts
- Temperature: -20℃~1000℃
- DC Voltage 25.000mV/250.00mV/2.5000V/25.000V/250.00V/1000.0 ±(0.05%+3)
- AC Voltage 25.000mV/250.00mV/2.5000V/25.000V/250.00V/750.0V ±(0.3%+3)
- DC Current: 250.00μA/2500.0μA/25.000mA/250.00mA/2.5000A/20.000A ±(0.5%+3)
- AC Current: 250.00μA/2500.0μA/25.000mA/250.00mA/2.5000A/20.000A ±(0.8%+3)
SKU: FM9030E1
ZOYI ZT-225 25000 Counts Large Size Digital Multimeter with Automatic Range + Square Wave Output + 3 Kinds of Display
The ZT-225 Digital Multimeter 25000 Counts is a high-precision instrument designed for professionals requiring advanced diagnostic capabilities. With a 25000 Counts Digital Multimeter resolution, it provides highly accurate readings for voltage, current, resistance, capacitance, frequency, and temperature. Ideal for industrial and laboratory use, it features automatic ranging for effortless measurements. The multimeter 25000 Counts also includes a square wave output for circuit testing and three display modes: digital for accuracy, a bar graph for quick analysis, and an analog display for intuitive readings. This versatile multimeter is perfect for complex troubleshooting and precision testing.
Features:-
- Low battery alert
- Capacitance Measurement
- AC/DC Voltage Measurement
- Resistance, Frequency, and Continuity Measurement
- High precision for various electrical parameters
- Measures voltage, current, resistance, capacitance, frequency, and temperature.
