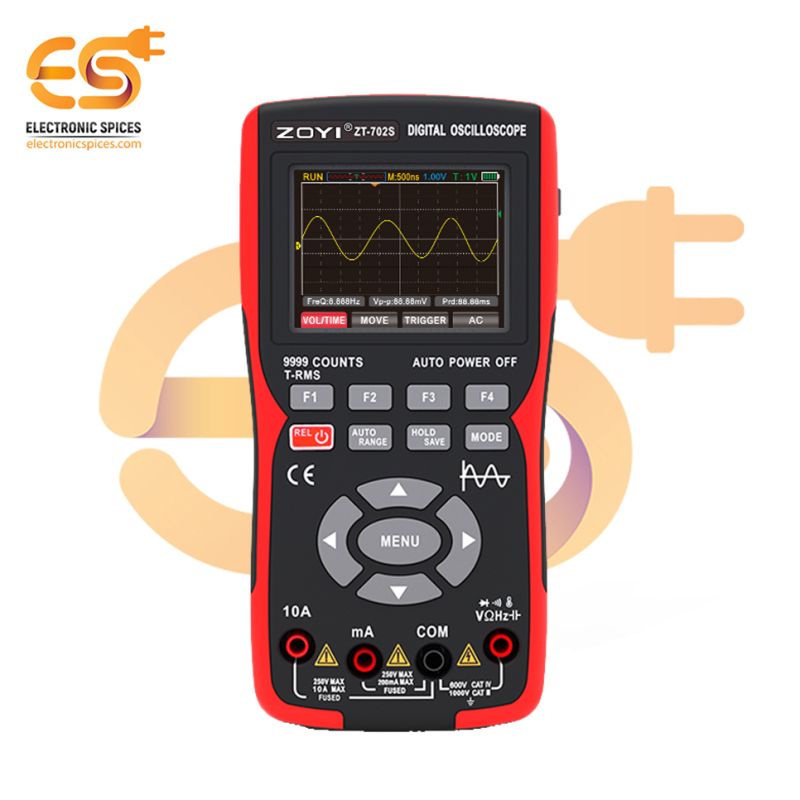

ZT-702S 9999 Counts Two-in-One Handheld Oscilloscope Digital Multimeter
Brand: ZoyiSpecification:-
- Input coupling: AC/DC
- Input resistance: 1MΩ,@16pf
- Probe attenuation: X1, X10
- Max input voltage: 150V (DC+AC peak）
- Horizontal: Sample rate range 1.5Sa/s – 48MSa/s
- Vertical: sensitivity 20mV/div – 10V/div
- Displacement range: 4 cells (positive and negative)
SKU: JT9030A
ZT-702S 9999 Counts Two-in-One Handheld Oscilloscope Digital Multimeter
The ZT-702S Two-in-One Handheld Oscilloscope Digital Multimeter is an advanced multifunctional tool that combines the precision of a digital multimeter with the graphical display capabilities of an oscilloscope. Designed for professionals and electronics enthusiasts, this device offers 9999 counts for highly accurate measurement results, making it ideal for complex electrical and electronic diagnostics. As a digital multimeter, the ZT-702S provides comprehensive measurement capabilities, including AC/DC voltage and current, resistance, capacitance, frequency, and diode/continuity testing. In oscilloscope mode, it delivers real-time waveform analysis, making it perfect for monitoring signals, detecting anomalies, and troubleshooting electronic circuits. Equipped with a high-resolution LCD screen, the device displays both numeric measurements and waveforms, offering visual clarity even in various lighting conditions. Its auto-ranging feature simplifies operations by automatically selecting the appropriate measurement range, and the data hold function allows users to freeze readings for later analysis.
Features:-
- Backlit High-Resolution LCD Screen
- AC/DC Voltage and Current Measurement
- Offers real-time graphical signal analysis
- Combines a digital multimeter with an oscilloscope
- Resistance, Capacitance, and Frequency Measurement
