DIODE & ZENER

DO-15, FR156G 800V Glass Passivated Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Case : DO-15
2. Maximum respective peak reverse voltage : 800v
3. Maximum average rectified current : 1.5A
4. Maxim reverse current : 5.0µA
5. Non-Repetitive Peak Forward Surge Current : 60A
6. Maxim forward voltage : 1.3V
7. Maximum reverse recovery time : 500ns

SMBJ75A 600W Surface Mount Transient Voltage Suppressors Pack of 5pcs

Specification:-

1. Package : SMB/SMB(G)
2. Minimum Breakdown voltage : 83.30V
3. Maximum Breakdown voltage : 92.1V
4. Stand-off voltage : 75.0
5. Maximum reverse leakage current : 5.0
6. Maximum peak pulse current : 5.0A
7. Maximum clamping voltage : 121.0V
8. Power dissipation : 600W

1.5KE12A 5.0µA, DO-201AD Transient Voltage Suppressor Pack of 100

Specification:

1. Minimum Breakdown voltage: 11.4V
2. Maximum Breakdown voltage: 12.6V
3. Maximum Reverse Leakage Current: 5.0µa
4. Maximum peak pulse current: 90.0A
5. Maximum clamping voltage: 16.7V
6. Maximum Temperature Coefficient of VBR: 0.078%
7. Power Dissipation: 1500W
8. Package: DO-201AD

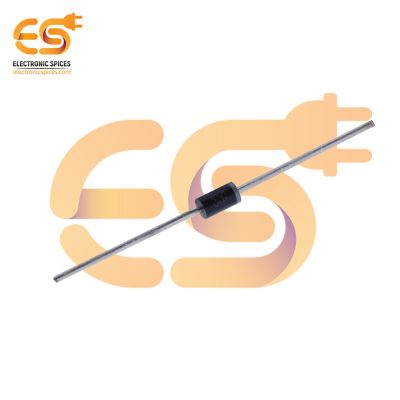

SA6.5 400µA ,DO-15 Transient Voltage Suppressors Pack of 100

Specification:-

• Breakover voltage : Min(V) 7.22 , Max(V) 8.82
• Maximum peak current : 40.7A
• Maximum reverse leakage current @ VRWM : 400µA
• Power dissipation :500W
• Package : DO-15

P6KE150 5.0µA, DO-15 Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 135.0V
• Maximum Breakdown voltage: 165.0V
• Maximum Reverse Leakage Current: 5.0µa
• Maximum peak pulse current: 2.8A
• Maximum clamping voltage: 215.0V
• Maximum Temperature Coefficient of VBR: 0.108%
• Power Dissipation: 600W
• Package: DO-15

6A05G 50V, R-6 Glass Passivated General Purpose Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 50V
• Maximum average rectified current : 6.0A
• Peak forward surge current 8.3ms single half sine- wave : 300A
• Maximum reverse current @ VRRM TA = 25°C : 10µA
• Package : R-6

RL202G 100V, DO-15 Glass Passivated General Purpose Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 100V
• Maximum average rectified current : 2.0A
• Peak forward surge current 8.3ms single half sine- wave : 70A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Package : DO-15

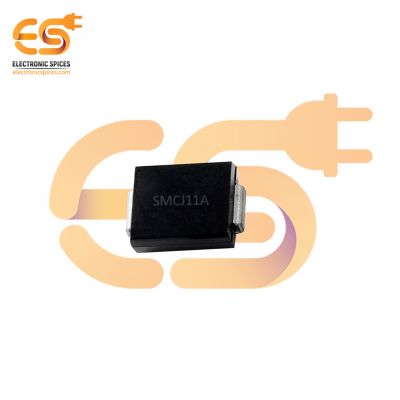

SMC(G) SMCJ11A 1500W Surface Mount Transient Voltage Suppressors Pack of 5pcs

Specification

1. Case : SMC(G)
2. Stand-off voltage : 11.0V
3. Maximum peak pulse current : 82.4A
4. Maxim reverse current : 5.0µA
5. Maximum clamping voltage : 18.2V
6. Power dissipation : 1500W

MM3Z6B2 300mW ,SOD-323 Packaging Diodes Pack of 5pcs

Specification:

• Power Dissipation : 300mW
• Nominal Zener Voltage : 6.2V
• Minimum Zener voltage : 6.076V
• Maximum Zener voltage : 6.324V
• Maximum Reverse Current : 1.0µa
• Package : SOD-323

MM1Z2B4 500mW ,SOD-123 Packaging Diodes Pack of 5pcs

Specification:

• Power Dissipation : 500mW
• Nominal Zener Voltage : 2.4V
• Minimum Zener voltage : 2.352V
• Maximum Zener voltage : 2.448V
• Maximum Reverse Leakage Current : 120µa
• Package : SOD-123

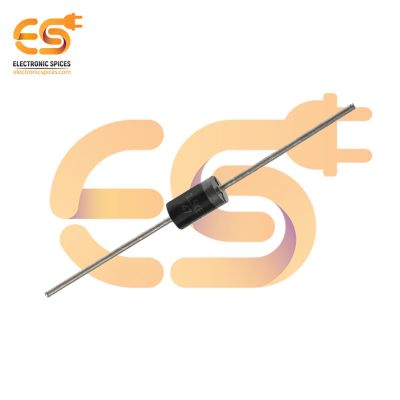

1.5KE47 5.0µA, DO-201AD Transient Voltage Suppressor Pack of 100

Specification:

1. Minimum Breakdown voltage: 42.3V
2. Maximum Breakdown voltage: 51.7V
3. Maximum Reverse Leakage Current: 5.0µa
4. Maximum peak pulse current: 22.2A
5. Maximum clamping voltage: 67.8V
6. Maximum Temperature Coefficient of VBR: 0.101%
7. Power Dissipation: 1500W
8. Package: DO-201AD

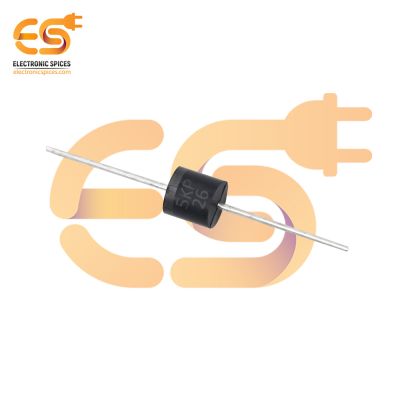

5KP26 10µA ,R-6 Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 28.9V
• Maximum Breakdown voltage: 35.3V
• Maximum Reverse Leakage Current: 10µa
• Maximum peak pulse current: 107A
• Maximum clamping voltage: 46.6V
• Power Dissipation: 5000W
• Package: R-6
