DIODE & ZENER

MM3Z5B6 300mW ,SOD-323 Packaging Diodes Pack of 5pcs

Specification:

• Power Dissipation : 300mW
• Nominal Zener Voltage : 5.6V
• Minimum Zener voltage : 5.488V
• Maximum Zener voltage : 5.712V
• Maximum Reverse Current : 1.0µa
• Package : SOD-323

MM1Z4B7 500mW ,SOD-123 Packaging Diodes Pack of 5pcs

Specification:

• Power Dissipation : 500mW
• Nominal Zener Voltage : 4.7V
• Minimum Zener voltage : 4.606V
• Maximum Zener voltage : 4.794V
• Maximum Reverse Current : 2.0µa
• Package : SOD-123

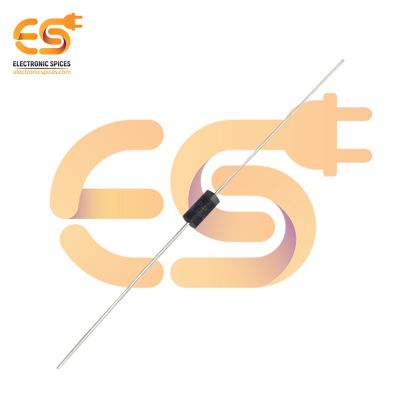

P4KE36A 5.0µA ,DO-41 Transient Voltage Suppressors Pack of 100

Specification:-

• Breakover voltage : Min(V) 34.2 , Max(V) 37.8
• Maximum peak current : 8.4A
• Maximum reverse leakage current @ VRRM : 5.0µA
• Package : DO-41

P4KE12A 5.0µA ,DO-41 Transient Voltage Suppressors Pack of 100

Specification:-

• Breakover voltage : Min(V) 11.4 , Max(V) 12.6
• Maximum peak current : 25A
• Maximum reverse leakage current @ VRRM : 5.0µA
• Package : DO-41

SMBJ60 600W Surface Mount Transient Voltage Suppressors Pack of 5pcs

Specification:-

1. Package : SMB/SMB(G)
2. Minimum Breakdown voltage : 66.70V
3. Maximum Breakdown voltage : 81.5V
4. Stand-off voltage : 60.0
5. Maximum reverse leakage current : 5.0
6. Maximum peak pulse current : 5.6A
7. Maximum clamping voltage : 107.0V
8. Power dissipation : 600W

SMBJ16A 600W Surface Mount Transient Voltage Suppressors Pack of 5pcs

Specification:-

1. Package : SMB/SMB(G)
2. Minimum Breakdown voltage : 17.8V
3. Maximum Breakdown voltage : 19.7V
4. Stand-off voltage : 16.0
5. Maximum reverse leakage current : 5.0
6. Maximum peak pulse current : 23.1A
7. Maximum clamping voltage : 26.0V
8. Power dissipation : 600W

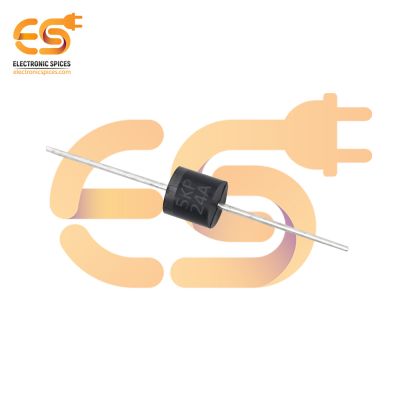

5KP24A 10µA ,R-6 Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 26.7V
• Maximum Breakdown voltage: 29.5V
• Maximum Reverse Leakage Current: 10µa
• Maximum peak pulse current: 128A
• Maximum clamping voltage: 38.9V
• Power Dissipation: 5000W
• Package: R-6

1.5KE27A 5.0µA, DO-201AD Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 25.7V
• Maximum Breakdown voltage: 28.4V
• Maximum Reverse Leakage Current: 5.0µa
• Maximum peak pulse current: 40.0A
• Maximum clamping voltage: 37.5V
• Maximum Temperature Coefficient of VBR: 0.096%
• Power Dissipation: 1500W
• Package: DO-201AD

SMBJ48A 600W Surface Mount Transient Voltage Suppressors Pack of 5pcs

Specification:-

1. Package : SMB/SMB(G)
2. Minimum Breakdown voltage : 53.30V
3. Maximum Breakdown voltage : 58.9V
4. Stand-off voltage : 48.0
5. Maximum reverse leakage current : 5.0
6. Maximum peak pulse current : 7.8A
7. Maximum clamping voltage : 77.4V
8. Power dissipation : 600W

5KP45A 10µA ,R-6 Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 50.0V
• Maximum Breakdown voltage: 55.3V
• Maximum Reverse Leakage Current: 10µa
• Maximum peak pulse current: 69A
• Maximum clamping voltage: 72.7V
• Power Dissipation: 5000W
• Package: R-6

P4KE13A 5.0µA ,DO-41 Transient Voltage Suppressors Pack of 100

Specification:-

• Breakover voltage : Min(V) 12.4 , Max(V) 13.7
• Maximum peak current : 23A
• Maximum reverse leakage current @ VRRM : 5.0µA
• Package : DO-41

P6KE24 5.0µA ,DO-15 Transient Voltage Suppressors Pack of 100

Specification:

• Minimum Breakdown voltage: 21.6V
• Maximum Breakdown voltage: 26.4V
• Maximum Reverse Leakage Current: 5.0µa
• Maximum peak pulse current: 17A
• Maximum clamping voltage: 34.7V
• Maximum Temperature Coefficient of VBR: 0.094%
• Power Dissipation: 600W
• Package - DO-15
