IC

PJ494CD Switch mode PWM control circuit DIP 16 pins IC pack of 10pcs

Specification

1. Complete PWM Power Control Circuitry
2. Supply voltage : 20V to 40V
3. Collector output current : 250mA
4. Oscillator frequency :  300 kHz
5. Output voltage :  5V
6. Load regulation : 15mV

LM833 Dual Low Noise Audio Op-Amplifier IC (DIP-8 Package)

Specification:-

• Supply Voltage (VCC to VEE): 36 V
• Input Differential Voltage Range: 30 V
• Input Voltage Range: ±15 V
• Power Dissipation: 500 m W
• Low Voltage Noise: 4.5 nV/ Hz
• High Gain Bandwidth Product: 15 MHz
• Storage temperature range: –65°C to150 °C

CD4053BE Triple 2 channel analog multiplexer DIP 16 pins IC pack of 10pcs

Specification

1. Wide range of digital and analog signal levels
   1. Digital : 3 V to 20V
   2. Analog : ≤ 20V_P-P
2. Gain bandwidth : 30MHz
3. Current leakage : 100nA
4. Channel to channel matching : 5Ω (ohm)
5. On state resistance : 240 Ω ( ohm )

34063A DC to DC convertor DIP 8 pins IC pack of 50pcs

Specification

1. DC to DC converter IC
2. Input voltage  : 4V to 40V
3. Adjustable output voltage range :  2V to 40V
4. Current capability :  1.5A
5. Switching frequency  : 100KHz
6.  Short Circuit current Limiting

TDA4864AJ Vertical deflection booster 7 pins IC pack of 10pcs

Specification

1. Operating supply voltage : 9V to 30V
2. Flyback generator output voltage : 2.2V
3. Supply current : 6mA to 10mA
4. Power amplifier with differential inputs
5. High vertical deflection frequency up to 200 Hz

LA78041 TV and CRT display vertical output with bus control support 7 pins IC pack of 50pcs

Specification

1. Improve image quality in TV and CRT display
2. Recommended supply voltage : 34V
3. Supply voltage range : 16V to 40V
4. Power dissipation : 9W
5. Thermal resistance : 3 °C /W
6. Thermal and short circuit protection system

MCP3208 12-Bit 8-Channel A/D Converter (ADC) with SPI Interface IC DIP-16 Package

Specification:-

• Single supply operation: 2.7V – 5.5V
• 100ksps max. sampling rate at VDD = 5V
• 50ksps max. sampling rate at VDD = 2.7V
• Industrial temp range: -40°C to +85°C
• All Inputs and Outputs w.r.t. VSS: -0.6V to VDD +0.6V
• Storage Temperature: -65°C to +150°C
• Ambient temperature with power applied: -65°C to +125°C
• Soldering temperature of leads (10 seconds): +300°C
• ESD Protection On All Pins (HBM): ≥ 4 Kv

APR33A3 Voice Recorder & Playback IC

Specification:-

• Operating Voltage Range: 3V ~ 6.5V
• Standby Current: 1 µA
• VOUT Current: 185 mA
• Input Voltage: 0.6 V
• Operating Current (Idle): 20 mA
• Operating Current (Record): 35 mA
• Operating Current (Playback): 25 mA
• Powerful 16-Bits Digital Audio Processor

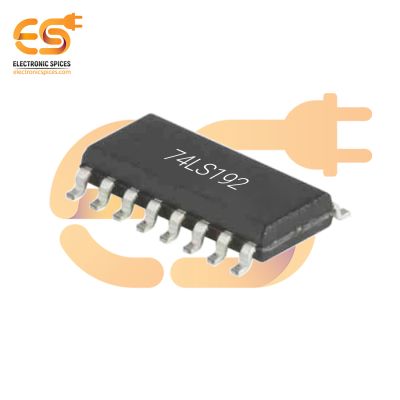

74LS192 Decade Up/Down Counter with Clear SMD IC

Specification:-

• Mounting: SMD
• Frequency: 40 MHz
• Power Dissipation: 95 mW
• Supply Voltage range: 4.5 to 5.5V
• Output Current (High): -0.4mA
• Output Current (Low): 8mA
• Operating Temperature: -55°C to 125°C

L293D Quadruple half-H driver or motor driver 16 pins IC pack of 50pcs

Specification

1. Quadruple high current half-H driver IC
2. Or motor driver IC
3. Supply voltage : 5V to 7V
4. Output voltage : 5V to 36V
5. Max. current : 600mA
6. Number of pin : 16
7. Peak output current : 1.2A

LTH7R Charge and Charge Management IC SOT-23-5

Specification:-

• Package: SOT-23-5
• Input supply voltage: 7V
• PROG voltage: 0.3V
• Maximum junction temperature: 110°C
• Storage temperature: -65°C to +125°C

24C08 8K Bit standard 2 wire bus interface serial DIP 8 pins IC pack of 50pcs

Specification

1. Low Voltage and Standard-Voltage Operation
2. 2-wire Serial Interface
3. Operating voltage : 2.7V to 5.5V
4. Clock frequency :  40KHz
5. Active current typical : 200µA
6. 100kHz and 400kHz Compatibility
7. 1024 x 8 bits for each
