TRANSISTORS
Showing 1–12 of 428 results
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
-
![HCPL-0701#500 3750Vrms 1 Channel Optoisolator Darlington with Base Output Output 8-SOIC]()
HCPL-0701#500 3750Vrms 1 Channel Optoisolator Darlington with Base Output Output 8-SOIC
Rs. 500.00Specification:-
- Package: SOIC8 (0.154", 3.90mm)
- Number of Channels: 1 Channel
- Isolation Voltage: 3750 Vrms
- Forward Current: 1.6 mA
- Forward Voltage: 1.4 V
- Reverse Voltage: 5 V
- Output Current: 60 mA
- Power Dissipation: 135 mW
-
![EL817B Output 5000Vrms 1 Channel Opto-isolator Transistor 4-PDIP]()
EL817B Output 5000Vrms 1 Channel Opto-isolator Transistor 4-PDIP
Rs. 500.00Specification:-
- Package/Case: PDIP4 (0.300", 7.62mm)
- Mounting Style: Through Hole
- Number of Channels: 1 Channel
- Isolation Voltage: 5000 Vrms
- Output Type: NPN Phototransistor
-
![MCT5200 Optoisolator Transistor with Base Output 5300Vrms 1-Channel 6-PDIP]()
MCT5200 Optoisolator Transistor with Base Output 5300Vrms 1-Channel 6-PDIP
Rs. 500.00Specification:-
- Package: PDIP6 (0.300", 7.62mm)
- Isolation Voltage: 5300 Vrms
- Forward Current: 50 mA
- Forward Voltage: 1.25 V
- Maximum Collector Emitter Voltage: 30 V
- Maximum Collector Current: 150 mA
- Maximum Collector Emitter Saturation Voltage: 400 mV
- Reverse Voltage: 6 V
- Power Dissipation: 260 mW
-
![6N136 Optoisolator Transistor with Base Output 2500Vrms 1-Channel 8-PDIP]()
6N136 Optoisolator Transistor with Base Output 2500Vrms 1-Channel 8-PDIP
Rs. 500.00Specification:-
- Package: PDIP8 (0.300", 7.62mm)
- Forward Current: 16 mA
- Forward Voltage: 1.33 V
- Rise Time: 5 ns
- Reverse Voltage: 5 V
- Output Current: 8 mA
- Power Dissipation: 100 mW
-
![MOC207R2M Optoisolator Transistor with Base Output 2500Vrms 1-Channel 8-SOIC (White Color)]()
MOC207R2M Optoisolator Transistor with Base Output 2500Vrms 1-Channel 8-SOIC (White Color)
Rs. 500.00Specification:-
- Package: SOIC8 (0.154", 3.90mm)
- Forward Current: 60 mA
- Forward Voltage: 1.5 V
- Maximum Collector Emitter Voltage: 30 V
- Maximum Collector Current: 150 mA
- Maximum Collector Emitter Saturation Voltage: 400 mV
- Rise Time: 3.2 us
- Fall Time: 4.7 us
- Reverse Voltage: 6 V
- Power Dissipation: 240 mW
-

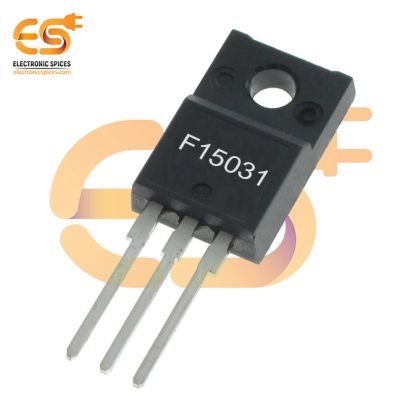

![F15031 150V 8A 30MHz 2W Through Hole PNP Bipolar Transistor TO-220FP / TO-220-3]()
F15031 150V 8A 30MHz 2W Through Hole PNP Bipolar Transistor TO-220FP / TO-220-3
Rs. 500.00Specification:-
- Package/Case: SOT-23-3 / TO-236-3 / SC-59
- Type of transistor: PNP
- Polarisation: Bipolar
- Maximum DC Collector Current: 8 A
- Collector- Emitter Voltage Max: 150 V
- Collector- Base Voltage: 150 V
- Emitter- Base Voltage: 5 V
- Collector-Emitter Saturation Voltage: 500 mV
- Pd - Power Dissipation: 2 W
- Gain Bandwidth Product fT: 30 MHz
-
![MOC3082M Optoisolator Triac Output 4170Vrms 1 Channel 6-PDIP]()
MOC3082M Optoisolator Triac Output 4170Vrms 1 Channel 6-PDIP
Rs. 500.00Specification:-
- Package: PDIP6 (0.300", 7.62mm)
- Mounting Type: Through Hole
- Output Type: Triac
- Voltage Isolation: 4170Vrms
- Voltage Off State: 800 V
- Static dV/dt (Min): 600V/µs
- Voltage Forward (Typ): 1.3V
- Current DC Forward (Max): 60 mA
- Operating Temperature: -40°C ~ 85°C
-
![H11A3 Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-PDIP]()
H11A3 Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-PDIP
Rs. 500.00Specification:-
- Package: PDIP6 (0.300", 7.62mm)
- Forward Current: 60 mA
- Forward Voltage: 1.5 V
- Maximum Collector Emitter Voltage: 30 V
- Maximum Collector Current: 100 mA
- Maximum Collector Emitter Saturation Voltage: 400 mV
- Reverse Voltage: 6 V
- Power Dissipation: 150 mW
-
![4N27SR2M Optoisolator Transistor with Base Output 4170Vrms 1-Channel 6-SMD Gull Wing (White Color)]()
4N27SR2M Optoisolator Transistor with Base Output 4170Vrms 1-Channel 6-SMD Gull Wing (White Color)
Rs. 500.00Specification:-
- Package: SMD6 Gull Wing
- Voltage Output (Max): 30V
- Voltage Isolation: 4170Vrms
- Voltage Forward: 1.18V
- Current DC Forward (If) (Max): 60 mA
- Saturation (Max): 500mV
- Operating Temperature: -40°C ~ 100°C
-

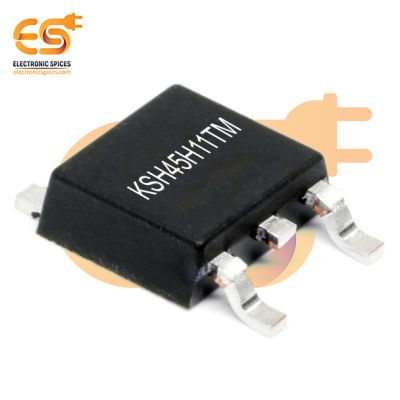

![KSH45H11TM 80V 8A 40MHz 1.75W Surface Mount PNP Bipolar Transistor SOT-223-4 (3 Leads + Tab)]()
KSH45H11TM 80V 8A 40MHz 1.75W Surface Mount PNP Bipolar Transistor SOT-223-4 (3 Leads + Tab)
Rs. 500.00Specification:-
- Package/Case: TO-252-3 (2 Leads + Tab) / DPAK
- Type of Transistor: PNP
- Polarisation: Bipolar
- Maximum DC Collector Current: 8 A
- Collector- Emitter Voltage VCEO Max: 80 V
- Emitter- Base Voltage VEBO: 5 V
- Collector-Emitter Saturation Voltage: 1 V
- Pd - Power Dissipation: 20 W
- Gain Bandwidth Product fT: 40 MHz
-
![BCV72 60V 500mA 350mW Surface Mount Bipolar Transistor NPN SOT-23-3 / TO-236-3 / SC-59]()
BCV72 60V 500mA 350mW Surface Mount Bipolar Transistor NPN SOT-23-3 / TO-236-3 / SC-59
Rs. 500.00Specification:-
- Package/Case: SOT-23-3 / TO-236-3 / SC-59
- Type of transistor: NPN
- Polarisation: bipolar
- Collector- Emitter Voltage Max: 60 V
- Collector- Base Voltage: 80 V
- Emitter- Base Voltage: 5 V
- Collector-Emitter Saturation Voltage: 250 mV
- Pd - Power Dissipation: 350 mW
-
![D45E1 40V 10A 50W Through Hole PNP Bipolar Transistor TO-220]()
D45E1 40V 10A 50W Through Hole PNP Bipolar Transistor TO-220
Rs. 500.00Specification:-
- Package: TO-220-3
- Transistor Type: PNP
- Collector-Emitter Voltage: -40V
- Emitter Base Voltage: -7V
- Collector Current: -10~-20A
- Power Dissipation: 50W
