TO-220 PACKAGE
Showing 1–12 of 35 results
.jpg)
.jpg)
-
![BTA140-600B Transistors 600V (TO-220 Package) Pack of 5]()
BTA140-600B Transistors 600V (TO-220 Package) Pack of 5
Rs. 99.00Specification:-
- Peak Repetitive Off-State Voltage: 600V
- On State RMS Current: 25A
- Gate Trigger Voltage Max: 1.5V
- Peak Non-Repetitive Surge Current: 190A
- Holding Current Max: 60mA
-
![TT2140 1500V NPN Power Transistor (TO-220 Package) Pack of 5]()
TT2140 1500V NPN Power Transistor (TO-220 Package) Pack of 5
Rs. 99.00Specification:-
- Package Type:TO-220
- Type: NPN Transistor
- Max. Collector Current: 15A
- Max. Collector Power Dissipation (Pc): 30 W
- Max. Collector-Base Voltage (Vcb): 1500 V
- Max. Collector-Emitter Voltage (Vce): 800 V
- Max. Emitter-Base Voltage (Veb): 6 V
- Max. Collector Current (Ic max): 6 A
- Operating Temperature Range: -55°C to +150°C
-
![2N5294 NPN Transistors 70V (TO-220 Package) Pack of 5]()
2N5294 NPN Transistors 70V (TO-220 Package) Pack of 5
Rs. 99.00Specification:-
- Transistor Polarity - NPN
- Collector-Emitter Voltage (VCEO) - 70V
- Continuous Base Current (IB) - 2A
- Continuous Collector Current (IC) - 0.5A
- Emitter cut-off current (IC) - 200mA
- DC Current Gain (hFE) - 30-120
- Operating Temperature Range - (-65 - 150°C)
-
![DOP55NF06 NPN Power Transistor 130 V (TO-220 Package) Pack of 5]()
DOP55NF06 NPN Power Transistor 130 V (TO-220 Package) Pack of 5
Rs. 99.00Specification:-
- Part Number: DOP55NF06
- Package Type: TO-220
- Transistor Type: NPN
- Mounting Type: THT
- Voltage: 130 V
- Operating Temperature Range: -55°C to 150°C
-
![2SC4793L 230V NPN Power Transistor (TO-220 Package) Pack of 5]()
2SC4793L 230V NPN Power Transistor (TO-220 Package) Pack of 5
Rs. 99.00Specification:-
- Package Type: TO-220
- Type: NPN Transistor
- VDSS Drain-Source Voltage: 230V
- Max Emitter-Base Voltage (VEBO): 5V
- Max Collector Dissipation (Pc): 2 Watt
- Max Transition Frequency (fT): 100 MHz
- Operating Temperature Range: -55°C to +150°C
-
![TT2190 1500V NPN Power Transistor (TO-220 Package) Pack of 5]()

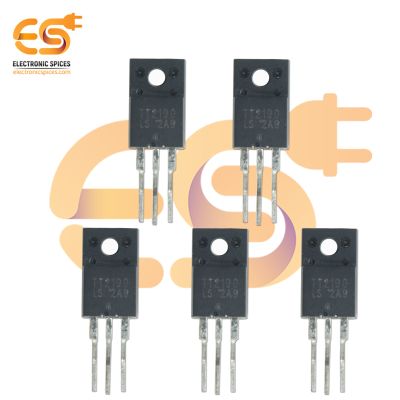

TT2190 1500V NPN Power Transistor (TO-220 Package) Pack of 5
Rs. 99.00Specification:-
- Package Type: TO-220
- Type: NPN Transistor
- Max. Collector Power Dissipation (Pc): 35 W
- Max. Collector-Base Voltage (Vcb): 1500 V
- Max. Collector-Emitter Voltage (Vce): 800 V
- Max. Emitter-Base Voltage (Veb): 6 V
- Max. Collector Current (Ic max): 8 A
- Operating Temperature Range: -55°C to +150°C
-
![TIP112 100V 2A 2W Through Hole NPN - Darlington Bipolar Transistor TO-220]()
TIP112 100V 2A 2W Through Hole NPN - Darlington Bipolar Transistor TO-220
Rs. 500.00Specification:-
- Package: TO-220-3
- Transistor Type: NPN
- Max Collector Current (IC): 2A
- Max Collector-Emitter Voltage: 100V
- Max Collector-Base Voltage: 100V
- Max Emitter-Base Voltage: 5V
- Max Collector Dissipation: 50 Watt
-
![F15031 150V 8A 30MHz 2W Through Hole PNP Bipolar Transistor TO-220FP / TO-220-3]()
F15031 150V 8A 30MHz 2W Through Hole PNP Bipolar Transistor TO-220FP / TO-220-3
Rs. 500.00Specification:-
- Package/Case: SOT-23-3 / TO-236-3 / SC-59
- Type of transistor: PNP
- Polarisation: Bipolar
- Maximum DC Collector Current: 8 A
- Collector- Emitter Voltage Max: 150 V
- Collector- Base Voltage: 150 V
- Emitter- Base Voltage: 5 V
- Collector-Emitter Saturation Voltage: 500 mV
- Pd - Power Dissipation: 2 W
- Gain Bandwidth Product fT: 30 MHz
-
![D45E1 40V 10A 50W Through Hole PNP Bipolar Transistor TO-220]()
D45E1 40V 10A 50W Through Hole PNP Bipolar Transistor TO-220
Rs. 500.00Specification:-
- Package: TO-220-3
- Transistor Type: PNP
- Collector-Emitter Voltage: -40V
- Emitter Base Voltage: -7V
- Collector Current: -10~-20A
- Power Dissipation: 50W
-
![RFP2N10L N-Channel 100V 2A 25W Through Hole Transistor TO-220]()
RFP2N10L N-Channel 100V 2A 25W Through Hole Transistor TO-220
Rs. 500.00Specification:-
- Package: TO-220-3
- Transistor Type: 1 N-Channel
- Mounting Style: Through Hole
- Power Dissipation: 25W
- Continuous Drain Current: 2A
- Drain-Source Breakdown Voltage: 100V
-
![IRF830A N-Channel 500V 5A 74W Through Hole TO-220AB]()
IRF830A N-Channel 500V 5A 74W Through Hole TO-220AB
Rs. 500.00Specification:-
- Package: TO220-3
- Drain-Source Voltage: 500 V
- Gate-Source Voltage-Continuous ±30 V
- Drain Current-Continuous: 25°C = 5 A
- Drain Current-continuous: 100°C = 3.2A
- IDM Drain Current-Single Plused 20 A
- PD Total Dissipation @TC=25℃ 74 W
- Tj Max. Operating Junction Temperature 150 ℃
- Tstg Storage Temperature -55~150 ℃
