SENSOR MODULES

R307 Optical Fingerprint Reader Sensor Module

Specification:-

1. Type: Optical
2. Sensor Life: 100 million times
3. Static indicators: 15KV
4. RS232 communication baud rate: 9600BPS~115200BPS changeable
5. Image Capture Surface 20*15(mm)
6. Verification Speed:  0.2 sec
7. Scanning Speed: 0.3 sec
8. Character file size:  256 bytes

P43 - Liquid and Water level float switch sensor module

Specifications:-

1. Maximum Load: 50 W
2. Max Switching Voltage: 100V DC
3. Minimum Voltage: 250V DC
4. Maximum Switching Current: 0.5 A
5. Max Load Current: 1.0 A
6. Max Contact Resistance: 0.4 ΩTemp Rating: -20~ 80 degree

SEN0193 Digital capacitive soil moisture sensor V2.0

Specification:-

1. Operating Voltage: 3.3V - 5V.
2. Output: Digital signal.
3. Sensitivity Range: Adjustable.
4. Dimensions: 60mm x 20mm.

MQ-135 Air quality and Gas detection sensor module

Specifications:-

1. Wide detecting scope
2. Fast response and High sensitivity
3. Stable and long life
4. Operating voltage : 3V to 5V
5. Detect/Measure NH3, NOx, alcohol, Benzene, smoke, CO2, etc.

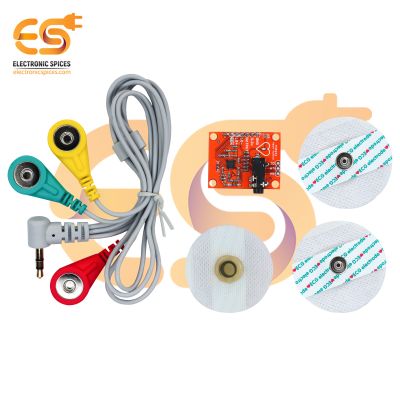

AD8232 - Electrocardiography or ECG sensor module

Specifications:-

1. Qualified for automotive application
2. Single-supply operation: 2.0 V to 3.5
3. Fast restore feature improves filter settling
4. Fully integrated single-lead ECG front end
5. Two or three-electrode configurations

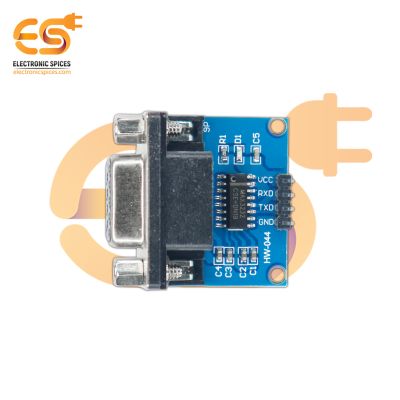

MAX3232 - RS232 to TTL Serial Port Converter Module

Specifications

• Material: Plastic
• Color: Blue
• Easy to use and low cost
• Pre-assembled compact size board
• No need of any soldering just plug and play
• Suitable for use with most microcontrollers

ACS712 - 30A range current detection sensor module

Specifications:-

• Measures both AC and DC current
• Provides isolation from the load
• Easy to integrate with MCU, since it outputs an analog voltage
• Scale factor : 66mV per Amp

Pulse Sensor - Heart Rate Detector

Specifications:-

1. Biometric Pulse Rate or Heart Rate detecting sensor
2. Plug and Play type sensor
3. Operating Voltage: +5V or +3.3V
4. Current Consumption: 4mA
5. Inbuilt Amplification and Noise cancellation circuit.

LM393 Motor speed measuring groove coupler sensor module

Specification:-

1. Working voltage  :  3.3V to 5V
2. Output  :  digital switch output (0 and 1)
3. Equipped with a fixed bolt hole, easily install.
4. Small board PCB size  :  3.2 cm x 1.4 cm.
5. Use the LM393 wide voltage comparer.

Mini Micro SD Card Reader Module

Specification:-

• Operating voltage: DC 2.6 to 3.6V
• Audio output: 16bitDAC and PWM
• Supports FAT file system SD carrier
• Supports playing of 4Bit ADCPM format files
• Pinouts: GND, VCC, MISO, MOSI, SCK, CS
• Supports playing of 4Bit ADCPM format files

TCS3200 Color Recognition Sensor Module

Specification

1. Sensor Type: Color Recognition Sensor (TCS3200).
2. Voltage Range: 2.7V - 5.5V.
3. Output Formats: RGB, HSV, and Grayscale.
4. Compact and Lightweight Module.

9 mm Electret condenser microphone sound sensor pack of 5pcs

Specification:-

1. Operating Voltage  :  2V to 10V
2. Current consumption  :  0.5mA (max)
3. Recommended operating voltage  :  2V
4. Operating Frequency  :  20Hz to 16,000Hz
5. Impedance  :  <2.2kΩ
6. Package includes : 5 pieces
