SENSOR MODULES

KY009 3 Color SMD RGB LED sensor module

Specification:-

1. Operating voltage  :  5V
2. Forward current  :  30mA max.
3. Operating temperature  :  -25 °C to 85 °C
4. You can regulate the brightness of the LEDs via pulse-width modulation.
5. Primary colors  :  red, blue, green.

HMC5883L Magnetometer sensor module (GY273)

Specification:-

1. Operating voltage  :  3V to 6V DC
2. I2C interface
3. 1-2 degree heading accuracy
4. Integrated 12-bit ADC
5. 160Hz max data rate
6. Needs no external components
7. Easy to use module

Reed switch sensor module

Specifications:-

1. Working voltage: 3.3V ~ 5V
2. Current: Up to 1.2A
3. Comparator output
4. Clean signal
5. Great waveform
6. Strong driving ability
7. Digital switch output (0 and 1)

Pulse Sensor - Heart Rate Detector

Specifications:-

1. Biometric Pulse Rate or Heart Rate detecting sensor
2. Plug and Play type sensor
3. Operating Voltage: +5V or +3.3V
4. Current Consumption: 4mA
5. Inbuilt Amplification and Noise cancellation circuit.

R305 Optical Fingerprint Reader Sensor Module

Specification:-

• Type: Optical
• Sensor Life: 100 million times
• Static indicators: 15KV
• Verification Speed: 0.3 sec
• Scanning Speed: 0.5 sec
• Character file size: 256 bytes
• Supply voltage: DC 3.6 ~ 6.0V / 3.3V
• Supply Current: Current: <120mA
• Fingerprint image time: <1.0 seconds

MPR121 V12 Capacitive touch sensor controller module

Specification:-

1. Operating voltage  :  2.5V to 3.6V DC
2. 29μA supply current at 16ms sample period
3. Shutdown current  :  3μA
4. 12 electrodes
5. Operating temperature range  :  -40°C to +85°C

SW420 - Vibration detection sensor module

Specifications:-

1. Operating Voltage: 3.3V to 5V DC
2. Operating Current: 15mA
3. Bolt holes for easy installation
4. Small, cheap, and easily available
5. LEDs indicating output and power

RCWL0516 - Microwave radar sensor module

Specifications:-

1. Operating Voltage : 28V
2. Operating Current : 2.8mA
3. Detecting Range : 5 - 9 m
4. Transmitting Power : 20mW

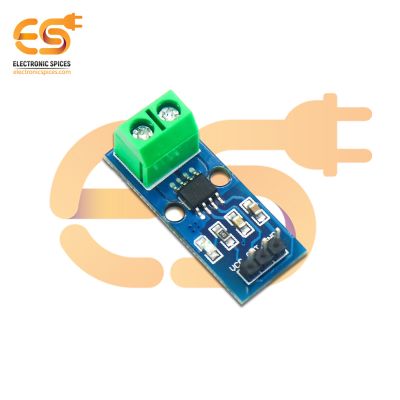

ACS712 - 5A range Current detector Sensor Module

Specifications:-

1. Module Dimensions: 31 x 13 x 14 mm (LxWxH)
2. Weight: 3 gm.
3. Supply Voltage: 4.5V~5.5V DC
4. Measure Current Range: -5A~ 5A
5. Sensitivity: 66mV/A
6. The current sensor chips: ACS712_ELC-05B.
7. Pin 5V power supply, on-board power indicator.

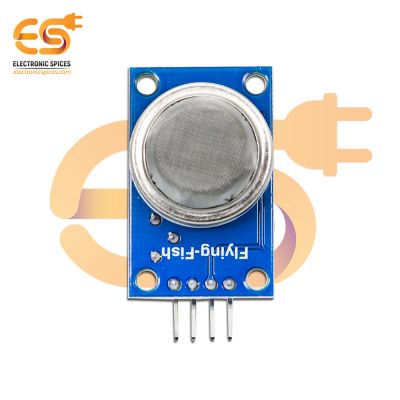

MQ-135 Air quality and Gas detection sensor module

Specifications:-

1. Wide detecting scope
2. Fast response and High sensitivity
3. Stable and long life
4. Operating voltage : 3V to 5V
5. Detect/Measure NH3, NOx, alcohol, Benzene, smoke, CO2, etc.

DC 3.3V-5v Joystick Sensor Module PCB Breakout Game Controller

Specifications:-

• Item type: joystick sensor
• Input voltage range: dc 3.3v to 5v
• Long life
• Stable performance.
• Highly reliable and compact sized.
• The way to digital output.

PH 3 in 1 Soil Moisture Sensor Meter

Specification:-

• Measurement Functions: Soil moisture, soil pH, light intensity
• Display Type: Analog dial
• Power Source: No batteries required
• Material: Durable plastic housing with metal probes
• Dimensions: Compact and lightweight for portability
